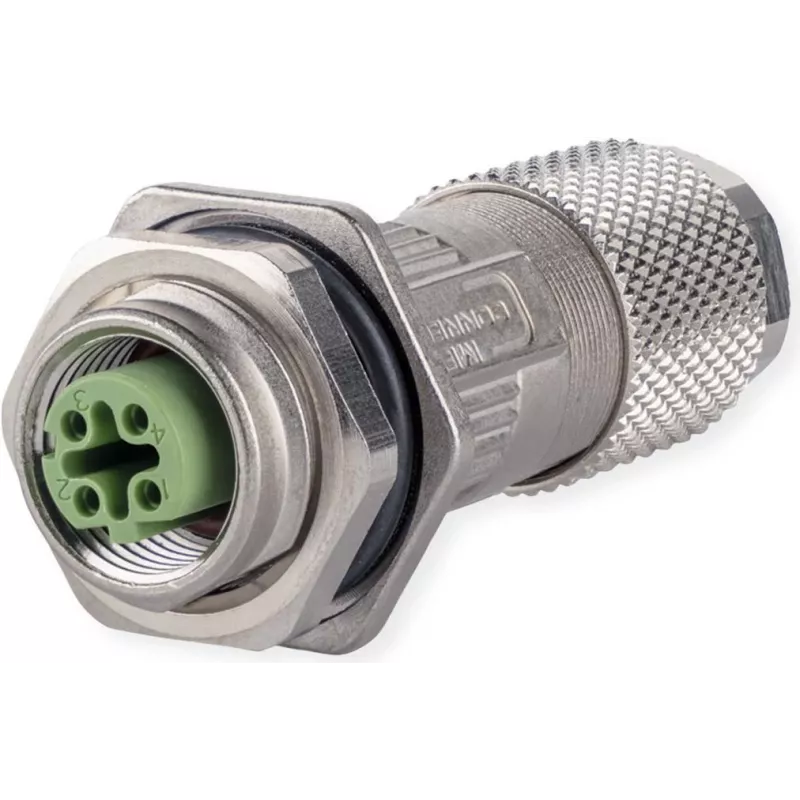

METZ CONNECT M12 Socket D-coded IP67 Field-wireable with Flange, Female, 4-Pin, A-Coded

The METZ CONNECT MMF881A115-0001 is a high-quality M12 socket designed for demanding industrial environments. This female connector features A-coding, 4 positions, and a robust zinc die-cast housing with nickel plating, ensuring reliable performance and durability. With IP67 protection when mated, it is ideal for applications requiring resistance to dust and water ingress. The field-wireable design with solder termination allows for easy on-site installation, while the flange mounting provides secure panel attachment.

Advantages

This M12 socket offers exceptional reliability and ease of use. Its field-wireable capability reduces installation time and complexity, and the IP67 rating ensures operation in harsh conditions. The gold-plated contacts guarantee low contact resistance and long-term signal integrity.

Suitable for

• Industrial automation and control systems
• Sensor and actuator connections
• Data transmission in factory environments
• Applications requiring IP67 protection

Key specifications

• Connector Type: M12
• Gender: Female
• Number of Positions: 4
• Coding: A-Coded
• Mounting Type: Front Panel Mount
• Termination Style: Solder
• Current Rating: 4 A
• Voltage Rating: 250 V
• IP Rating: IP67 (when mated)
• Housing Material: Zinc Die-Cast, Nickel-Plated
• Contact Material: Copper Alloy
• Contact Plating: Gold
• Operating Temperature Range: -40 °C to +85 °C
• Insulation Resistance: > 10^8 Ω
• Contact Resistance: < 8 mΩ
• Thread Size: M12 x 1
• Connection Orientation: Straight
• Shielding: Unshielded
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with matching M12 A-coded plugs and ensure proper mating to achieve IP67 protection. Suitable for use with standard M12 cables and connectors.
