METZ CONNECT Cat.6A S/FTP Patch Cable RJ45 to RJ45, 10GBase-T, 0.5m, Grey, LSZH, Gold Contacts 1308455088-E

Engineered for 10 Gigabit Ethernet, this METZ CONNECT patch cable delivers a full 500 MHz bandwidth with S/FTP shielding to eliminate crosstalk and EMI. Gold-plated contacts ensure a reliable, corrosion-resistant connection for demanding network environments.

Overview

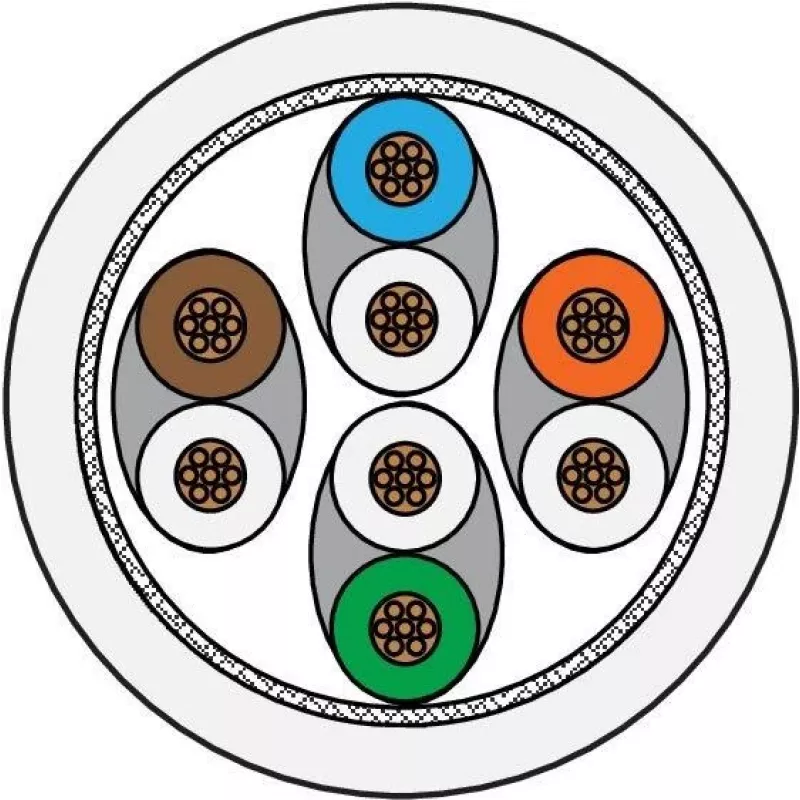

The METZ CONNECT Cat.6A patch cable is a high-performance networking solution designed for 10GBase-T applications. It features S/FTP (PiMF) construction, where each twisted pair is individually foil-shielded and the entire bundle is braid-shielded, providing superior protection against alien crosstalk and electromagnetic interference. The cable is built with stranded 26 AWG copper conductors for flexibility and durability, and it is jacketed in LSZH (Low Smoke Zero Halogen) material for enhanced fire safety. With a length of 0.5 meters, it is ideal for short connections in data centers, server rooms, or high-density patch panels. The connectors are RJ45 (8P8C) male on both ends, with 50µ" gold-plated contacts that ensure low contact resistance and long-term reliability. The cable is wired to TIA/EIA 568B standard and supports Power over Ethernet up to 4PPoE (PoE++), making it suitable for powering devices such as access points, IP cameras, and VoIP phones.

What stands out

• 10 Gbps data transfer rate with 500 MHz bandwidth for high-speed networking.
• S/FTP shielding (PiMF) for maximum protection against interference.
• Gold-plated contacts (50µ") for superior conductivity and corrosion resistance.
• LSZH jacket for low smoke and zero halogen emissions in fire conditions.
• Supports PoE, PoE+, and 4PPoE (PoE++) for powering network devices.
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Technical details

• Cable type: Cat.6A (Class EA) patch cable
• Shielding: S/FTP (PiMF)
• Data transfer rate: 10 Gbit/s (10GBase-T)
• Bandwidth: 500 MHz
• Connectors: RJ45 (8P8C) male to male
• Contact plating: Gold (50µ")
• Cable length: 0.5 m
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable colour: Grey

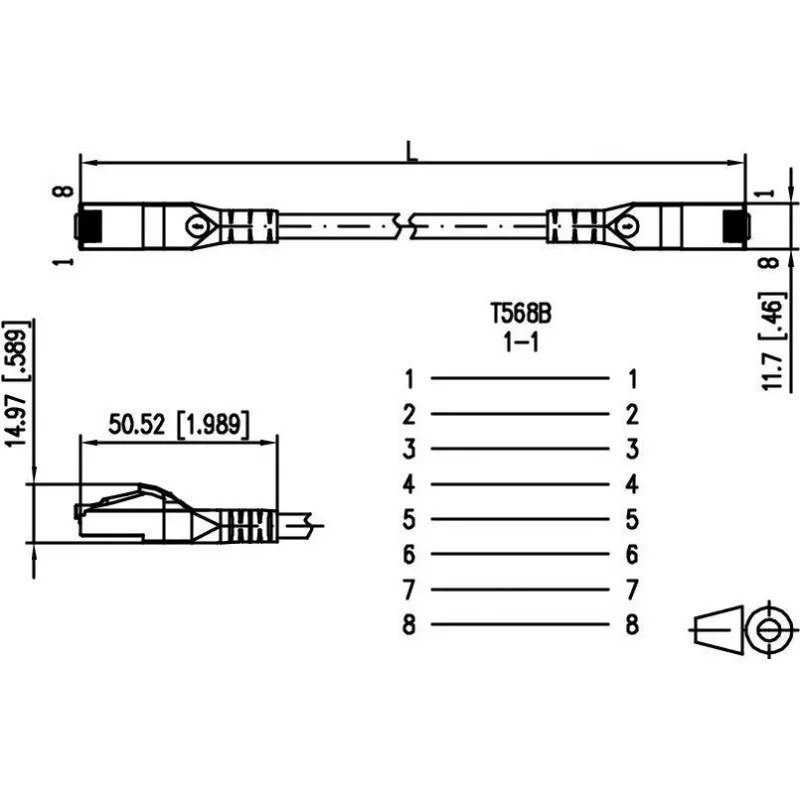

• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE (PoE++)
• Flame retardancy: IEC 60332-1
• Application: Ethernet, LAN, Network

Our verdict

For professionals who demand reliable 10G performance in a compact form, the METZ CONNECT Cat.6A S/FTP patch cable is an excellent choice. Its robust shielding, gold contacts, and LSZH jacket make it a safe and durable option for modern high-speed networks.
