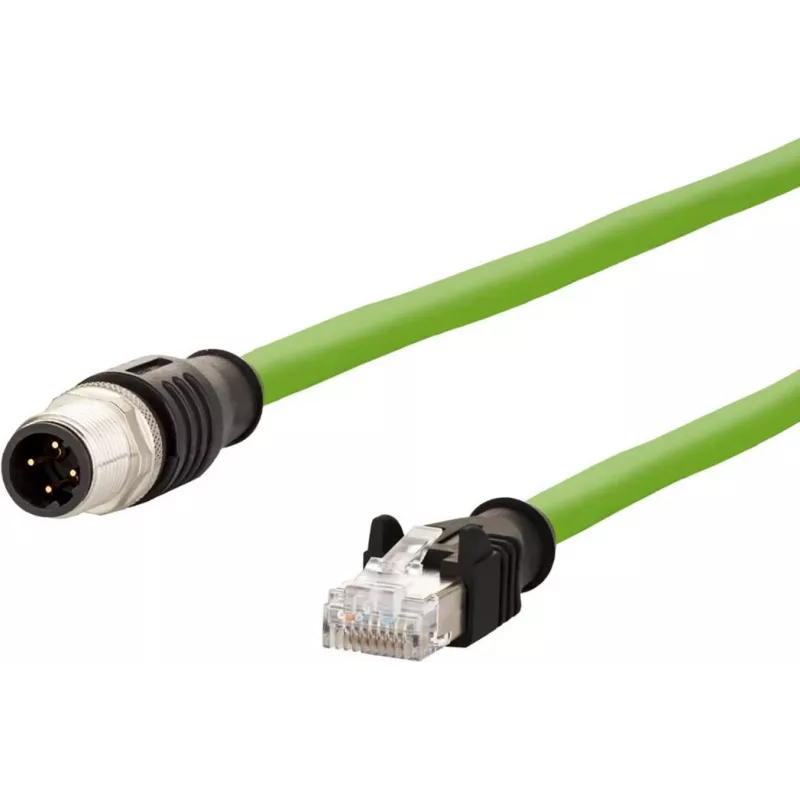

METZ CONNECT 142M1D15100 M12 to RJ45 Industrial Ethernet Cable, D-Coded, 4-Pole, AWG 22, 10m, Green

The METZ CONNECT 142M1D15100 is a high-quality industrial Ethernet connection cable designed for reliable data transmission in demanding environments. This cable features a 4-pole M12 D-coded connector on one end and an RJ45 connector on the other, making it ideal for connecting industrial devices to network infrastructure. With a length of 10 meters and AWG 22 stranded copper conductors, it supports Fast Ethernet (10/100 Mbit/s) and is shielded with S/FTP (PiMF) for excellent electromagnetic compatibility. The PUR jacket is halogen-free, flame retardant, and offers IP67 protection on the M12 side when mated, ensuring durability in harsh conditions.

Advantages

This cable provides robust connectivity for industrial Ethernet applications, featuring D-coding for Profinet and other fieldbus systems. The high-quality shielding minimizes interference, while the PUR jacket resists oils, chemicals, and abrasion. Easy to install and reliable in extreme temperatures from -30°C to +80°C.

Suitable for

• Industrial Ethernet networks (Profinet, EtherNet/IP)
• Connecting sensors, actuators, and field devices
• Factory automation and process control
• Machine building and robotics

Key specifications

• Connector 1: M12 plug, D-coded, 4-pole
• Connector 2: RJ45 plug
• Length: 10 m
• Wire gauge: AWG 22
• Shielding: S/FTP (PiMF)
• Jacket material: PUR (polyurethane), green
• Data rate: 10/100 Mbit/s
• Operating temperature: -30°C to +80°C
• IP rating: IP67 (M12 mated), IP20 (RJ45)
• Halogen-free, flame retardant (IEC 60332-1-2)

Recommendations

For optimal performance, ensure the M12 connector is properly mated to achieve IP67 protection. This cable is suitable for fixed or flexible installation in cable trays or conduits. Pair with compatible M12 D-coded receptacles and RJ45 ports.
