METZ CONNECT 13084U7500-E Ultraflex500 RJ45 Patch Cable Cat.6A S/FTP AWG26 Black 7.5m

The METZ CONNECT 13084U7500-E Ultraflex500 is a high-performance RJ45 patch cable designed for demanding network environments. With Cat.6A (Class EA) performance and S/FTP shielding, it ensures reliable data transmission up to 10 Gigabit Ethernet over a length of 7.5 meters. The cable features AWG26 stranded copper conductors, a snagless boot, and a black LSZH jacket, making it ideal for data centers, VoIP applications, and PoE deployments.

Advantages

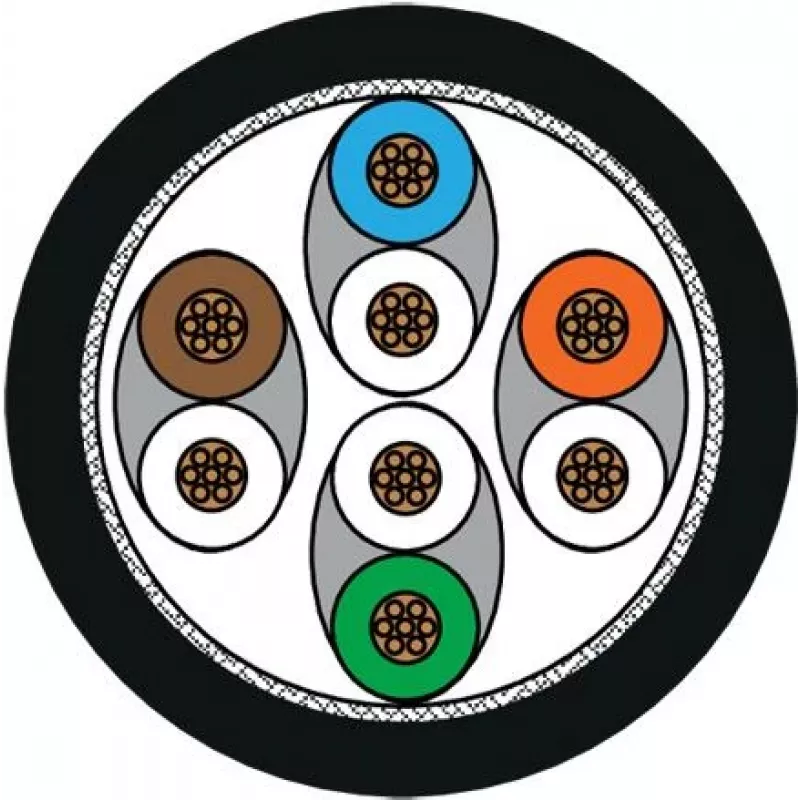

This patch cable offers exceptional signal integrity and noise protection thanks to its S/FTP (PiMF) shielding, which pairs individual conductors in metal foil and adds an overall braid shield. The snagless boot prevents connector damage during installation, while the LSZH jacket ensures safety in enclosed spaces by emitting low smoke and zero halogen in case of fire. It supports PoE, PoE+, and 4PPoE (PoE++) for powering devices like IP cameras and wireless access points.

Suitable for

• Ethernet networks requiring 10GBASE-T performance
• VoIP phone systems
• Data center cabling
• Power over Ethernet (PoE) applications
• High-frequency data transmission up to 500 MHz

Key specifications

• Product Type: Patch Cable
• Cable Standard: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Connectors: RJ45 Male to RJ45 Male
• Length: 7.5 m
• Conductor Gauge: AWG26
• Conductor Type: Stranded Copper
• Data Transfer Rate: Up to 10 Gbps
• Frequency Bandwidth: 500 MHz
• Color: Black
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: Yes (PoE, PoE+, 4PPoE/PoE++)
• Boot Type: Snagless / Anti-bend boot
• Impedance: 100 Ohm
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2 (Cat.6A)

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat.6A switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
