METZ CONNECT 1308457501-E Cat.6A Patch Cable (2x RJ45 Plug, AWG 26/7, LSOH, 7.5m) - Orange/Black

The METZ CONNECT 1308457501-E is a high-performance Cat.6A patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 7.5 meters, it features two RJ45 male connectors, stranded bare copper conductors (AWG 26/7), and S/FTP shielding for excellent signal integrity and noise protection. The LSOH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, making it ideal for data centers, office networks, and industrial environments.

Advantages

This patch cable delivers up to 500 MHz bandwidth and supports PoE (Power over Ethernet) including PoE+, 4PPoE Type 3 & 4. Its robust S/FTP construction minimizes crosstalk and electromagnetic interference, ensuring stable data transmission. The orange/black color scheme aids in easy identification and cable management.

Suitable for

• Data center cabling infrastructure
• Enterprise network connections
• Industrial Ethernet applications
• 10GBASE-T networks requiring Cat.6A performance

Key specifications

• Cable Type: Patch Cable
• Performance Category: Cat.6A (Class EA)
• Connector Type: 2x RJ45 Male
• Conductor Gauge: AWG 26 (stranded, 7-wire)

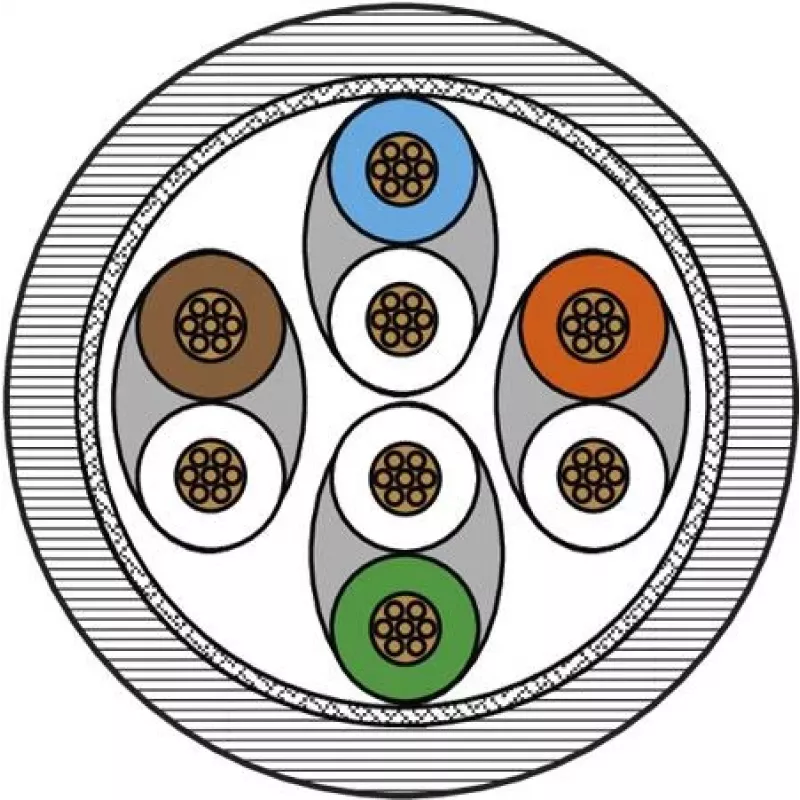

• Shielding: S/FTP (PiMF)
• Jacket Material: LSOH
• Jacket Color: Orange/Black
• Cable Length: 7.5 meters
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gbps
• Frequency Bandwidth: 500 MHz
• PoE Support: Yes (PoE, PoE+, 4PPoE)
• Flame Retardancy: IEC 60332-1-2
• Halogen Free: Yes
• Low Smoke Emission: Yes
• Conductor Material: Bare Copper
• Operating Temperature: -20°C to +60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with Cat.6A compatible switches and patch panels. Ensure proper cable routing to avoid kinking or sharp bends. This cable is suitable for permanent installations in structured cabling systems.
