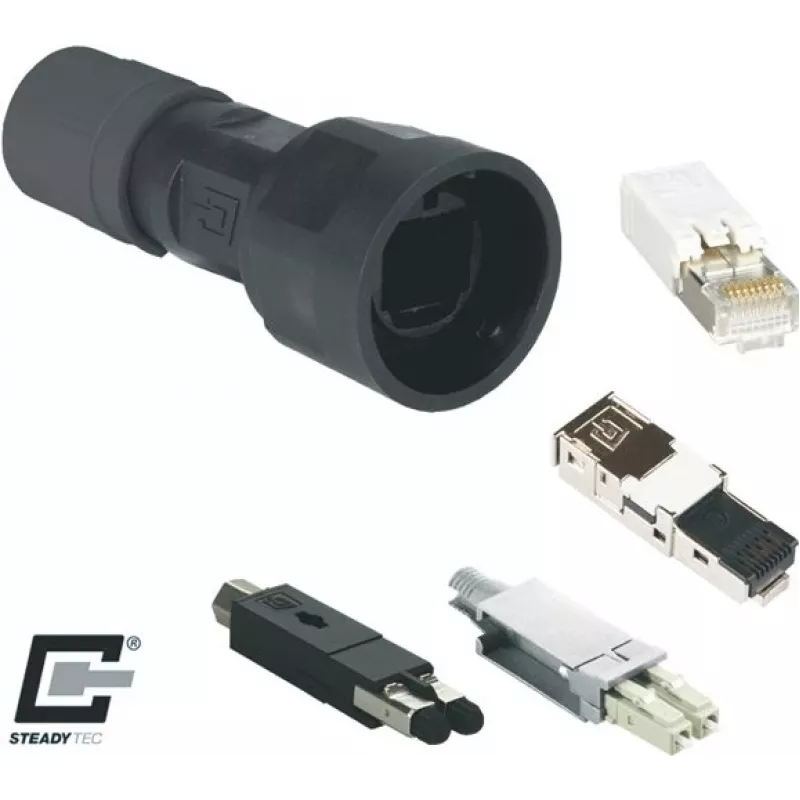

METZ BTR Industrial IP67 V1 Plug Housing, Black 1401015002KE

IP67-rated protection in a compact V1 plug housing — built for industrial environments where dust and moisture are constant threats. The METZ BTR Industrial V1 housing seals out the elements while holding a single BTR Netcom V1 module insert, such as RJ45, USB, or fiber optic, with a secure screw-locking mechanism.

Overview

This plug housing is the rugged outer shell for METZ BTR Netcom V1 connector modules. Made from black polyamide (PA) with a UL94 V-0 flammability rating and halogen-free construction, it withstands harsh conditions and supports cable diameters from 4 to 8 mm via an M20 cable gland. The housing is unshielded and cable-mountable, designed for reliable performance across -20°C to +70°C.

What stands out

• IP67 protection when mated — dust-tight and protected against temporary immersion.
• Compatible with all BTR Netcom V1 module inserts for flexible connectivity.
• Durable polyamide housing with screw locking for vibration-resistant connections.
• Supports over 750 mating cycles for long service life.
• Halogen-free and RoHS compliant for safer industrial use.

Technical details

• Product type: Plug housing
• Series: V1
• IP rating: IP67 (mated)
• Housing material: Polyamide (PA)
• Colour: Black
• Mounting type: Cable mount
• Cable gland thread: M20
• Max cable diameter: 4–8 mm
• Locking mechanism: Screw locking
• Shielding: Unshielded
• Flammability rating: UL94 V-0
• RoHS compliant: Yes
• Halogen-free: Yes
• Number of modules supported: 1
• Mating cycles: >750
• Operating temperature: -20°C to +70°C

Our verdict

A robust, future-proof housing for industrial Ethernet and data connections. Its IP67 sealing and wide temperature range make it a dependable choice for factory floors, outdoor installations, and other demanding environments.
