Mesh Wi‑Fi system TENDA EX3-3, 3-pack, Dual-band 2.4/5 GHz, Wi‑Fi 6, up to 1201+300 Mbps, 2 internal antennas, WPA3

TENDA EX3-3 is a three-piece mesh Wi‑Fi system that provides whole-home wireless coverage with Dual-band 2.4 GHz and 5 GHz support and Wi‑Fi 6 (802.11ax). It delivers up to 1201 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band, supports MU‑MIMO and MIMO, and includes WPA3 security, parental controls with weekly/monthly reports, and compatibility with Amazon Alexa. Each unit features two internal antennas, system LED indicators, a reset button and a DC‑in power connector powered by a 12 V / 1 A AC adapter.

Advantages

The mesh design ensures seamless roaming and extended coverage across multiple rooms. Dual‑band operation with Wi‑Fi 6 improves capacity and reduces congestion for simultaneous devices. Built‑in parental controls and Alexa integration add management and voice convenience, while WPA3 provides an up‑to‑date security standard. Compact white units with internal antennas fit unobtrusively into home environments.

Suitable for

• Home whole‑house Wi‑Fi coverage
• Multi‑device households and streaming
• Homes needing parental controls and activity reports
• Users who want voice control via Amazon Alexa

Key specifications

• Wi‑Fi standard: Wi‑Fi 6 (802.11ax), backward compatible with 802.11n
• Frequency bands: Dual‑band 2.4 GHz and 5 GHz
• Maximum data rate: 5 GHz up to 1201 Mbps, 2.4 GHz up to 300 Mbps
• MU‑MIMO and MIMO support
• Security: WPA3
• Networking features: PPPoE, DDNS, DHCP client/server, static and dynamic IP support

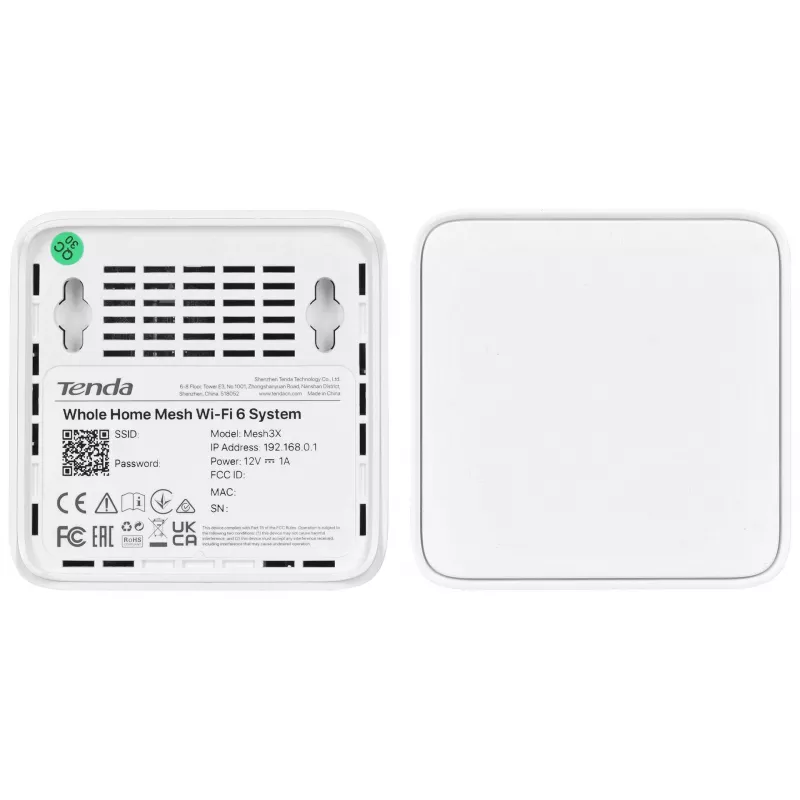

• Antennas: 2 internal antennas per unit
• Physical dimensions (per unit): 90 × 93 × 90 mm (W × H × D)
• Operating temperature: 0 to 40 °C; storage temperature: -40 to 70 °C
• Operating humidity: 10–90% RH; storage humidity: 5–90% RH
• Power input (adapter): 100–240 V, 50/60 Hz; adapter output: 12 V ⎓ 1 A
• Ports: DC‑in jack, Ethernet WAN, 1 × RJ‑45 LAN port

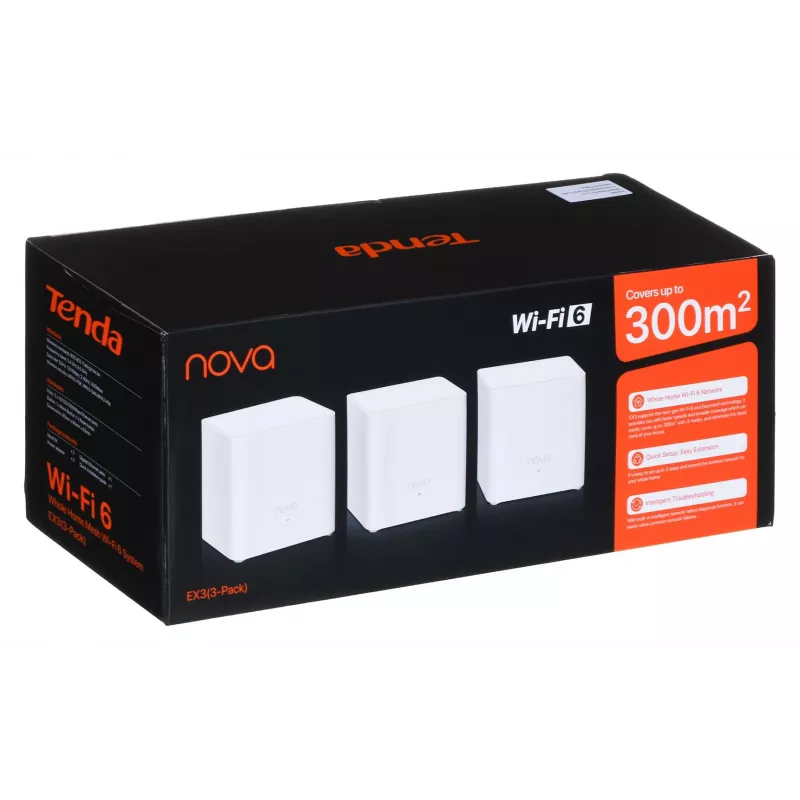

• Package contents: 3 units and quick installation guide

How to use

Place the three TENDA EX3 units around your home to create a mesh network with overlapping coverage. Connect one unit to your modem via the Ethernet WAN port and plug in the AC adapter (12 V / 1 A). Power on each unit and follow the quick installation guide or the vendor app to complete initial setup, configure SSID and password, enable WPA3 security, and set parental control reporting intervals. Use the reset button to restore factory settings if needed.

Recommendations

Install primary unit near the modem and distribute satellite units on different floors or distant rooms for optimal coverage; avoid placing units inside metal cabinets or too close to large appliances to reduce interference.
