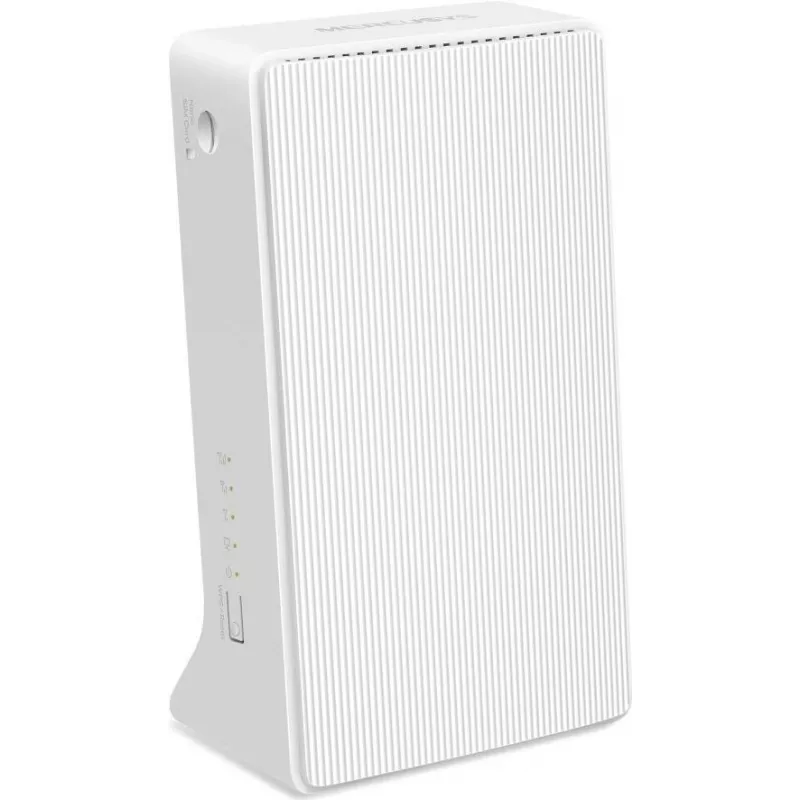

Mercusys MB230-4G AC1200 4G LTE Dual-Band Wireless Router (EU)

The Mercusys MB230-4G combines a Cat4 LTE modem with AC1200 dual-band Wi-Fi, so you can get online via a SIM card without a fixed-line connection. Unlike basic 4G routers, it delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with two detachable external LTE antennas for better reception.

Highlights

• Cat4 LTE with up to 150 Mbps download and 50 Mbps upload
• Dual-band AC1200 Wi-Fi for smooth streaming and browsing
• Two detachable external LTE antennas for flexible placement
• One 10/100 Mbps LAN/WAN port and one LAN port for wired devices
• Supports 3G/4G Router and Wireless Router modes
• Parental controls, guest network, and QoS for network management

In daily use

Insert a micro SIM, connect the power adapter, and the MB230-4G is ready to share a mobile internet connection. The dual-band Wi-Fi reduces interference, while the LAN/WAN port allows use as a traditional wireless router when a wired connection is available. The WPS/Wi-Fi button simplifies connecting devices, and the reset button restores factory settings if needed.

Full specifications

• Wi-Fi standards: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• Wi-Fi speeds: 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
• LTE category: Cat4 (150 Mbps down / 50 Mbps up)
• LTE bands: FDD-LTE B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40/B41
• Antennas: 2 detachable external LTE antennas, 2 internal Wi-Fi antennas
• Ports: 1x 10/100 Mbps LAN/WAN, 1x 10/100 Mbps LAN, 1x micro SIM slot
• Security: WPA-PSK/WPA2-PSK
• Network protocols: IPv4, IPv6
• Power supply: 9V/0.85A external adapter
• Operating temperature: 0°C to 40°C
• Certifications: CE, RoHS

Final note

The MB230-4G is a practical choice for homes or small offices needing reliable mobile broadband with the flexibility of dual-band Wi-Fi.
