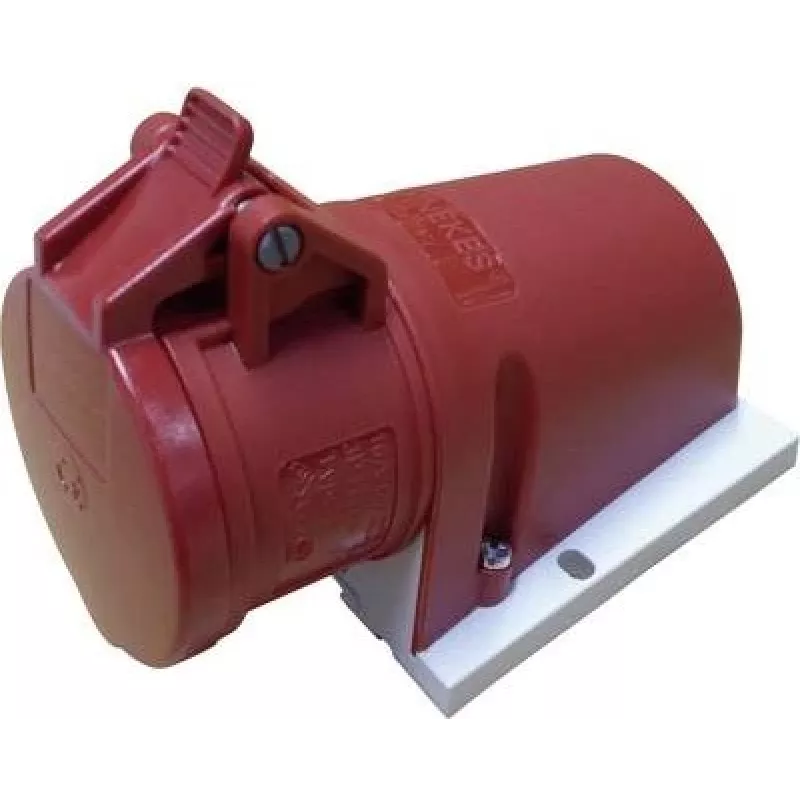

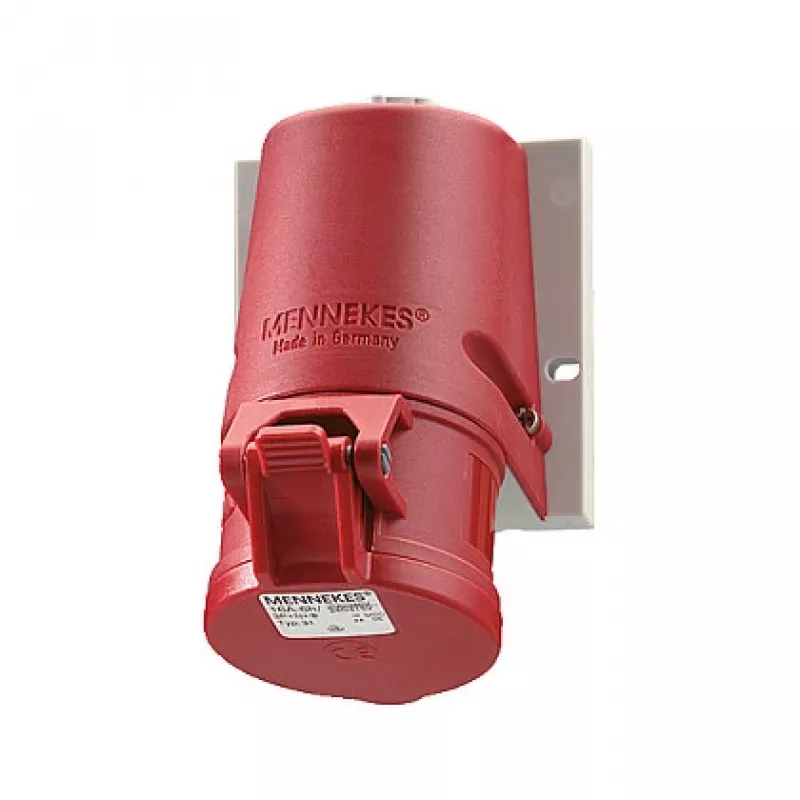

MENNEKES CEE Wall-Mounted Socket 16 A 5-Pole 6h 400 V IP44 TwinCONTACT

MENNEKES CEE Wall-Mounted Socket 16 A 5-Pole 6h 400 V IP44 TwinCONTACT
MENNEKES CEE Wall-Mounted Socket 16 A 5-Pole 6h 400 V IP44 TwinCONTACT
MENNEKES CEE Wall-Mounted Socket 16 A 5-Pole 6h 400 V IP44 TwinCONTACT
MENNEKES CEE Wall-Mounted Socket 16 A 5-Pole 6h 400 V IP44 TwinCONTACT
R1,425
Industrial and outdoor power connections demand a socket that can handle three-phase loads while resisting moisture and mechanical stress. The MENNEKES CEE wall-mounted socket provides a reliable 16 A, 5-pole connection point for 400 V equipment, with a 6h clock position to prevent mismating with ot... Read More
Stock 50 Code 3529098 Brand MENNEKES Model 31 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Industrial and outdoor power connections demand a socket that can handle three-phase loads while resisting moisture and mechanical stress. The MENNEKES CEE wall-mounted socket provides a reliable 16 A, 5-pole connection point for 400 V equipment, with a 6h clock position to prevent mismating with other voltages.

Who is it for

Electricians, facility managers, and equipment operators who need a durable, splash-proof power outlet for workshops, construction sites, marinas, or agricultural buildings. It suits any application where three-phase power must be safely accessible from a wall or panel.

Main features

  • 16 A rated current and 5 poles (3P+N+PE) for three-phase 380–415 V AC systems.
  • 6h earth pin position ensures compatibility only with matching 400 V plugs.
  • IP44 splash-proof housing protects against water spray from any direction.
  • TwinCONTACT technology provides two independent contact points for secure, low-resistance connections.
  • Screw terminals allow fast, tool-based wiring with solid or stranded conductors.
  • Wall-mount design with cable entry options from top, bottom, or rear for flexible installation.
  • Robust polyamide (PA6) housing in grey/red withstands impact and UV exposure.

Specifications

  • Current rating: 16 A
  • Number of poles: 5 (3P+N+PE)
  • Nominal voltage: 380–415 V AC
  • Frequency: 50/60 Hz
  • Clock position: 6h
  • IP protection class: IP44
  • Connection technology: Screw terminals
  • Mounting type: Wall-mounted, surface-mounted
  • Housing material: Polyamide (PA6)
  • Colour: Grey / Red
  • Cable entry: Gland / knock-out (top/bottom/rear)
  • Operating temperature: -25°C to +40°C
  • Contact material: Brass, nickel-plated
  • Flammability rating: UL94 V2

Tips

When wiring, ensure the cable gland matches the cable diameter to maintain the IP44 rating. Use a torque screwdriver to tighten terminals to the manufacturer's specified torque. For outdoor installations, mount the socket with the cable entry facing downward to prevent water ingress.

Specifications
Brand
MENNEKES
Category
CEE Wall-Mounted Socket
Connector contacts plating
Nickel-plated
EAN
4015394202462
Input current
16 A
Input voltage
380-415 V AC
Installation type
Surface-mounted
Model
31
Mounting type
Wall-mounted
MPN
31
Product colour
Grey
Socket type
General Socket Outlet
Sockets quantity
1 socket
Weight
2.57 kg
