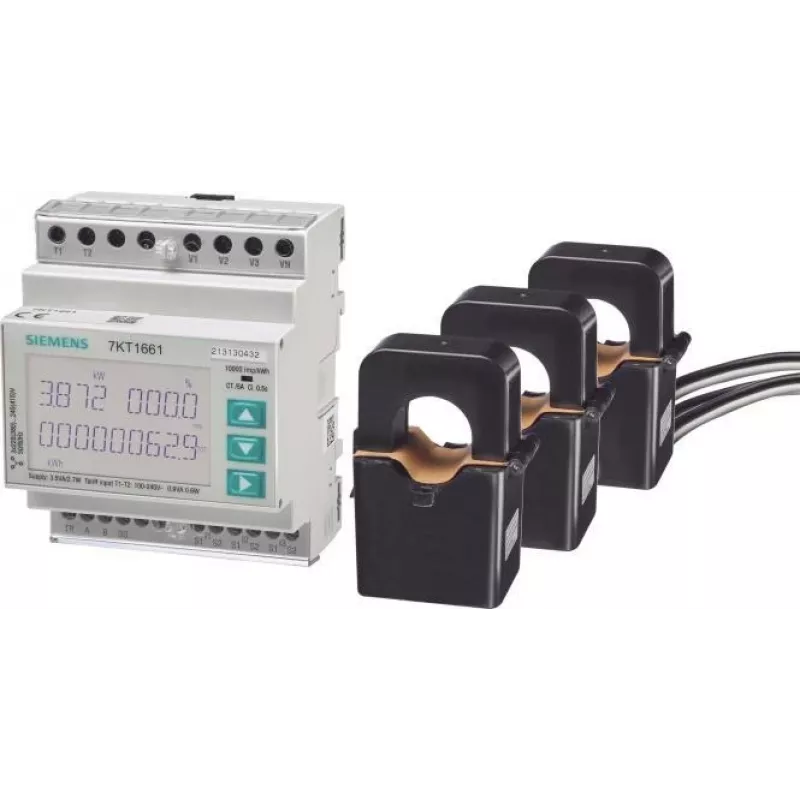

MENNEKES 18626 Retrofit Kit for DIN Rail Energy Meter

This retrofit kit equips MENNEKES AMTRON wallboxes with a certified 3-phase energy meter for precise consumption tracking during EV charging. The meter mounts on a DIN rail and communicates via Modbus RTU, enabling seamless integration into energy management systems.

Advantages

MID-compliant Class B accuracy ensures billing-grade measurement of active energy. The kit includes all necessary components—meter, connection cables, mounting hardware, and instructions—for straightforward installation by a qualified electrician. The LCD display provides clear, local readouts of energy data.

Suitable for

• MENNEKES AMTRON Compact 2.0s wallboxes
• MENNEKES AMTRON Xtra 2.0s wallboxes
• MENNEKES AMTRON Premium 2.0s wallboxes
• Retrofitting existing installations for energy monitoring

Key specifications

• Meter type: 3-phase digital energy meter
• Measurement: Active energy (kWh)
• Maximum current: 63 A
• Nominal voltage: 230/400 V AC
• Frequency: 50 Hz
• Accuracy class: B (EN 50470-1/3)
• Communication: Modbus RTU (RS485)
• Mounting: DIN rail (4 TE width)
• Protection class: IP20
• Operating temperature: -25°C to +55°C

Recommendations

Ideal for EV charging operators and facility managers who require transparent energy billing and load management. Verify compatibility with your AMTRON model before ordering.
