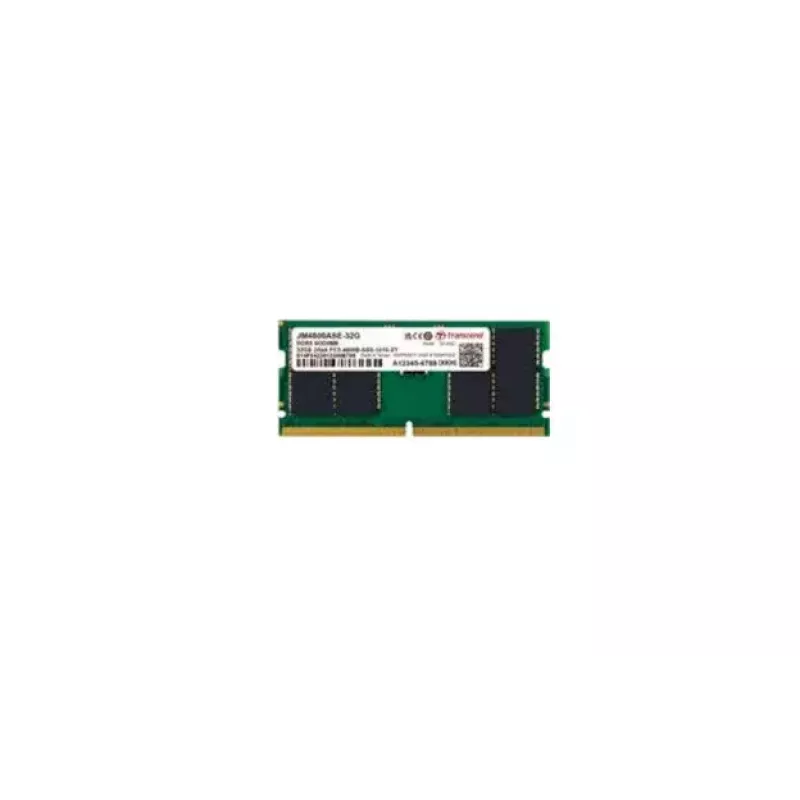

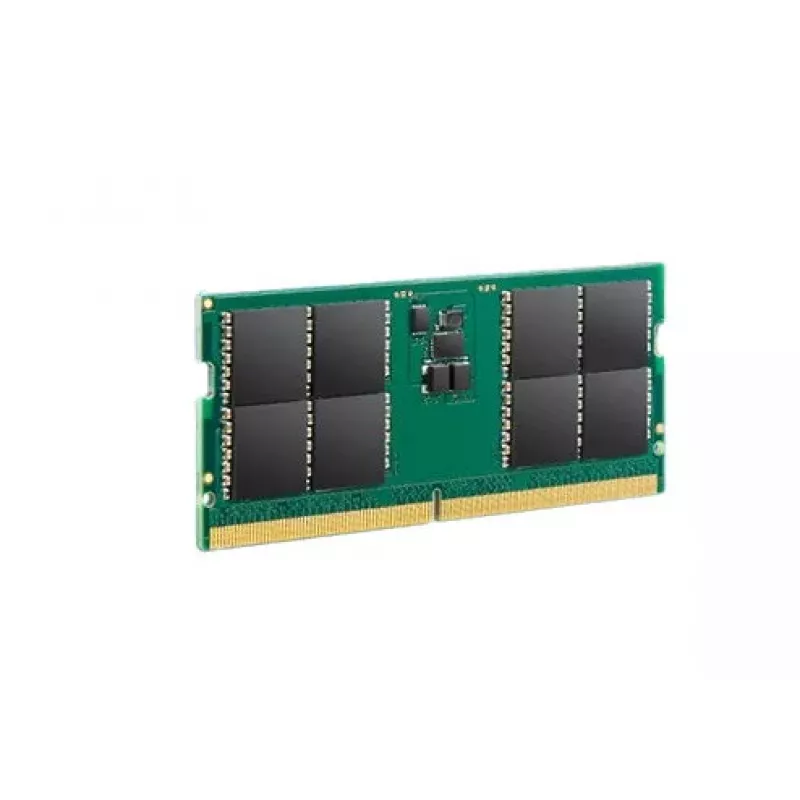

Memory module Transcend DDR5 32 GB 5600 MHz

The Transcend JetRam JM5600ASE-32G is a 32 GB DDR5 SO‑DIMM memory module for laptops, compliant with JEDEC standards. Built with ETT‑grade, brand‑name DRAM chips that passed Transcend's screening and environmental tests, this module operates at 5600 MT/s with dual independent 32‑bit channels, supports on‑die ECC for error detection and correction, and uses a 1.1 V working voltage with integrated PMIC for improved power efficiency and signal stability.

Advantages

This Transcend DDR5 32 GB 5600 MHz module offers higher bandwidth through dual 32‑bit channels and a high transfer rate of 5600 MT/s. On‑die ECC improves data integrity and system stability, while the low 1.1 V operating voltage and onboard PMIC help reduce power consumption and minimize signal interruptions. The SO‑DIMM 262‑pin form factor is compatible with many modern laptops requiring DDR5 memory.

Suitable for

Key specifications

How to use

Power off the laptop and disconnect any power sources. Open the laptop access panel according to the manufacturer’s instructions, locate the SO‑DIMM slot, and carefully remove any existing memory if required. Align the notch of the Transcend DDR5 SO‑DIMM with the slot, insert at the correct angle, and press down until the module clicks into the retention clips. Reassemble the laptop, reconnect power, and power on. Check system BIOS/UEFI or the operating system to confirm the new memory is recognized and running at the expected speed.

Recommendations

For best results, install memory modules in matched pairs when supported by the system, update the laptop BIOS/UEFI to the latest version for DDR5 compatibility, and consult the laptop manual for supported memory configurations and maximum capacity.
