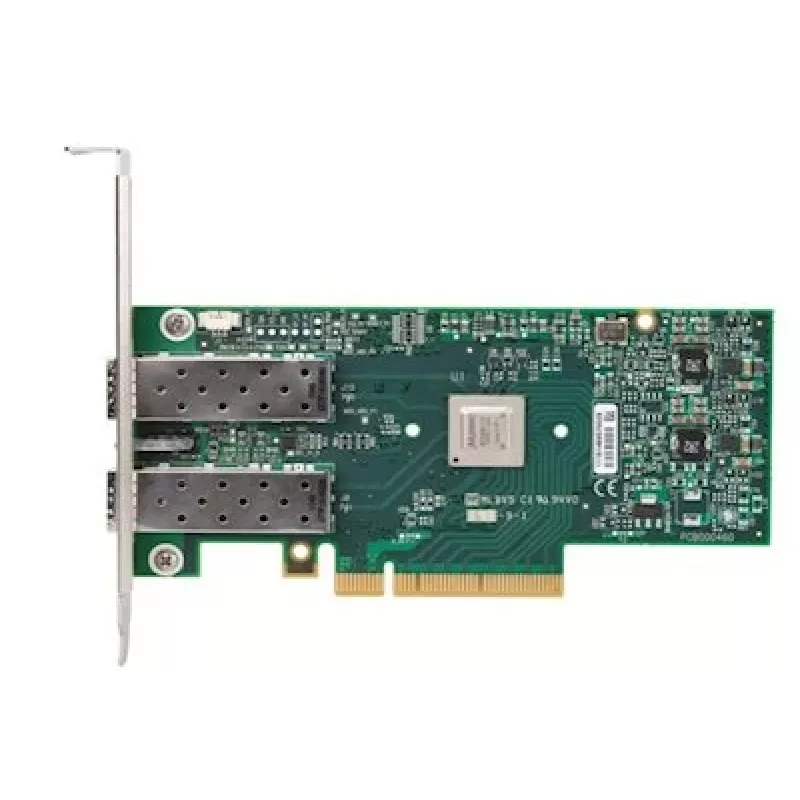

Mellanox ConnectX-3 10GbE Adapter

Mellanox ConnectX-3 10GbE Adapter
Mellanox ConnectX-3 10GbE Adapter
R2,064
Mellanox ConnectX-3 10GbE Adapter — Genuine MELLANOX product supplied by DistriNode.Available with live stock, verified product data, official manufacturer warranty and B2B pricing — order online at DistriNode.... Read More
Stock Out Of StockNo Stock Code 2379755 Brand MELLANOX Model 00D9690 Warranty 2 Years

Shipping & Returns

Mellanox ConnectX-3 10GbE Adapter — Genuine MELLANOX product supplied by DistriNode.

Available with live stock, verified product data, official manufacturer warranty and B2B pricing — order online at DistriNode.

Key Highlights
  • Two 10 Gigabit Ethernet ports
  • Low-profile form factor adapter with 2U bracket (3U bracket available for CTO orders)
  • PCI Express 3.0 x8 host-interface (PCIe 2.0 and 1.1 compatible)
  • SR-IOV support; 16 virtual functions supported by KVM and Hyper-V (OS dependant) up to a maximum of 127 virtual functions supported by the adapter
  • Enables Low Latency RDMA over Ethernet (supported with both non-virtualized and SR-IOV enabled virtualized servers) -- latency as low as 1 µs
  • TCP/UDP/IP stateless offload in hardware
  • Traffic steering across multiple cores
  • Intelligent interrupt coalescence
  • Industry-leading throughput and latency performance
  • Software compatible with standard TCP/UDP/IP stacks
  • Microsoft VMQ / VMware NetQueue support
  • Legacy and UEFI PXE network boot support
  • Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
  • The Mellanox ConnectX-3 40GbE / FDR IB VPI Adapter has the following features:
  • Two QSFP ports supporting FDR-14 InfiniBand or 40 Gb Ethernet
  • Support for InfiniBand FDR speeds of up to 56 Gbps (auto-negotiation FDR-10, DDR and SDR)
  • Support for Virtual Protocol Interconnect (VPI), which enables one adapter for both InfiniBand and 10/40 Gb Ethernet. Supports three configurations:
  • 2 ports InfiniBand
  • 2 ports Ethernet
  • 1 port InfiniBand and 1 port Ethernet
  • Enables Low Latency RDMA over 40Gb Ethernet (supported with both non-virtualized and SR-IOV enabled virtualed servers) -- latency as low as 1 µs
  • Sub 1 µs InfiniBand MPI ping latency
  • Support for QSFP to SFP+ for 10 GbE support
  • Legacy and UEFI PXE network boot support (Ethernet mode only)
  • Wired
  • PCI Express Fiber
  • 10000 Mbit/s
  • Internal
Specifications
Certification
EN55022 EN55024 EN60950-1 EN 61000-3-2 EN 61000-3-3 IEC 60950-1 FCC Part 15 Class A UL 60950-1 CSA C22.2 60950-1-07 VCCI NZ AS3548 / C-tick RRL for MIC (KCC) BSMI (EMC) IECS-003:2004 Issue 4
Compatible operating systems
Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE LINUX Enterprise Server 10 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 12 VMware vSphere 5.0 (ESXi)* VMware vSphere 5.1 (ESXi)* VMware vSphere 5.5 (ESXi)* VMware vSphere 6.0 (ESXi)*
Compatible products
x3100 M5, x3250 M5, x3500 M5, x3550 M5, x3650 M5, x3850 X6/x3950 X6, nx360 M5
Compliance certificates
RoHS
Connectivity technology
Wired
Fiber ports quantity
2
Flow control support
Yes
Host interface
PCI Express
Interface
Fiber
Internal
Yes
iSCSI support
Yes
Jumbo frames
9600
Jumbo frames support
Yes
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba
Operating altitude
0 - 2133 m
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 55 °C
PCI Card form factor
Full-height (low-profile)
Quantity per pack
1 pc(s)
VLAN tagging
Yes

Leaflet

Open Leaflet
