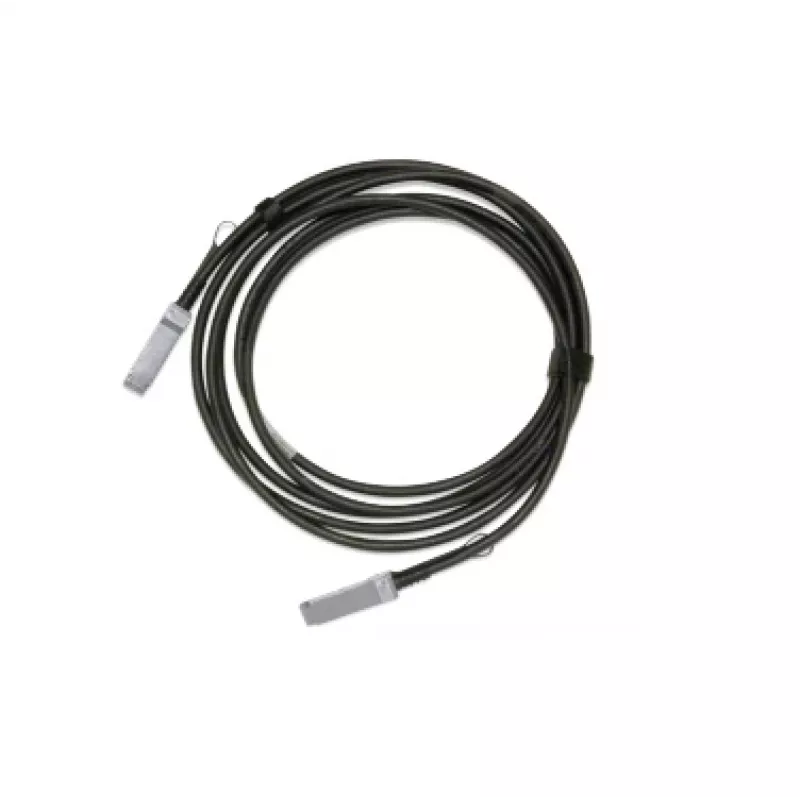

Mellanox 100GBase Direct Attach Cable - QSFP28 Male to QSFP28 Male - 1 m - 7.1 mm - Black - Passive

The Mellanox MCP1600-C001E30N is a high-performance 100GBase Direct Attach Copper (DAC) cable designed for reliable, low-latency connections in data centers and high-performance computing environments. This passive cable features QSFP28 male connectors on both ends, providing a cost-effective solution for short-range 100 Gigabit Ethernet links.

Advantages

This DAC cable offers superior signal integrity and low power consumption (<0.5W per end), making it an energy-efficient choice for dense network deployments. Its passive design ensures zero latency and no additional power requirements, while the durable PVC jacket and 30 AWG gauge provide flexibility and longevity.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Connecting Mellanox/NVIDIA Spectrum-2 SN3420 and SN3700C switches
• Any QSFP28 100GbE compatible device

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Connectors: QSFP28 Male to QSFP28 Male
• Length: 1 meter (3.3 feet)
• Cable Gauge: 30 AWG
• Cable Diameter: 7.1 mm
• Color: Black
• Jacket Material: PVC
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.5W per end
• Voltage: 3.3V
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with Mellanox/NVIDIA switches or other MSA-compliant QSFP28 devices. Ensure proper handling to avoid damage to connectors.
