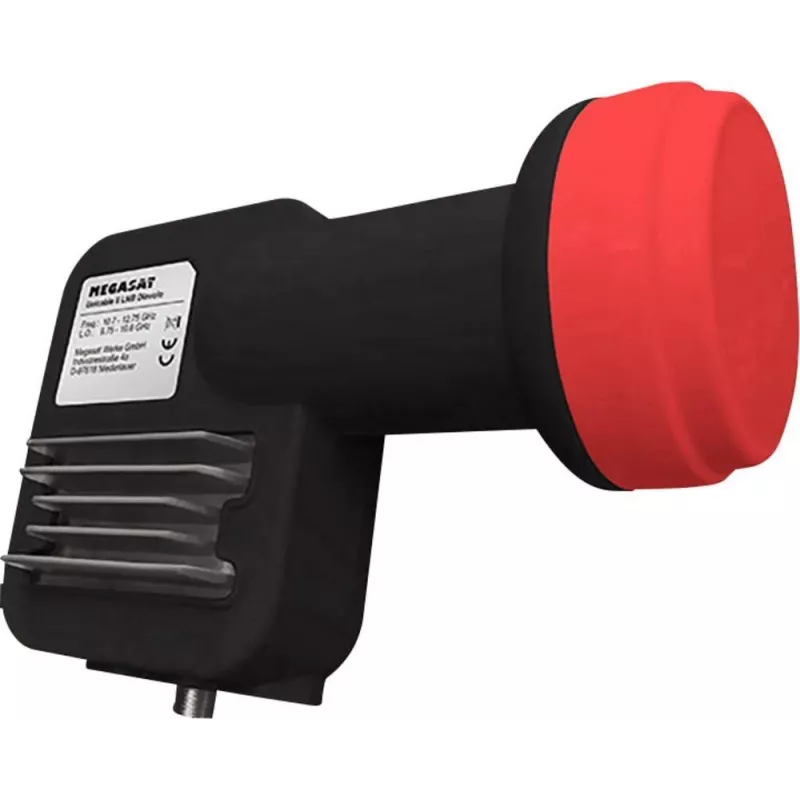

MegaSat Unicable-LNB II Diavolo, 40 mm Feed, Weather Protection, SCR/Unicable, 4 Participants

Traditional satellite distribution forces a separate coaxial cable from the LNB to every receiver, which becomes messy and expensive when you want multiple tuners or rooms. The MegaSat Unicable-LNB II Diavolo solves this by using Unicable technology: one cable carries all channels and user bands, so up to four receivers or tuners can share a single downlead without a multiswitch.

Who is it for

This LNB is ideal for households with multiple satellite receivers, PVRs with twin tuners, or apartments where only one cable is available. It suits DIY installers and professional technicians upgrading existing dishes to a cleaner, future-ready setup.

Main features

• Unicable I (EN50494) with 1 SCR output and 1 legacy output
• Supports up to 4 Unicable participants on a single cable
• 40 mm feed diameter fits standard satellite dishes
• Integrated pull-out weather protection shields the F-connector from rain and moisture
• Very low noise figure of 0.1 dB for excellent signal quality even in weak signal areas
• Wide input range 10.7–12.75 GHz covers all common Ku-band satellites
• Four fixed user bands: 1210, 1420, 1680, 2040 MHz
• DiSEqC 1.0 compatible for multi-satellite setups
• UV-resistant housing withstands harsh outdoor conditions

Specifications

• LNB type: Unicable I (SCR)
• Unicable outputs: 1
• Legacy outputs: 1
• Max Unicable participants: 4
• Feed diameter: 40 mm
• Noise figure: 0.1 dB (typ.)
• Input frequency range: 10.7 – 12.75 GHz
• Output frequency range (IF): 950 – 2150 MHz
• Conversion gain: 55 dB (typ.)
• SCR frequencies: 1210, 1420, 1680, 2040 MHz
• Polarization: Linear (H/V)
• Cross polarization isolation: > 20 dB
• DiSEqC: 1.0
• Power consumption: 120 mA (max.)
• Operating voltage: 12 – 20 V DC
• Connector: F-type
• Output impedance: 75 Ohm
• Operating temperature: -30 °C to +60 °C
• Housing material: UV-resistant plastic
• Weather protection: integrated pull-out cover

Tips

When connecting multiple receivers, assign each a unique user band in the receiver's Unicable settings. For best signal, align the dish precisely and ensure the LNB skew is set correctly for your location. The legacy output can feed a traditional receiver or meter simultaneously.
