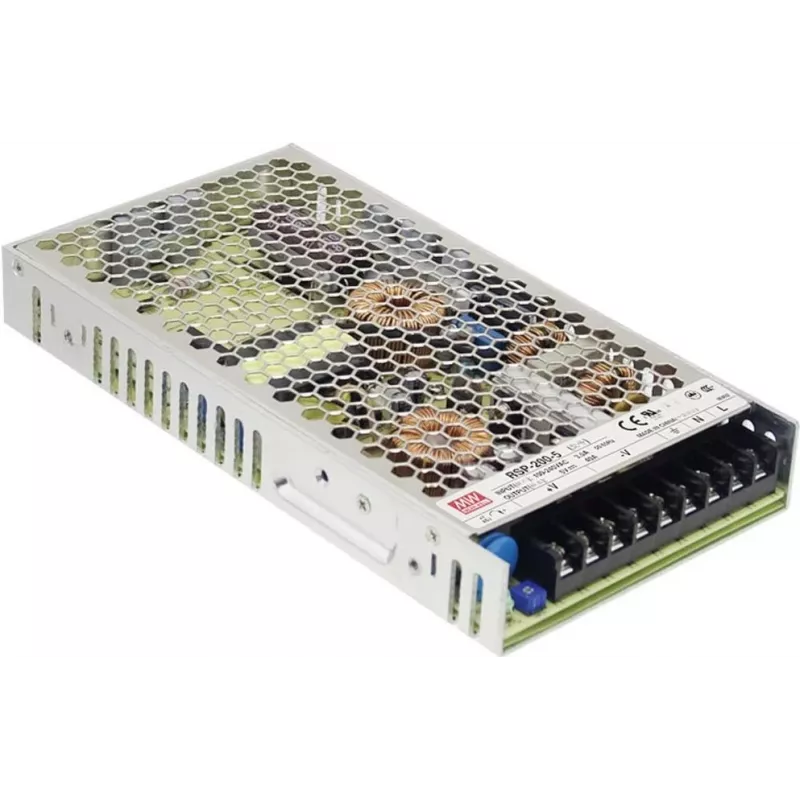

MEAN WELL RSP-200-48 201.6W 48V 1U Low Profile Enclosed Power Supply with Active PFC and Fan Cooling

Industrial and automation systems often demand a power source that combines high efficiency, compact dimensions, and unwavering reliability. The MEAN WELL RSP-200-48 answers that call with a 201.6W output in a 1U low-profile form factor, engineered for seamless integration into space-constrained equipment racks and control cabinets. Its 48V DC output at 4.2A is ideal for powering motors, sensors, PLCs, and other 48V-based devices, while active power factor correction ensures compliance with global energy standards and reduces harmonic distortion on the AC mains.

Who is it for

This power supply is built for system integrators, machine builders, and maintenance professionals who need a dependable 48V rail in factory automation, test and measurement, LED lighting, or telecommunications. It is equally suited for OEM applications where a slim 1U profile is a prerequisite, and for retrofitting existing installations that require a high-efficiency upgrade without sacrificing reliability.

Main features

• 201.6W total output with 48V DC and 4.2A, delivering stable power for demanding loads.
• 1U low-profile metal enclosure (30mm height) for rack and panel mounting.
• Active PFC with power factor >0.95 at 230VAC full load, reducing energy waste and meeting EN61000-3-2.
• Built-in DC fan with speed control for optimal thermal management and low acoustic noise.
• Comprehensive protections: short circuit, overload, over voltage, and over temperature.
• Wide input range: 85~264VAC or 120~370VDC, suitable for global mains and DC backup systems.
• High efficiency up to 90%, lowering operating costs and heat generation.
• Low ripple and noise (150mVp-p) for sensitive electronics.
• Isolation voltage 3kVAC between input and output for enhanced safety.
• Certifications: UL60950-1, TUV EN60950-1, CB, CE.

Specifications

• Output Power: 201.6 W
• Output Voltage: 48 VDC
• Output Current: 4.2 A
• Input Voltage Range: 85 ~ 264 VAC / 120 ~ 370 VDC
• Efficiency: 90%
• Power Factor Correction (PFC): Active PFC (>0.95 at 230VAC full load)
• Form Factor: 1U Low Profile
• Cooling Type: Built-in DC fan with speed control
• Protections: Short Circuit, Overload, Over Voltage, Over Temperature
• Operating Temperature: -30 ~ +70 °C
• Ripple & Noise: 150 mVp-p
• Isolation Voltage: 3 kVAC (Input to Output)
• MTBF: >200,000 hours
• Certifications: UL60950-1, TUV EN60950-1, CB, CE
• Setup, Rise Time: 1000ms, 50ms (at 230VAC full load)
• Hold Up Time: 16ms (at 230VAC full load)
• Current Limiting: Constant current limiting circuit
• Surge Input Withstand: 300VAC for 5 seconds

Tips

To maximize service life, ensure adequate ventilation around the unit and keep the fan intake free from dust. For 48V DC input applications, verify polarity and use appropriate fusing. Mount the supply with screws on all four corners to prevent vibration-induced stress. When connecting multiple units in parallel, consult the datasheet for current sharing guidelines.
