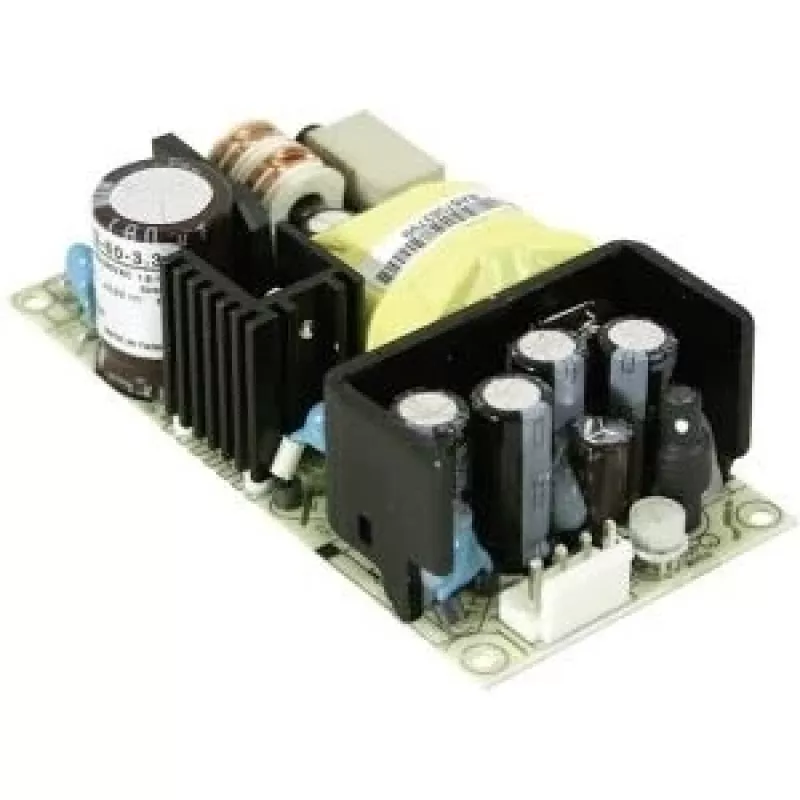

MEAN WELL RPS-60-12 60W 12V 5A Open Frame Medical Power Supply

MEAN WELL RPS-60-12 60W 12V 5A Open Frame Medical Power Supply
MEAN WELL RPS-60-12 60W 12V 5A Open Frame Medical Power Supply
R729
This open frame AC/DC power supply delivers a reliable 12V DC output with 5A current, providing 60W continuous power (72W peak for 10 seconds) for demanding medical and industrial applications. Its high efficiency of 88% and convection cooling ensure quiet, dependable operation without the need for ... Read More
Stock 76 Code 3492725 Brand MEAN WELL Model RPS-60-12 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

This open frame AC/DC power supply delivers a reliable 12V DC output with 5A current, providing 60W continuous power (72W peak for 10 seconds) for demanding medical and industrial applications. Its high efficiency of 88% and convection cooling ensure quiet, dependable operation without the need for a fan.

Advantages

Compliant with IEC/EN/ANSI/AAMI ES60601-1 medical safety standards with 2xMOPP isolation, it offers reinforced 4000VAC input-to-output isolation for enhanced patient and operator safety. The wide input voltage range of 80~264VAC accommodates global mains supplies, while a compact open frame design simplifies integration into space-constrained equipment. Built-in protections against short circuit, overload, over voltage, and over temperature safeguard both the supply and connected devices, contributing to an MTBF exceeding 1,000,000 hours.

Suitable for

  • Medical devices requiring 2xMOPP isolation, such as patient monitors and diagnostic equipment
  • Industrial automation systems and control panels
  • Test and measurement instruments
  • Telecommunication and networking equipment
  • Any application needing a reliable 12V DC power source with low standby power (<0.75W no-load)

Key specifications

  • Output: 12V DC, 5A, 60W continuous (72W peak for 10s)
  • Input: 80~264VAC (113~370VDC)
  • Efficiency: 88%
  • Isolation: 4000VAC input-output, 2xMOPP
  • Form factor: Open frame, free air convection cooling
  • Operating temperature: -30°C to +70°C
  • Protections: Short circuit, overload, over voltage, over temperature
  • Ripple & noise: 100mVp-p
  • Line regulation: ±0.5%
  • Load regulation: ±0.5%
  • MTBF: >1,000,000 hours
  • No-load power consumption: <0.75W
  • EMC: EN55011, EN55032 Class B; harmonic current EN61000-3-2 Class A

Recommendations

For medical or industrial systems requiring a safe, efficient, and compact 12V power solution, the MEAN WELL RPS-60-12 offers proven reliability and compliance. Its robust design and comprehensive protections make it an excellent choice for both new designs and replacements.

Specifications
AC adapter included
No
Bluetooth profiles
Not applicable
Brand
MEAN WELL
Category
Power Supply
Compliance certificates
IEC/EN/ANSI/AAMI ES60601-1, EN55011, EN55032 Class B, EN61000-3-2 Class A
Connectivity technology
Wired
Control type
Not applicable
Control unit type
Not applicable
EAN
4021087018135
Ear coupling
Not applicable
Headset type
Not applicable
Housing material
PCB
Input voltage (earpieces)
12V
International Protection (IP) code
Not specified
Intraaural headphones type
Not applicable
Model
RPS-60-12
MPN
RPS-60-12
Music playback
No
Product type
Power Supply
Protection features
Short Circuit, Overload, Over Voltage, Over Temperature
Recommended usage
Medical, Industrial
Suitable for indoor use
Yes
Suitable for outdoor use
No
Warranty period
3 years
Wearing style
Not applicable
Weight
0.18 kg
