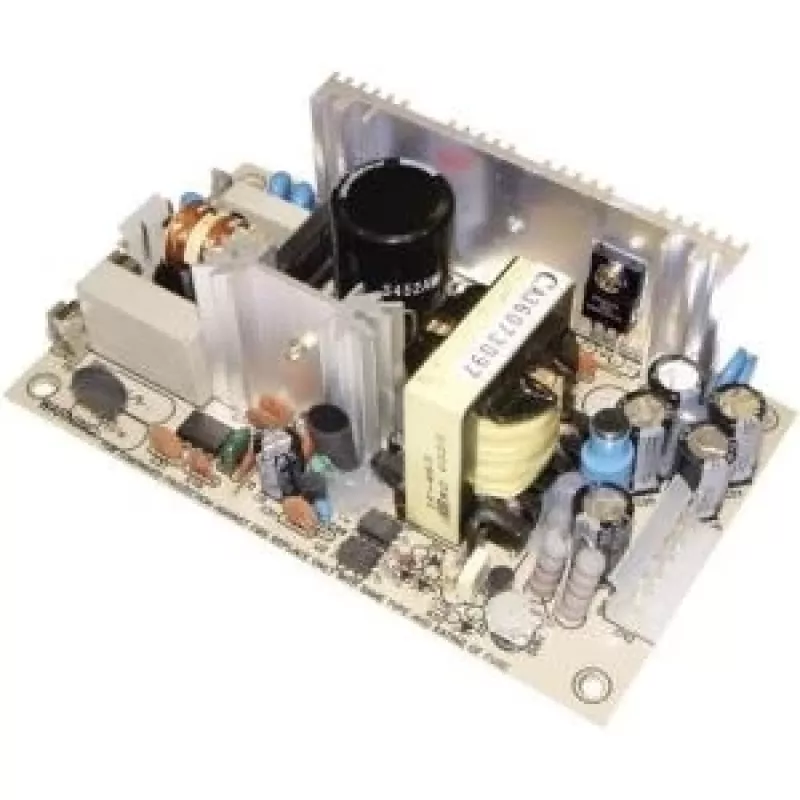

MEAN WELL PT-65C 65W Triple Output Open Frame Power Supply

This open frame power supply delivers reliable triple-output DC power for industrial and embedded applications. With a compact footprint and 65W total output, it provides +5V, +12V, and -12V rails to support mixed-voltage electronics. The unit accepts a universal AC input range of 90-264V and includes full protection against overload, overvoltage, and short circuits, ensuring dependable operation in demanding environments.

Advantages

Triple output design simplifies system integration by providing three common DC voltages from a single module. The open frame construction allows flexible mounting and efficient cooling in space-constrained enclosures. Built-in hiccup-mode protection automatically recovers after fault conditions, reducing downtime. Compliance with international safety standards (UL60950-1, TUV EN60950-1, CB, CE) assures quality and safety for global use.

Suitable for

• Industrial control systems and automation equipment
• Telecommunication devices and networking hardware
• Test and measurement instruments
• Embedded systems and single-board computers
• POS terminals and kiosks

Key specifications

• Output power: 65W total
• Outputs: +5V/8A, +12V/3A, -12V/1A
• Input voltage: 90-264V AC (127-370V DC)
• Efficiency: 78% typical
• Protections: overload, overvoltage, short circuit
• Operating temperature: -10°C to +60°C
• Ripple & noise (5V): 80mVp-p
• Certifications: UL60950-1, TUV EN60950-1, CB, CE

Recommendations

For engineers and system integrators seeking a proven, safety-certified power solution, the MEAN WELL PT-65C offers an excellent balance of performance, reliability, and value. Its triple output and compact open frame design make it a versatile choice for a wide range of industrial and commercial electronics.
