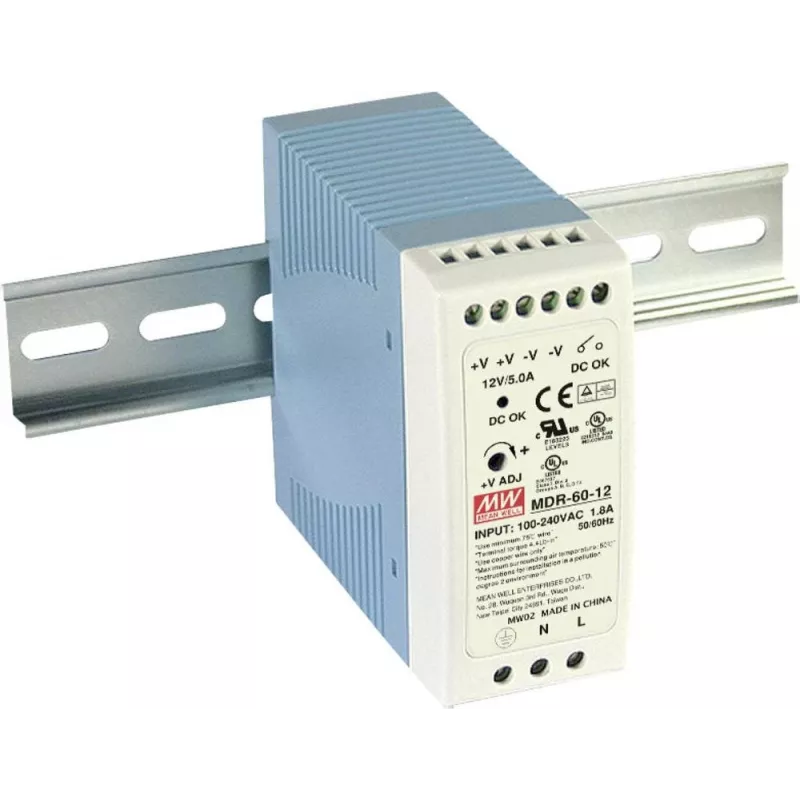

MEAN WELL MDR-60-12 DIN Rail Power Supply 12V DC 5A 60W

The MEAN WELL MDR-60-12 is a compact DIN rail power supply delivering a stable 12V DC output with 5A current and 60W power. Its slim 40mm width saves valuable cabinet space while providing reliable performance for industrial control systems, building automation, and LED lighting applications.

Advantages

This power supply features a universal AC input range of 85~264V AC, making it suitable for global use without switches or adjustments. It offers built-in protections against short circuit, overload, and over voltage, ensuring safe operation under fault conditions. The unit is cooled by free air convection, eliminating the need for fans and reducing maintenance. With an efficiency of up to 86%, it minimizes energy waste and heat generation. The plastic housing is lightweight yet durable, and the DIN rail mounting (TS-35/7.5 or TS-35/15) allows quick installation in standard electrical enclosures.

Suitable for

• Industrial control systems and PLCs
• Building automation and HVAC controls
• LED lighting and signage
• Security and access control systems
• Telecommunication equipment

Key specifications

• Output voltage: 12V DC (adjustable 10.8~13.8V)
• Output current: 5A
• Output power: 60W
• Input voltage: 85~264V AC or 120~370V DC
• Efficiency: 86%
• Ripple & noise: 120mVp-p
• Operating temperature: -20°C to +70°C
• Isolation voltage: 3kV AC (input to output)
• Safety standards: UL508, TUV EN60950-1, EN61558-2-16
• EMC compliance: EN55022 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• MTBF: >500,000 hours
• Dimensions (W x H x D): 40 x 90 x 100 mm
• Weight: 0.33 kg

Recommendations

For reliable 12V DC power in space-constrained industrial applications, the MDR-60-12 offers an excellent balance of performance, protection, and ease of installation. Pair it with appropriate fusing and wiring practices to maximize system uptime.
