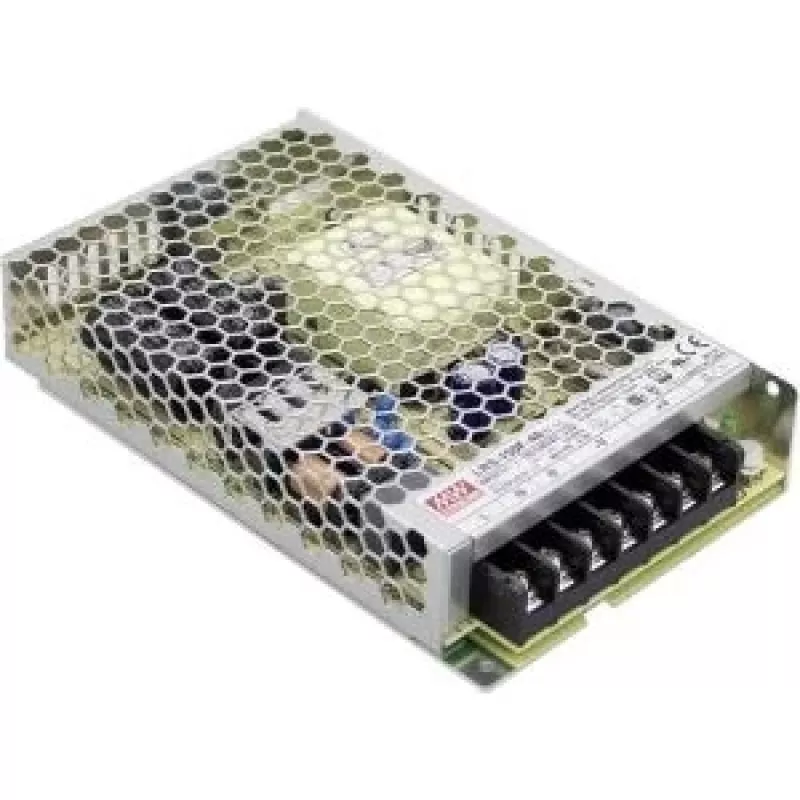

MEAN WELL LRS-150F-5 150W 5V 30A Enclosed Switching Power Supply

MEAN WELL LRS-150F-5 150W 5V 30A Enclosed Switching Power Supply
MEAN WELL LRS-150F-5 150W 5V 30A Enclosed Switching Power Supply
R1,038
In industrial automation and control cabinets, reliable DC power is non-negotiable. The MEAN WELL LRS-150F-5 delivers a rock-solid 5 VDC output at up to 30 A, making it an excellent choice for powering LED lighting systems, test equipment, or any 5 V load that demands stable performance. Its wide in... Read More
Stock 23 Code 3492646 Brand MEAN WELL Model LRS-150F-5 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

In industrial automation and control cabinets, reliable DC power is non-negotiable. The MEAN WELL LRS-150F-5 delivers a rock-solid 5 VDC output at up to 30 A, making it an excellent choice for powering LED lighting systems, test equipment, or any 5 V load that demands stable performance. Its wide input range of 85–264 VAC accepts mains power from virtually any region, while the compact metal enclosure fits easily into space-constrained installations.

Key specifications

  • Output power: 150 W
  • Output voltage: 5 VDC (adjustable 4.75–5.5 V)
  • Output current: 30 A
  • Input voltage: 85–264 VAC (120–370 VDC)
  • Efficiency: 87.5%
  • Operating temperature: -30 to +70 °C (free air convection cooling)
  • Protections: short circuit, overload, over voltage, over temperature
  • Safety standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943
  • EMC compliance: EN55022 Class B, GB9254 Class B, EN55014, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
  • MTBF: >700K hrs per MIL-HDBK-217F

Why choose it

The LRS-150F-5 is built for longevity and hassle-free integration. Its perforated metal case dissipates heat efficiently without a fan, ensuring silent operation and reducing maintenance. The wide operating temperature range and comprehensive protection features make it suitable for demanding environments, from factory floors to outdoor kiosks. With full compliance to major international safety and EMC standards, you can deploy it globally with confidence.

Ideal use cases

  • Industrial automation and control systems
  • LED lighting and signage
  • Test and measurement equipment
  • Telecommunications infrastructure
  • General electronic projects requiring stable 5 V power

Good to know

The output voltage can be fine-tuned via a built-in potentiometer to compensate for cable voltage drops or to match specific load requirements. The unit is chassis-mountable and comes with screw terminals for secure wiring. Always ensure adequate ventilation around the unit to maintain optimal performance and longevity.

Specifications
Brand
MEAN WELL
Category
Power Supply
Dimensions (WxDxH)
159 x 97 x 30 mm
EAN
4021087027809
Harmonized System (HS) code
85044090
Input voltage
85 - 264 V
Model
LRS-150F-5
MPN
LRS-150F-5
Operating temperature (T-T)
-30 - 70 °C
Output current
30 A
Output voltage
5 V
Package depth
165 mm
Package height
35 mm
Package width
100 mm
Weight
0.51 kg
