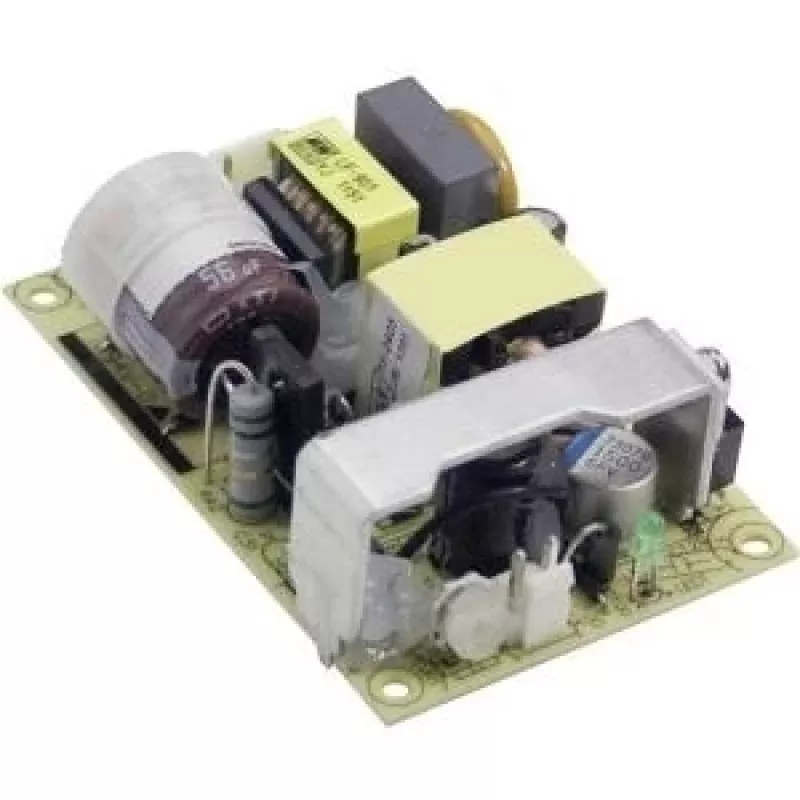

MEAN WELL EPS-25-7.5 25W Single Output Open Frame Power Supply, 7.5V DC 3.33A, 80-264VAC Input, PCB Mount

The EPS-25-7.5 from MEAN WELL stands out as a compact open frame power supply that delivers a stable 7.5 V DC output with a full 25 W of power, yet consumes less than 0.1 W at no load. Unlike many budget units, it accepts a universal AC input from 80 to 264 VAC without any switching, making it suitable for global use. Its low-profile PCB design and free air convection cooling allow it to fit into tight industrial enclosures where forced airflow is not available.

Highlights

• Universal input range: 80 ~ 264 VAC / 113 ~ 370 VDC
• High efficiency up to 87% and low no-load power consumption < 0.1 W
• Protections: short circuit, overload, over voltage
• 3 kVAC isolation between input and output
• Safety approvals: UL62368-1, TUV EN62368-1, CB IEC62368-1, CE
• Operating temperature from -30 °C to +70 °C

In daily use

This power supply is ideal for industrial automation, instrumentation, and communication equipment that require a reliable low-voltage DC rail. The open frame construction allows direct PCB mounting, saving space and simplifying integration. With a hold-up time of 16 ms at full load and 230 VAC, it rides through brief input interruptions, preventing unexpected resets. The output ripple and noise are kept below 100 mVp-p, ensuring clean power for sensitive circuits.

Full specifications

• Output voltage: 7.5 V DC
• Output current: 3.33 A
• Output power: 25 W
• Input voltage: 80 ~ 264 VAC / 113 ~ 370 VDC
• Frequency range: 47 ~ 63 Hz
• Efficiency: up to 87%
• Ripple & noise: 100 mVp-p max
• No load power consumption: < 0.1 W
• Isolation voltage: 3 kVAC (input to output)
• Protections: short circuit, overload, over voltage
• Cooling method: free air convection
• Operating temperature: -30 ~ +70 °C
• Hold up time: 16 ms at full load 230 VAC
• Safety standards: UL62368-1, TUV EN62368-1, CB IEC62368-1, CE
• Mounting type: open frame (PCB type)

Final note

For engineers seeking a dependable, energy-efficient power source that meets international safety standards, the MEAN WELL EPS-25-7.5 offers a proven solution with a compact footprint and robust protection features.
