Matrox M9188 PCIe x16, 2 GB, 2560 x 1600 pixels, PCI Express x16

Matrox M9188 PCIe x16, 2 GB, 2560 x 1600 pixels, PCI Express x16
Matrox M9188 PCIe x16, 2 GB, 2560 x 1600 pixels, PCI Express x16
R36,031
Drive Multi-Display Applications with Extraordinary Performance.The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-s... Read More
Stock Out Of StockNo Stock Code 2177920 Brand MATROX Model M9188-E2048F Warranty 2 Years

Shipping & Returns

Drive Multi-Display Applications with Extraordinary Performance.

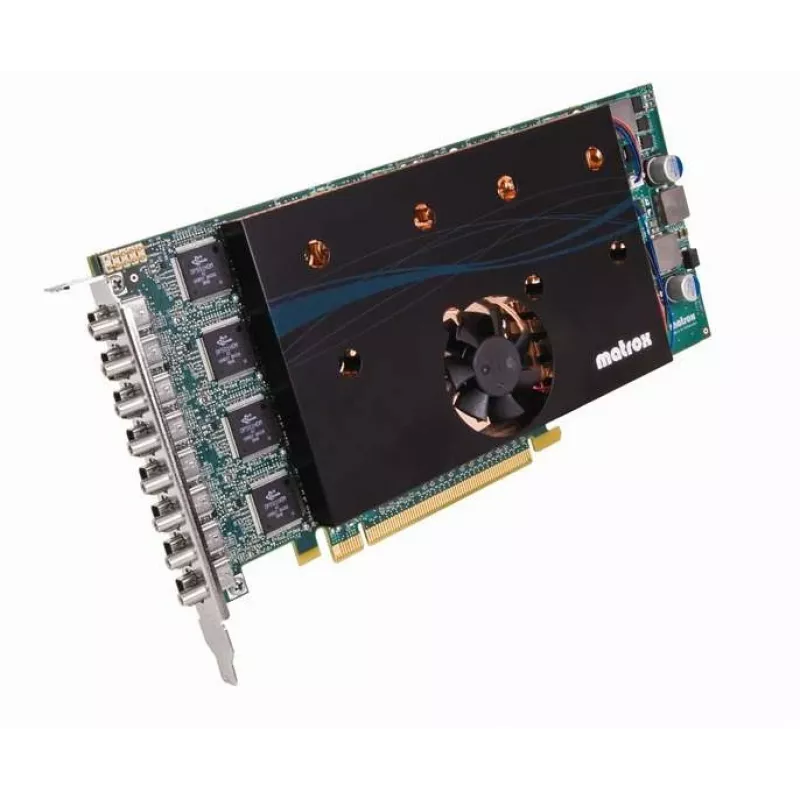

The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.

Hardware included
- Matrox M9188 PCIe x16 graphics card (with factory-installed ATX bracket)
- Eight Mini DisplayPort to DisplayPort adapters
- Eight DisplayPort to DVI adapters

Matrox M9188 PCIe x16. Graphics processor family: Matrox. Discrete graphics card memory: 2 GB. Maximum resolution: 2560 x 1600 pixels. OpenGL version: 2.0. Interface type: PCI Express x16. Cooling type: Active

Key Highlights
  • High-resolution eight DisplayPort or DVI monitor support: Support resolutions up to 2560x1600 (DisplayPort) and 1920x1200 (DVI) per output
  • Native PCI Express® (PCIe) x16 performance: Maximum bandwidth to ensure best performance
  • 2 GB of memory: For enhanced performance in demanding multi-monitor applications
  • ATX form factor
  • Stretched and independent desktop modes : Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors
  • M-Series multi-card support1 : Add an additional M-Series card into the same system to drive up to 16 displays from two cards
  • Joined graphics card mode2 : Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone : View a copy of one display on the other displays
  • Wide enterprise flexibility: Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
  • Multiple operating system support: Display drivers for Microsoft® Windows® 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux®3
  • Matrox 2 GB
  • 2560 x 1600 pixels PCI Express x16
  • OpenGL version: 2.0
Specifications
Bracket height
Full-Height (FH)
Certification
EMC B ROHS & WEEE
Compatible products
Microsoft Windows 7 (32/64bit) Microsoft Windows XP (32/64bit) Microsoft Windows Vista (32/64bit) Microsoft Windows Server 2003/2008 (32/64bit) Linux
Cooling type
Active
CUDA
No
Discrete graphics card memory
2 GB
Dual Link DVI
No
DVI-I ports quantity
0
Form factor
Full-Height/Full-Length (FH/FL)
Full HD
Yes
Graphics card family
Matrox
Graphics processor family
Matrox
Harmonized System (HS) code
84733020
HDCP
No
HDMI
No
HDMI ports quantity
0
Height
111.2 mm
Interface type
PCI Express x16
Length
167.6 mm
Linux operating systems supported
Yes
Mac compatibility
No
Mac operating systems supported
No
Maximum digital resolution
2560 x 1600 pixels
Maximum displays per videocard
8
Maximum resolution
2560 x 1600 pixels
Mini DisplayPorts quantity
8
OpenGL version
2.0
Parallel processing technology support
Not supported
PhysX
No
Server operating systems supported
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
TV tuner integrated
No
VGA (D-Sub) ports quantity
0
Video in
N
Weight
406 g
Windows operating systems supported
Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
