Managed Switch LevelOne Hilbert 5-Port Industrial Gigabit Smart Lite Switch

The LevelOne IGS-2105 Hilbert Industrial Gigabit Smart Lite Switch is a managed L2 Ethernet switch with five Gigabit RJ45 ports (10/100/1000). Designed for industrial environments, the switch supports full-duplex operation, a MAC address table of 2000 entries and a switching capacity of 10 Gbit/s. It accepts a DC input voltage range of 12–57 V and comes in a DIN-rail mountable metal housing with clear status LEDs for simple port monitoring. The switch is compatible with LevelOne IP Locator software for easy discovery and is supported on mainstream Windows and macOS systems.

Advantages

The IGS-2105 combines managed Layer 2 features with compact industrial design to provide reliable wired connectivity in harsh environments. Its five gigabit RJ45 ports deliver full-speed connectivity while the broad DC input range and DIN-rail mount make installation flexible. Visible status LEDs and compatibility with LevelOne IP Locator simplify deployment and device discovery, reducing setup time and maintenance effort.

Suitable for

• Industrial automation networks
• Factory floor Ethernet connectivity
• Transportation and surveillance systems
• Small-to-medium managed network segments
• DIN-rail installations and compact cabinet deployments

Key specifications

• Model: LEVELONE IGS-2105
• Ports: 5 × RJ45 Gigabit Ethernet (10/100/1000)
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Switch type: Managed Layer 2
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.1D, 802.1Q, 802.1w

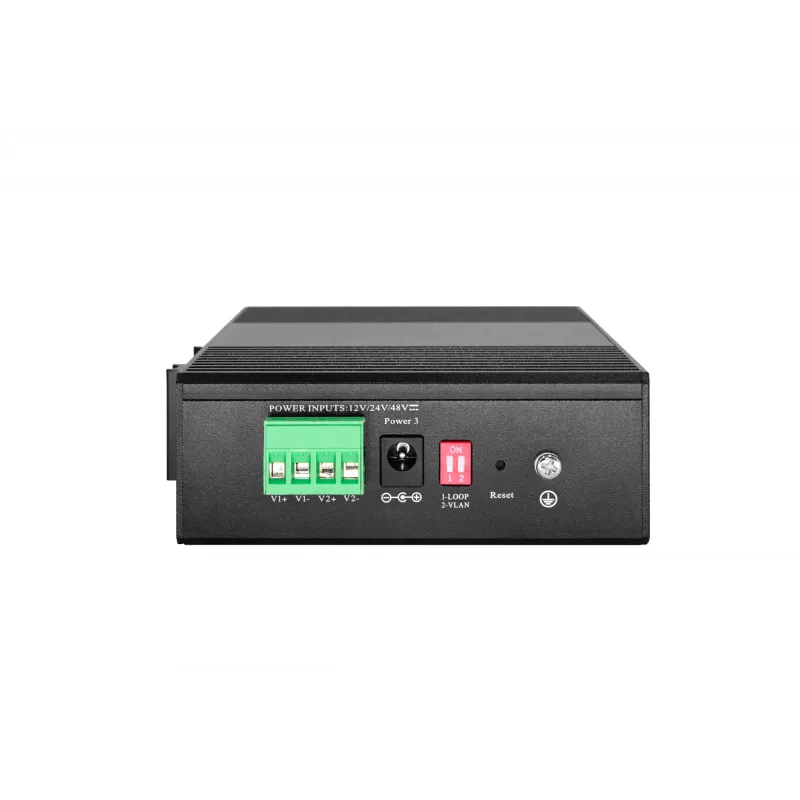

• Power input: DC 12–57 V
• Mounting: DIN-rail
• Colour: Black
• Weight: 0.43 kg

How to use

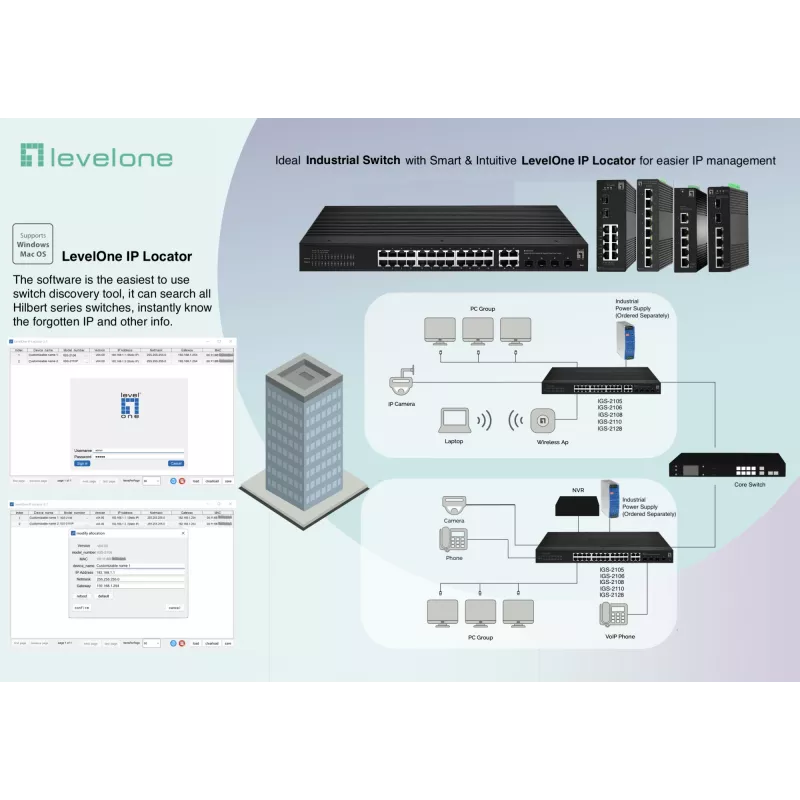

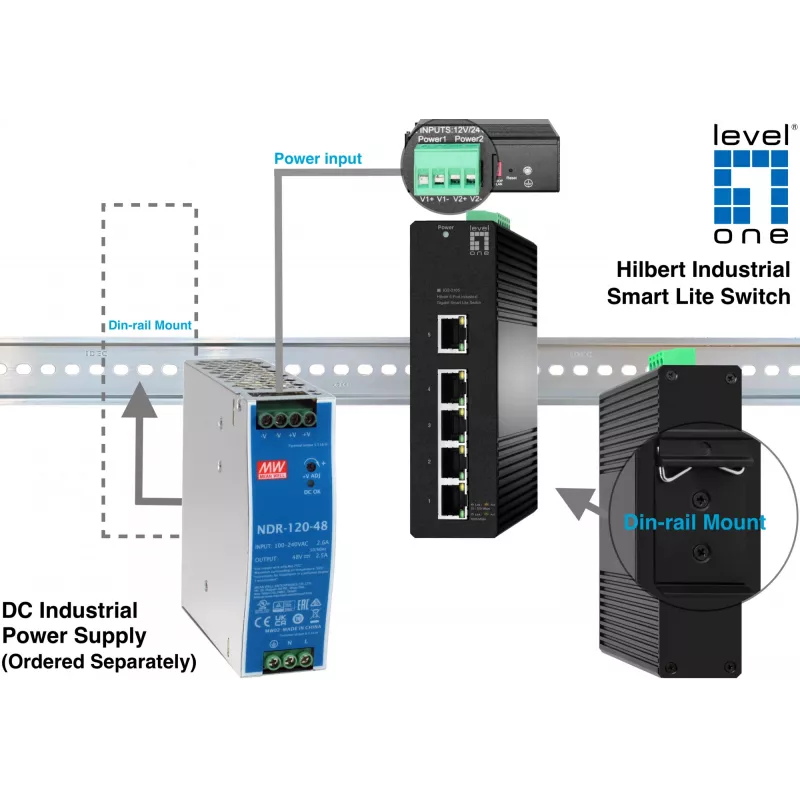

Mount the switch on a compatible DIN-rail and connect a suitable DC power source within the 12–57 V range. Attach Ethernet cables to the RJ45 ports to connect devices or uplinks. Use the front status LEDs to verify link activity and port status. For managed features and IP discovery, install and run the LevelOne IP Locator on a Windows or macOS system to find the device IP and access its management interface. Configure VLANs, link aggregation and other Layer 2 settings through the switch web GUI or supported management tools.

Recommendations

Install the switch in a well-ventilated, industrial-rated enclosure and use shielded Ethernet cables where electromagnetic interference is present. Ensure the power supply provides stable DC within the specified range and keep firmware up to date for security and stability improvements.
