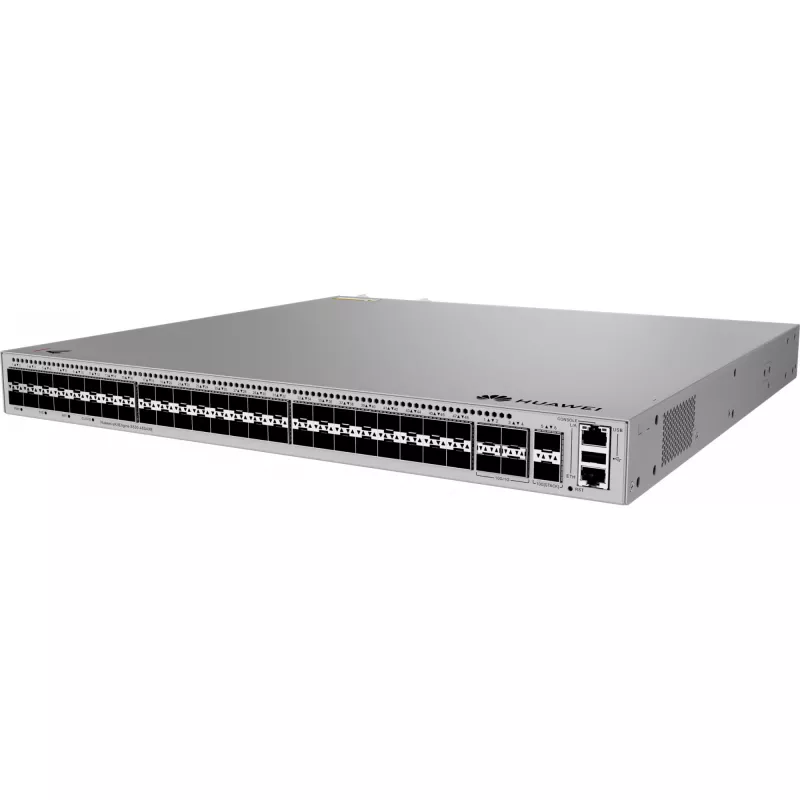

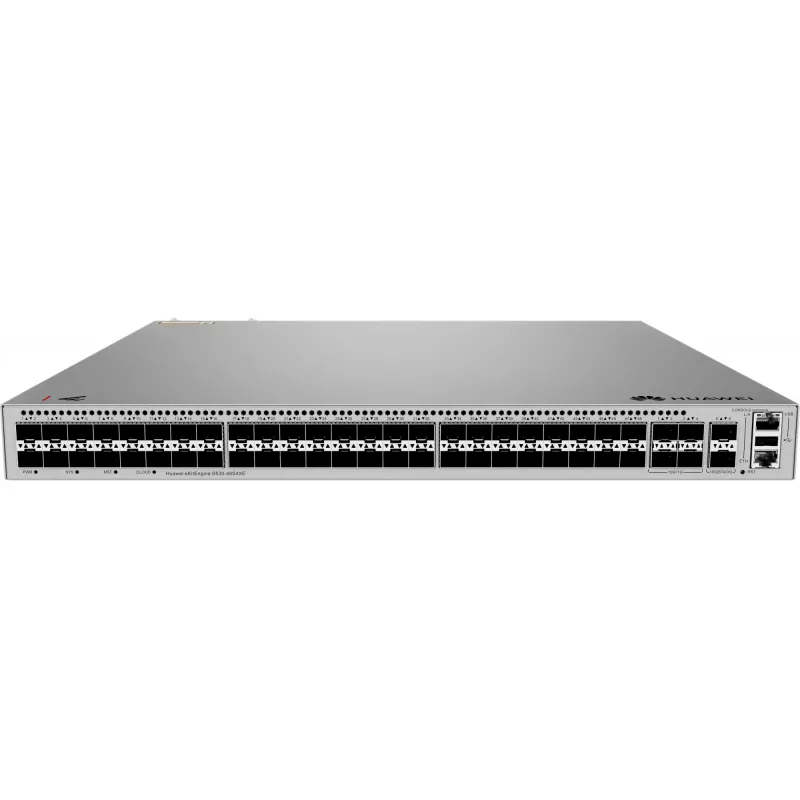

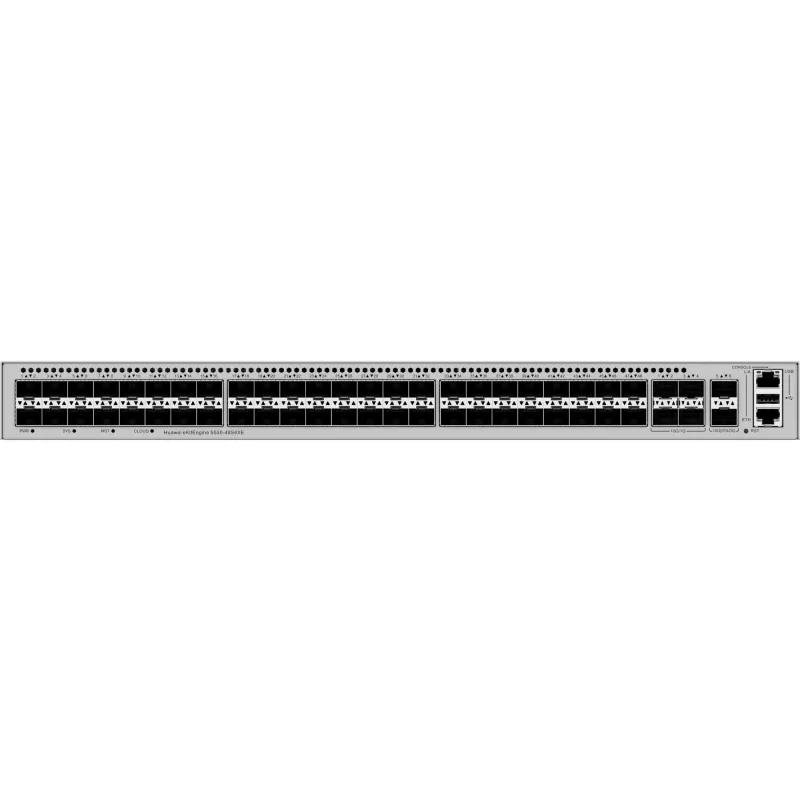

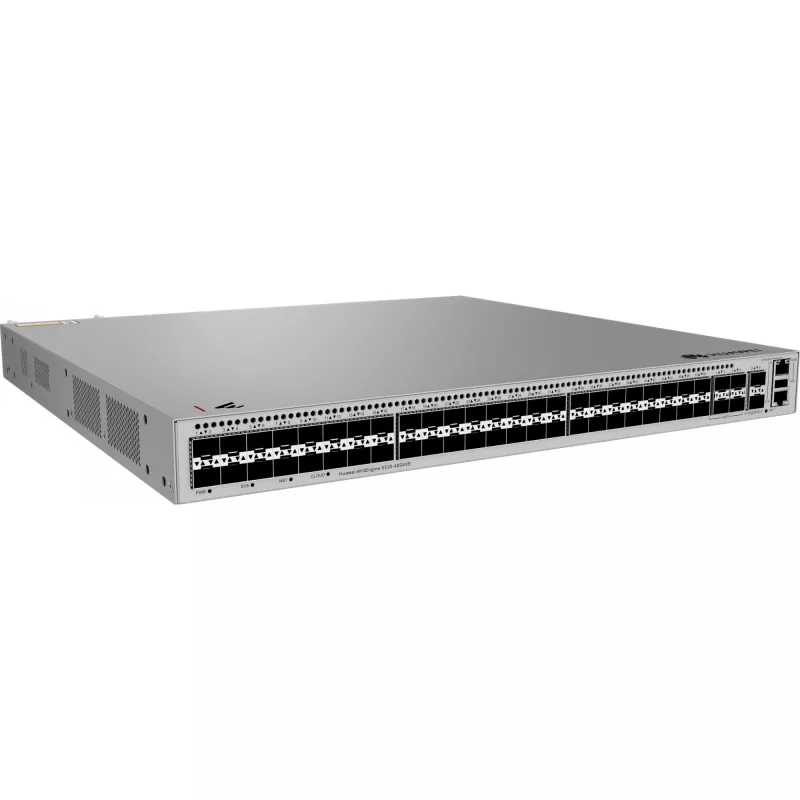

Managed Switch Huawei S530-48S4XE L3 1U 224 Gbit/s USB 2.0

The Managed Switch Huawei S530-48S4XE L3 1U 224 Gbit/s USB 2.0 is a rack-mountable, layer-3 network switch engineered for enterprise and data center environments. It provides a switching capacity of 224 Gbit/s, a single USB 2.0 port for configuration or storage tasks, and a console port (RJ-45) for local management. The switch accepts a DC input voltage range of 38–72 V and comes in a 1U form factor with a compact footprint and a grey chassis. As a managed switch, it supports advanced routing, traffic control and network monitoring functions required for medium to large network deployments.

Advantages

The HUAWEI S530-48S4XE offers high switching throughput and L3 routing capabilities in a 1U chassis, enabling efficient use of rack space. Its managed feature set supports VLAN, QoS, and network security policies to help maintain predictable performance. The presence of a USB 2.0 port simplifies tasks such as firmware updates, configuration backup and file transfers. With 10G support and a solid switching capacity, the device is suitable for aggregation and access roles where high throughput and advanced management are needed.

Suitable for

• Enterprise aggregation switches in campus networks
• Top-of-rack deployment in data centers
• Service provider access and edge routing
• Networks requiring VLAN segmentation and QoS

Key specifications

• Switch type: Managed, Layer 3
• Switching capacity: 224 Gbit/s
• Form factor: 1U rack-mount
• Ports: USB 2.0 port and console (RJ-45) port; multiple 10G-capable interfaces
• Power input: DC range 38–72 V
• Product colour: Grey
• Weight: 6 kg

How to use

Install the switch into a standard 19-inch equipment rack using the included mounting brackets and secure it in a 1U space. Connect DC power within the specified 38–72 V range, and link network uplinks and access ports using the appropriate fiber or copper transceivers and cabling. Use the console port (RJ-45) for initial setup or the USB 2.0 port to load firmware and configuration files. Access the web management interface, CLI or SNMP to configure routing, VLANs, QoS and security policies according to the network design. Monitor performance and logs to verify correct operation and to identify any required adjustments.

Recommendations

Place the switch in a temperature-controlled rack with proper airflow and cable management. Use compatible SFP/SFP+ modules for 10G connections and ensure power redundancy where high availability is required. Regularly back up configuration files to the USB port or an external management server and apply firmware updates during maintenance windows to minimize service impact.
