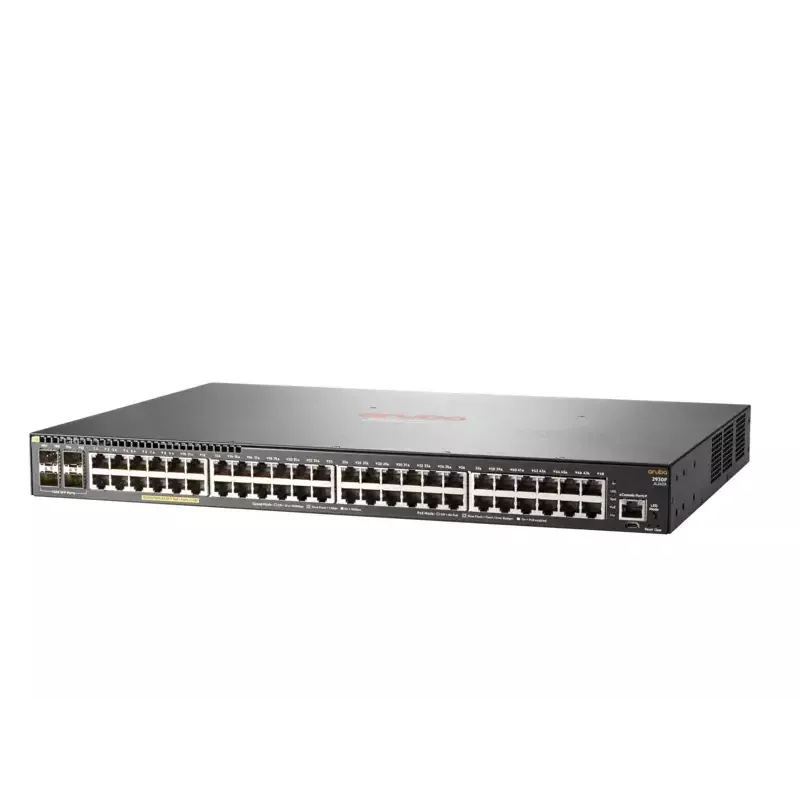

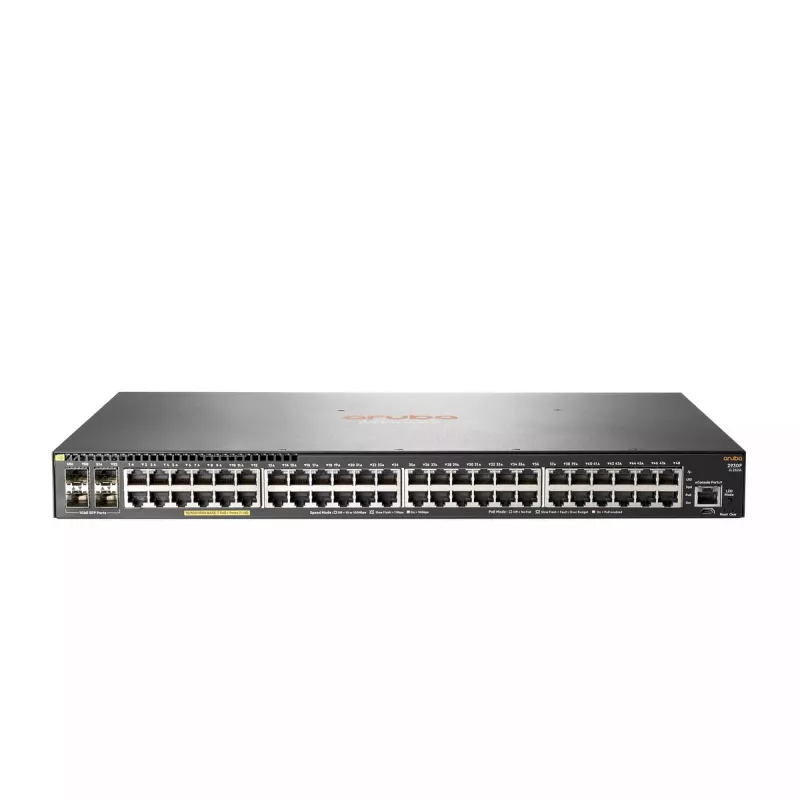

Managed Switch HPE Aruba Networking 2930F 48G PoE+ 4SFP

The Aruba 2930F Switch Series is a family of Layer 3 access switches designed for enterprise edge, SMB and branch offices that need unified wired and wireless network management. These switches use an Aruba ProVision ASIC to deliver low-latency performance, programmable SDN support and built-in 1GbE or 10GbE uplinks. Models with PoE+ supply up to 370 W of internal power for APs, cameras and phones, while the platform supports static and RIP routing, IPv6, ACLs, sFlow and robust QoS without additional software licensing.

Advantages

The Aruba 2930F line provides integrated wired/wireless management compatibility with Aruba ClearPass Policy Manager and Aruba AirWave, enabling consistent policies, guest onboarding and Zero Touch Provisioning. The switches offer selectable queue configurations and enhanced packet buffering for optimized performance, plus OpenFlow support for SDN applications. Built-in PoE+ options and convenient uplink choices simplify deployment at the network edge while maintaining enterprise-grade security controls such as 802.1X, RADIUS/TACACS+, port security and MAC address lockout.

Key specifications

• Switch type: Basic Layer 3 access switches for enterprise edge, SMB and branch offices
• ASIC: Aruba ProVision
• Uplinks: Built-in 1GbE or 10GbE uplink options
• PoE: Models with up to 370 W internal PoE+ power
• Routing: Static routing and RIP
• IPv6: Supported (no additional license required)
• Security: 802.1X, MAC and Web Authentication, RADIUS/TACACS+, SSL, port security, MAC lockout
• Management: Aruba ClearPass Policy Manager and Aruba AirWave compatibility; out-of-band Ethernet management port
• Monitoring: sFlow, RMON
• SDN support: OpenFlow compatibility and programmability for SDN applications

How to use

Install the Aruba 2930F switch in the network edge rack or cabinet, connect uplinks (1GbE or 10GbE) to aggregation or core switches and attach access points, phones and cameras to the PoE+ ports as needed. Use the out-of-band Ethernet management port to separate management traffic. Integrate the switch with Aruba ClearPass to centralize policy enforcement for wired and wireless users and with Aruba AirWave for device monitoring, Zero Touch Provisioning and operational management. Configure static or RIP routing, QoS queues and ACLs through the switch CLI or management platform to match site requirements.

Recommendations

Choose a PoE+ model if you plan to power multiple wireless access points, IP phones or cameras from the switch. For unified policy and simplified onboarding, deploy Aruba ClearPass and AirWave alongside the 2930F series. Verify uplink bandwidth (1GbE vs 10GbE) based on expected traffic and enable appropriate QoS and security features to meet corporate compliance and performance needs.
