Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports

Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports
Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports
Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports
Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports
Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports
Managed Switch Cisco WS-C2960X-48LPS-L L2/L3 Gigabit Ethernet PoE 48 Ports
R4,398
The Cisco Catalyst 2960X-48LPS-L is a fixed-configuration, stackable Gigabit Ethernet switch designed to provide enterprise-class access for campus and branch networks. It runs on Cisco IOS Software, supports straightforward device and network management, and offers enhanced application visibility, ... Read More
Stock 3 Code 1206310 Brand CISCO Model WS-C2960X-48LPS-L-RFB Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Cisco Catalyst 2960X-48LPS-L is a fixed-configuration, stackable Gigabit Ethernet switch designed to provide enterprise-class access for campus and branch networks. It runs on Cisco IOS Software, supports straightforward device and network management, and offers enhanced application visibility, reliability and resiliency for access-layer deployments.

Advantages

This switch delivers advanced Layer 2 and Layer 3 features, optional PoE+ power to feed connected devices, and stackable architecture for simplified scaling. It supports predictable management through Cisco IOS Software and improves network uptime and fault tolerance for campus and branch applications.

Key specifications

  • Model: Cisco Catalyst 2960X-48LPS-L
  • Ports: 48 Gigabit Ethernet ports
  • Stacking: Fixed-configuration, stackable
  • Software: Cisco IOS Software
  • Layer support: Advanced Layer 2 and Layer 3 features

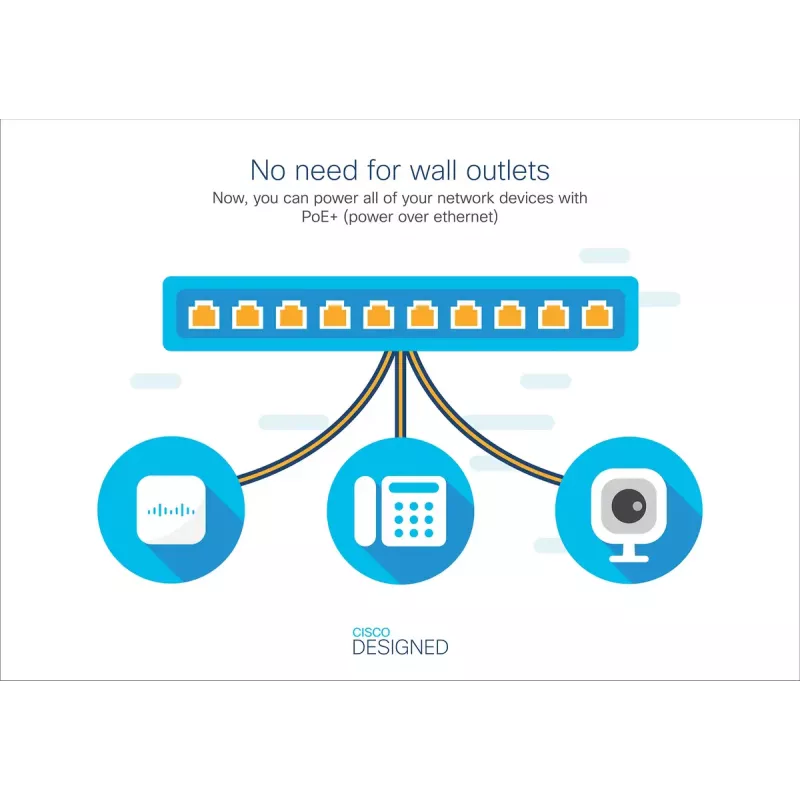

  • Power over Ethernet: Optional PoE+ support
  • Use case: Campus and branch access deployments

How to use

Install the switch in a standard 19-inch rack and connect uplink and access devices to the Gigabit Ethernet ports. Configure basic settings and features using Cisco IOS Software via the console, SSH or a management platform. If PoE+ is required, verify power budget and connect powered devices to the designated ports. For multi-switch environments, set up stacking according to Cisco stacking procedures to manage devices as a single logical unit.

Recommendations

Ensure firmware and IOS images are up to date before deployment, plan PoE+ power requirements for all connected devices, and follow Cisco guidelines for stacking and cooling to maintain network reliability.

Key Highlights
  • Model: Cisco Catalyst 2960X-48LPS-L
  • Ports: 48 Gigabit Ethernet ports
  • Stacking: Fixed-configuration, stackable
  • Software: Cisco IOS Software
  • Layer support: Advanced Layer 2 and Layer 3 features
  • Power over Ethernet: Optional PoE+ support
  • Use case: Campus and branch access deployments
Specifications
10G support
Yes
AC input voltage
100 - 240
Access Control List (ACL)
Yes
Access Control List (ACL) rules
3
ARP inspection
Yes
Authentication
MAC-based authentication, Port-based authentication
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Built-in processor
Yes
Cables included
AC
Console port
RJ-45
Country of origin
China
Depth
368 mm
DHCP features
DHCP server
Flash memory
128 MB
Form factor
1U
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
48
Harmonized System (HS) code
85176990
Height
45 mm
IGMP snooping
Yes
Input current
5
Internal memory
512 MB
Jumbo frames
9216
Jumbo frames support
Yes
LED indicators
Y
Link aggregation
Yes
MAC address table
16000 entries
Management protocols
SNMPv3
Market segment
Business
Mean time between failures (MTBF)
276870 h
Memory type
DRAM
MIB support
Yes
Multicast support
Yes
Networking standards
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Noise level
39 dB
Non-operating altitude
0 - 4000
Number of multicast groups filtered
1000
Number of power supply units
1
Number of queues
8
Number of static routes
1000
Number of VLANs
1023
Operating altitude
0 - 3000
Operating relative humidity (H-H)
10 - 95
Operating temperature (T-T)
-5 - 40
Package depth
549.402 mm
Package height
147.574 mm
Package weight
7210.88 g
Package width
469.9 mm
Physical stacking (units)
8
Power consumption (typical)
60.9 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet plus (PoE+) ports quantity
12
Power plug type
Type C
Processor frequency
600 MHz
Processor model
AppliedMicro APM8639
Product colour
Black
Quality of Service (QoS) support
Yes
Quantity per pack
1 pc(s)
Rack mounting
Yes
Rate limiting
Yes
Redundant power supply (RPS) support
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
Yes
Storage relative humidity (H-H)
10 - 95
Storage temperature (T-T)
-25 - 70
Switch layer
L2/L3
Switch type
Managed
Switching capacity
216 Gbit/s
Switching protocols
UDP, TCP, RADIUS/TACACS+
Throughput
107.1 Mpps
Total Power over Ethernet (PoE) budget
370 W
USB 2.0 ports quantity
2
User guide
Yes
VLAN support
Yes
Web-based management
Yes
Weight
5.8 kg
Width
445 mm
