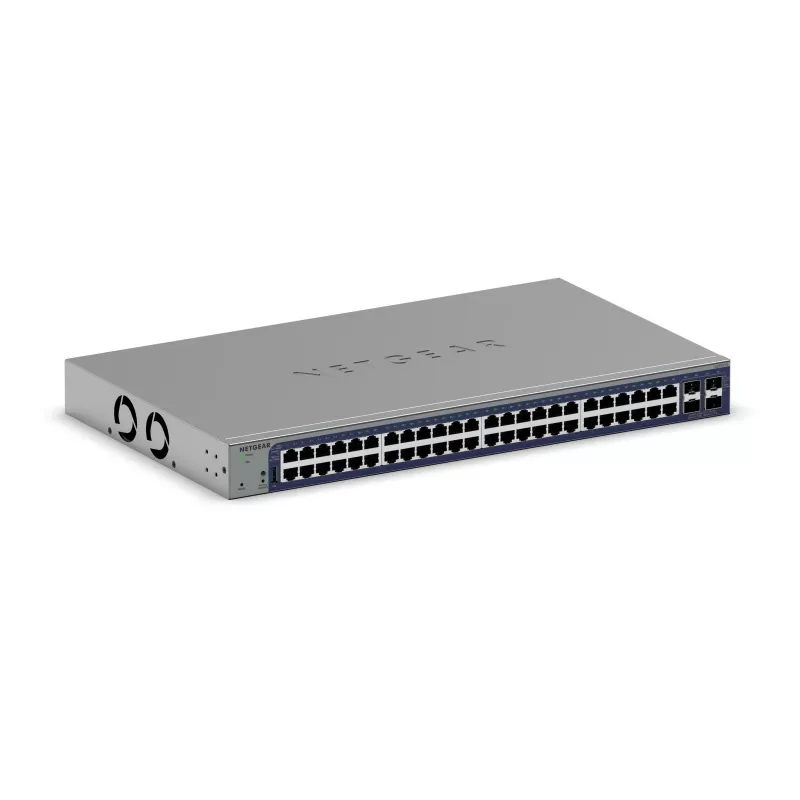

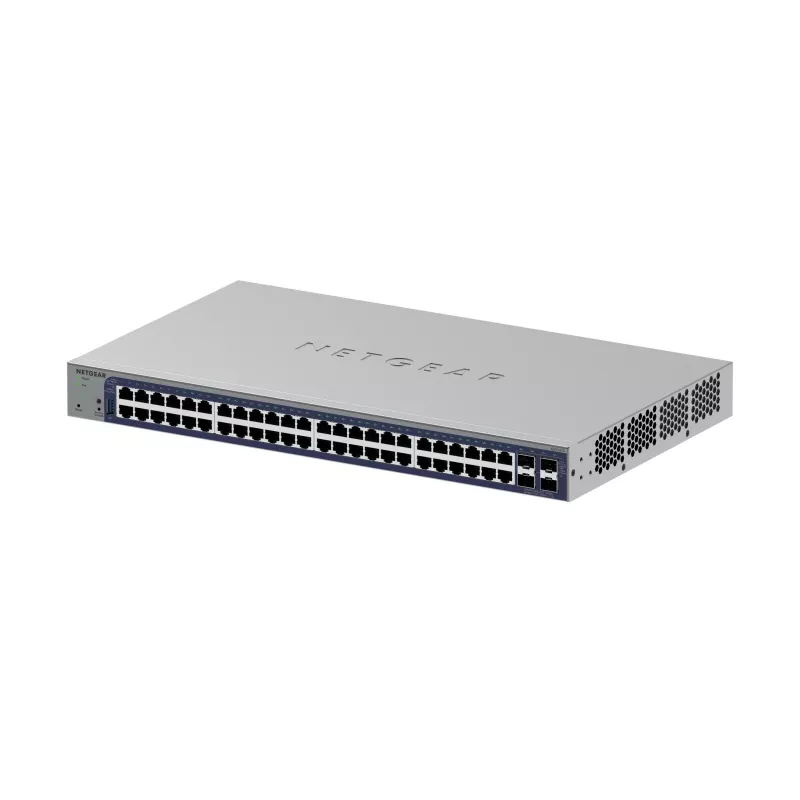

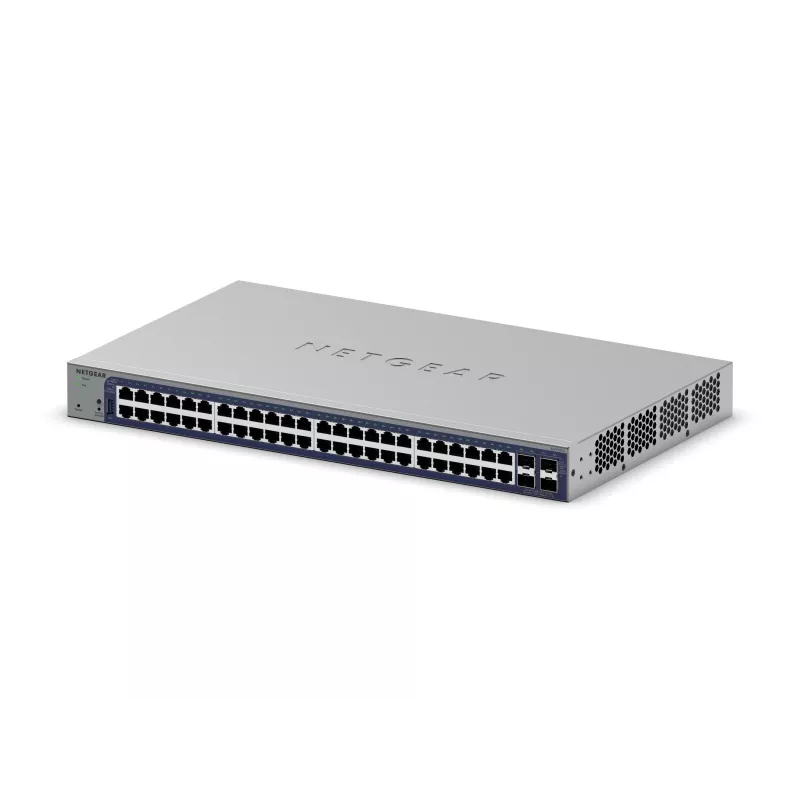

Managed Gigabit Ethernet Switch Netgear GS752TX, 48x RJ-45 10/100/1000, 10G support, 1U rack, grey

The Netgear GS752TX is a managed Gigabit Ethernet switch offering 48 RJ-45 ports with 10/100/1000 Mbps support and additional 10G capability for uplinks or high-speed links. Designed for rack-mounted network environments, this 1U, grey switch provides a 16,000-entry MAC address table and a switching capacity of 176 Gbit/s. It supports a wide range of IEEE standards for VLAN tagging, QoS, link aggregation, rapid spanning tree and port security, and can be administered locally or remotely via NETGEAR Insight cloud management with a 1-year subscription included.

Advantages

The GS752TX combines managed feature sets with straightforward physical connectivity to simplify aggregation and access layer deployments. Its support for 10G links enables higher-throughput connections between switches or to servers, while the 48 Gigabit ports ensure widespread device connectivity. Centralized management through NETGEAR Insight allows for remote configuration, monitoring and firmware updates, reducing on-site maintenance. Compliance with multiple IEEE standards ensures interoperability with existing network equipment and standard network services.

Suitable for

• Enterprise LAN aggregation and access layer switching
• High-throughput uplinks or server connections using 10G links
• Small to medium data centre edge and wiring closet installations
• Environments requiring remote monitoring and centralized management

Key specifications

• Switch type: Managed
• Ports: 48 × RJ-45 Gigabit Ethernet (10/100/1000)
• 10G support: Yes (for uplink/high-speed links)
• MAC address table size: 16,000 entries
• Switching capacity: 176 Gbit/s
• Rack form factor: 1U
• Supported standards: IEEE 802.3ab, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3u, 802.3x, 802.3z
• Colour: Grey
• Weight: 3.53 kg

How to use

Install the GS752TX in a standard 19-inch rack using the included mounting brackets to secure the 1U unit. Connect power using the provided AC connection or supported DC option if available for your model. Plug network devices into the 48 Gigabit RJ-45 ports and use SFP+/10G-capable ports or dedicated 10G interfaces for uplinks to core switches or servers. Access the management interface locally through the web GUI, CLI or SNMP, or enable NETGEAR Insight cloud management to provision, monitor and update the switch remotely. Configure VLANs, QoS, link aggregation and security settings according to network design and policies.

Recommendations

For stable operation, place the switch in a ventilated rack space with adequate airflow and within the recommended ambient temperature range. Use quality CAT5e/CAT6 cables for Gigabit links and CAT6A or appropriate SFP+/direct-attach solutions for consistent 10G performance. Regularly back up configuration settings and apply firmware updates through NETGEAR Insight or the local management interface to maintain security and compatibility.
