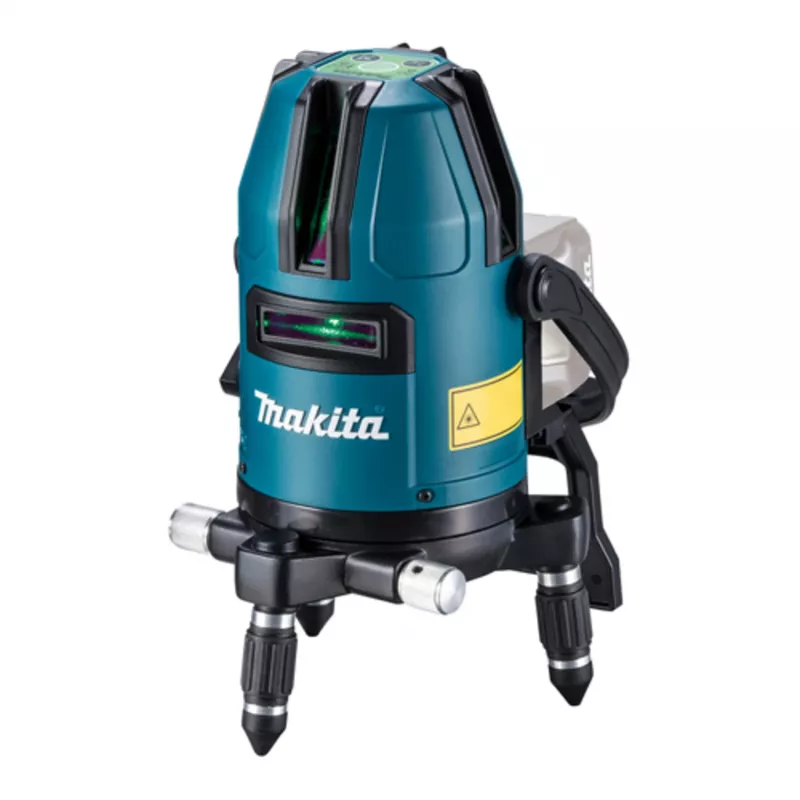

Makita SK40GDZ 40V XGT 3x360° Green Cross Line Laser Level

The Makita SK40GDZ is a professional-grade 3x360° green cross line laser level, powered by the 40Vmax XGT Li-ion battery platform. Designed for precise alignment and layout tasks, it projects one horizontal and two vertical lines for full room coverage. The green laser diode offers superior visibility, especially in bright conditions, and the self-levelling pendulum system ensures accuracy within ±2 mm at 10 m. With a working range of up to 35 m (70 m with receiver), this laser is ideal for interior construction, drywalling, tiling, and electrical installations.

Advantages

Green laser technology provides up to 4x brighter visibility than red lasers, reducing the need for darkening rooms. The 40V XGT battery system delivers long runtime (approx. 14 hours on BL4025 with all lines on) and compatibility with Makita's cordless tool ecosystem. The IP54 rating protects against dust and splashes, while the pendulum lock secures the internal mechanism during transport. Three brightness modes (High, Medium, Eco) and pulse mode for receiver use offer flexibility for various job site conditions.

Suitable for

• Interior fit-out and drywall installation
• Tiling and flooring alignment
• Electrical and plumbing layout
• Cabinet and shelving installation
• Ceiling grid and partition wall setup

Key specifications

• Laser Configuration: 3 x 360° lines (1 horizontal, 2 vertical)
• Laser Colour: Green (510-530 nm)
• Accuracy: ±2 mm at 10 m
• Self-levelling Range: ±4°
• Working Range (without receiver): 35 m
• Working Range (with receiver): 70 m
• Power Source: Makita 40Vmax XGT Li-ion battery (not included)
• Laser Class: Class 2
• IP Rating: IP54
• Tripod Thread: 1/4" and 5/8"
• Operating Temperature: -10 to 50 °C
• Run Time (BL4025, all lines): Approx. 14 hours
• Pendulum Lock: Yes
• Brightness Modes: 3 (High, Medium, Eco)
• Pulse Mode: Yes (for receiver use)
• Levelling Type: Automatic (Pendulum)

Recommendations

For optimal performance, use with Makita 40V XGT batteries (BL4020, BL4025, BL4040) and a compatible tripod with 1/4" or 5/8" thread. The SK40GDZ is a bare tool; battery and charger are sold separately. Ideal for professionals seeking a reliable, high-visibility laser level for demanding indoor applications.
