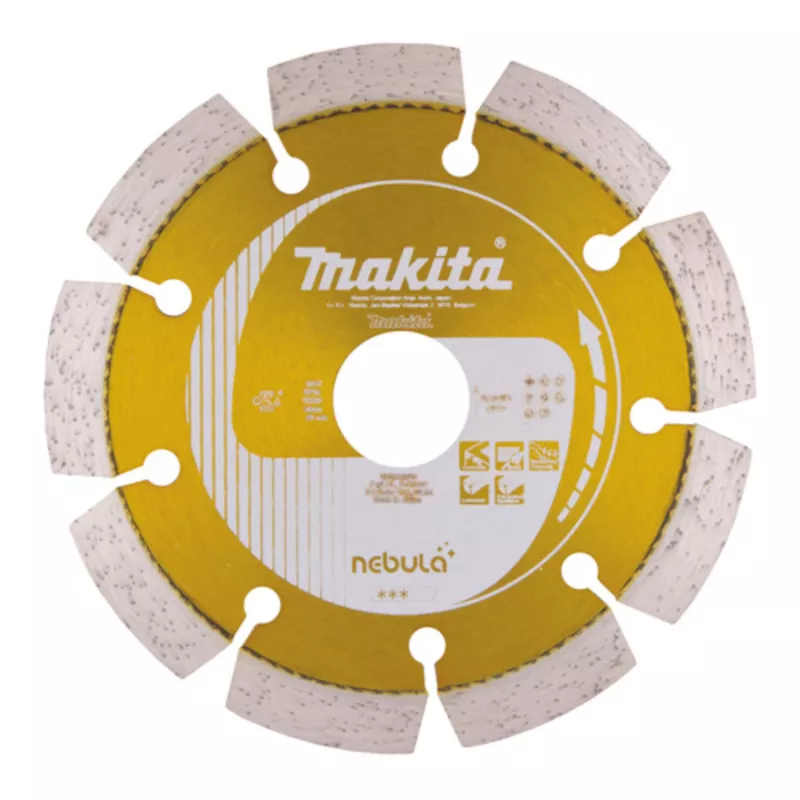

Makita Nebula Diamond Cutting Disc 230mm for Concrete, Limestone, Reinforced Concrete, Bricks, Sandstone

The Makita Nebula Diamond Cutting Disc is a high-performance segmented blade designed for professional cutting of concrete, reinforced concrete, bricks, blocks, paving slabs, sandstone, limestone, and general masonry. With a 230mm diameter and 22.23mm bore, this disc delivers fast, clean cuts on both dry and wet applications. The sintered metal bond ensures long life and consistent performance, making it ideal for angle grinders and cut-off saws.

Advantages

Segmented blade design for efficient debris removal and faster cutting. Suitable for dry and wet use, offering versatility on job sites. High-quality diamond segments provide durability and extended service life. Complies with EN 13236 safety standard for reliable operation.

Suitable for

• Concrete and reinforced concrete
• Bricks and blocks
• Paving slabs
• Sandstone and limestone
• General masonry

Key specifications

• Disc Type: Diamond Cutting Disc
• Blade Type: Segmented
• Diameter: 230 mm
• Bore Diameter: 22.23 mm
• Segment Height: 7 mm
• Segment Width: 2.6 mm
• Max Rotational Speed: 6650 RPM
• Max Peripheral Speed: 80 m/s
• Cutting Application: Dry & Wet
• Disc Material: Steel Core with Diamond Segments
• Bond Type: Sintered Metal Bond
• Product Series: Nebula (General Purpose)
• Safety Standard: EN 13236

Recommendations

For optimal performance and safety, always use the disc at or below the maximum rotational speed. Ensure the disc is compatible with your tool's arbor size (22.23 mm). Wear appropriate personal protective equipment during operation.
