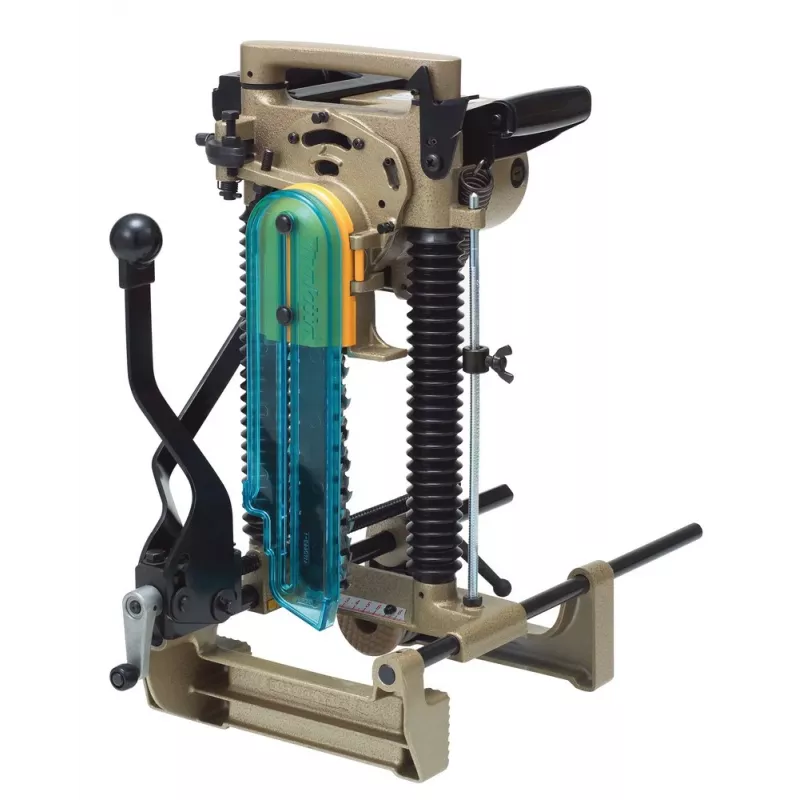

Makita 7104L Bolt/Chain Cutter 1140W 120V

The Makita 7104L is a powerful and reliable bolt/chain cutter designed for professional timber framing and joinery. With a robust 1140W motor and 10.0A amperage, this tool delivers consistent performance for cutting mortises in wood. Its adjustable depth and chain tension settings provide precision and ease of use, while the shaft lock simplifies chain replacement. The aluminum base ensures durability and stability during operation.

Advantages

High power output for efficient cutting; adjustable mortising depth up to 155 mm; wide vise opening accommodates large workpieces; dust extraction port keeps workspace clean; durable aluminum base for long-lasting use.

Suitable for

• Timber framing
• Joinery
• Heavy-duty woodworking

Key specifications

• Power Input: 1140 W
• Amperage: 10.0 A
• Voltage: 120 V
• No Load Speed: 3,200 RPM
• Max. Mortising Depth: 155 mm (6-1/8")
• Max. Mortising Width: 31.75 mm (1-1/4")
• Max. Mortising Length: 310 mm (12-1/4")
• Max. Vise Opening: 309 mm (12-1/8")
• Power Cord Length: 2.5 m (8.2 ft)
• Chain Type: Mortising Chain
• Depth Adjustment: Yes
• Chain Tension Adjustment: Yes
• Shaft Lock: Yes
• Dust Extraction Port: Yes
• Base Material: Aluminum

Recommendations

For optimal performance, use with appropriate safety gear and ensure the workpiece is securely clamped. Regularly check chain tension and lubricate as needed.
