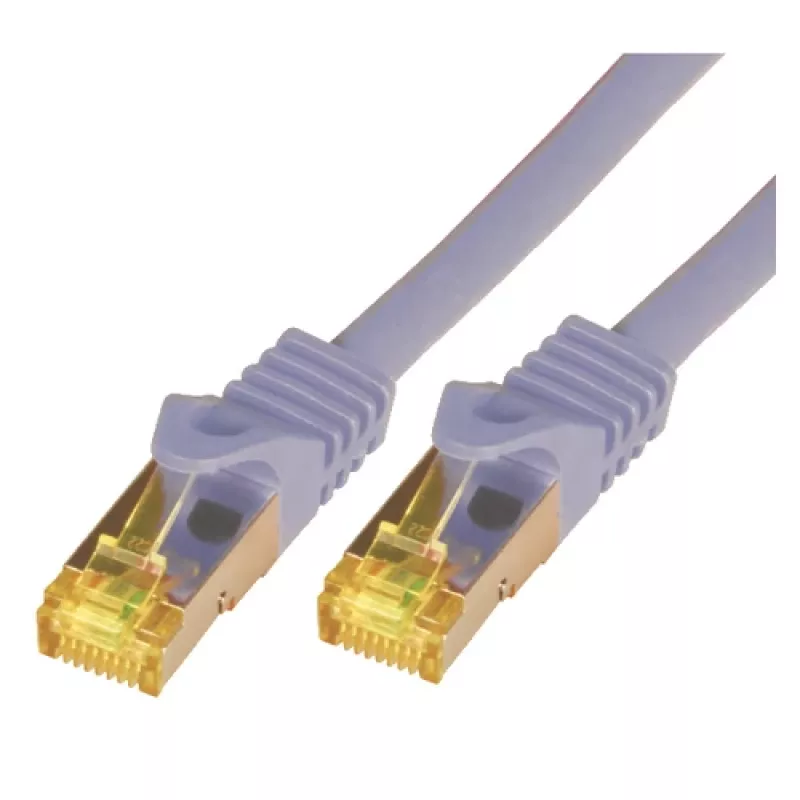

M-CAB Cat.7 S/FTP LSZH Raw Patch Cable 3m Grey 10 Gigabit Ethernet

The M-CAB Cat.7 S/FTP LSZH Raw Patch Cable is a high-performance network cable designed for demanding 10 Gigabit Ethernet applications. With a length of 3 meters and a sleek grey jacket, this cable is ideal for structured cabling in data centers, server rooms, and professional network installations. It features double shielding (S/FTP) with individual foil pairs and an overall braid, ensuring excellent protection against electromagnetic interference.

Advantages

This raw patch cable offers superior signal integrity and minimal crosstalk thanks to its Cat.7 specification and 600 MHz bandwidth. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic smoke in case of fire, making it suitable for public and commercial buildings. Pure copper conductors ensure reliable data transmission over the 3-meter length.

Suitable for

• 10GBASE-T networks
• Data centers and server rooms
• Professional LAN installations
• High-speed Ethernet connections requiring Cat.7 performance

Key specifications

• Cable Standard: Cat.7
• Shielding: S/FTP (PIMF) – double shielded
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 3.00 m
• Colour: Grey
• Data Transfer Rate: 10 Gbps
• Bandwidth: 600 MHz
• Connectors: 2x RJ45 Male (Cat.6a compatible)
• Conductor Material: Pure Copper
• Conductor Gauge: AWG26/7 (stranded)
• Outer Diameter: 6.5 mm
• Number of Conductors: 8 (4 twisted pairs)

Recommendations

For optimal performance, use this cable with Cat.6a or Cat.7 compatible network devices. Ensure proper termination if field-terminating connectors. The cable is backward compatible with Cat.6, Cat.5e, and Cat.5 networks.
