Low Noise Block downconverter Megasat 401073

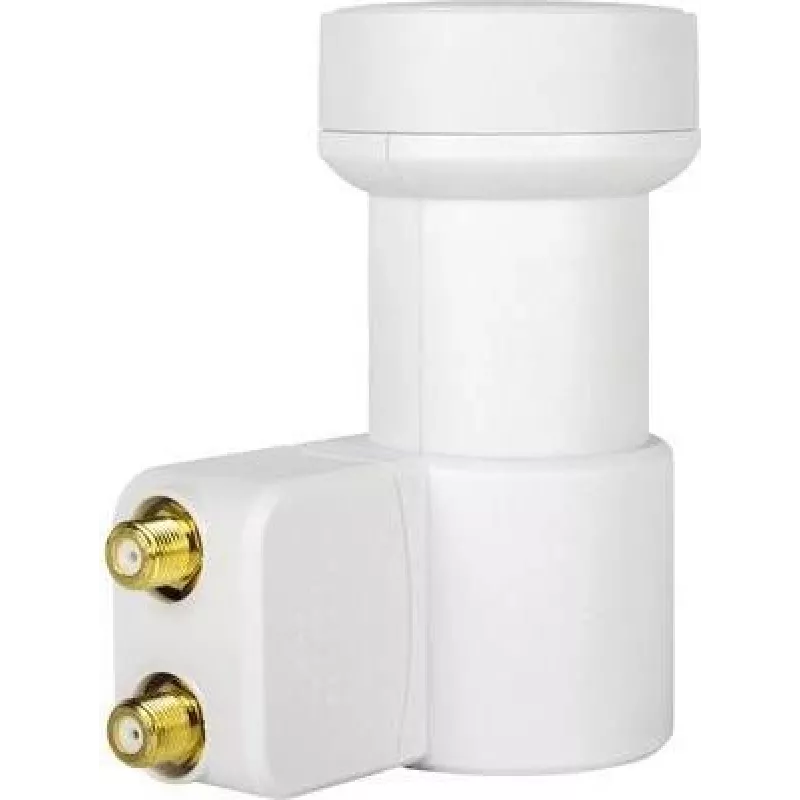

The Megasat 401073 Low Noise Block downconverter is a universal Twin LNB designed for reception from a single satellite and connection to two receivers. It operates in the 10.7–12.75 GHz frequency range, has a 4 cm feedhorn diameter, gold-plated F-connector and a low noise figure of 0.1 dB to support clear HD, 3D and 4K signal reception. The compact white housing measures 60 mm × 110 mm and is built for reliable performance in a wide range of weather conditions.

Advantages

This Twin LNB provides low-noise signal conversion with a noise figure of 0.1 dB and gold-plated F-connectors for improved conductivity. The device supports high-resolution broadcasts (HD, 3D, 4K) and is made for high weather resistance to maintain stable operation in cold or hot climates. Its compact dimensions and standard F-connector make installation and use straightforward.

Suitable for

Key specifications

How to use

Mount the Twin LNB to the dish feed arm, align the dish to the desired satellite and connect each receiver to the gold-plated F-connectors using coaxial cables. Ensure cables and connectors are tightened securely to prevent signal loss. Configure each receiver according to the satellite provider’s settings and perform a channel scan to complete setup.

Recommendations

For best reception, use weatherproof coaxial cables and keep connector joints sealed. If reception problems persist, verify dish alignment and cable integrity before replacing the LNB.
