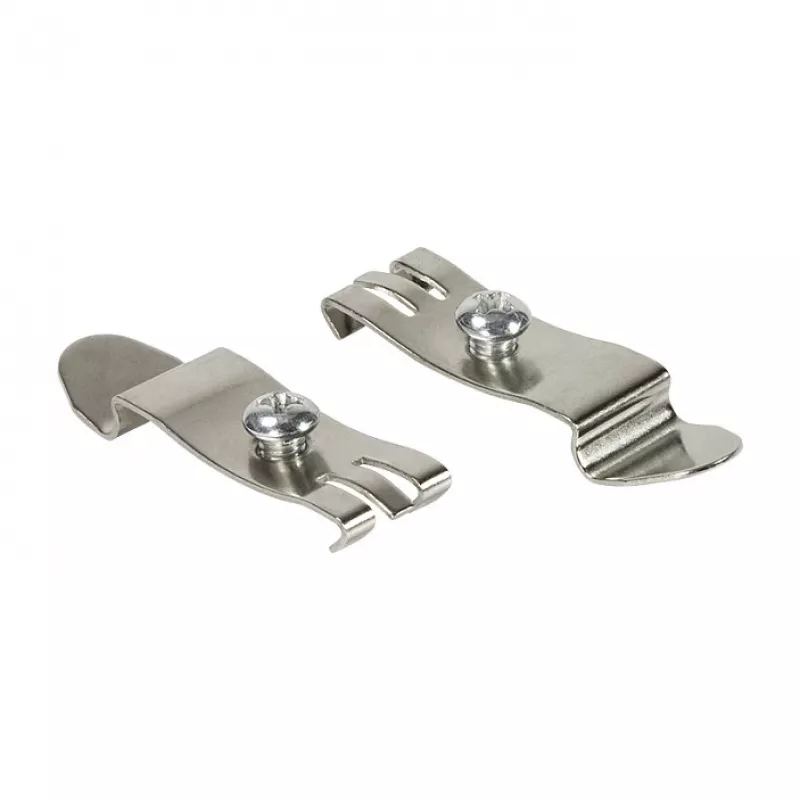

LogiLink DIN Rail Mounting Brackets, Stainless Steel, 2 pcs

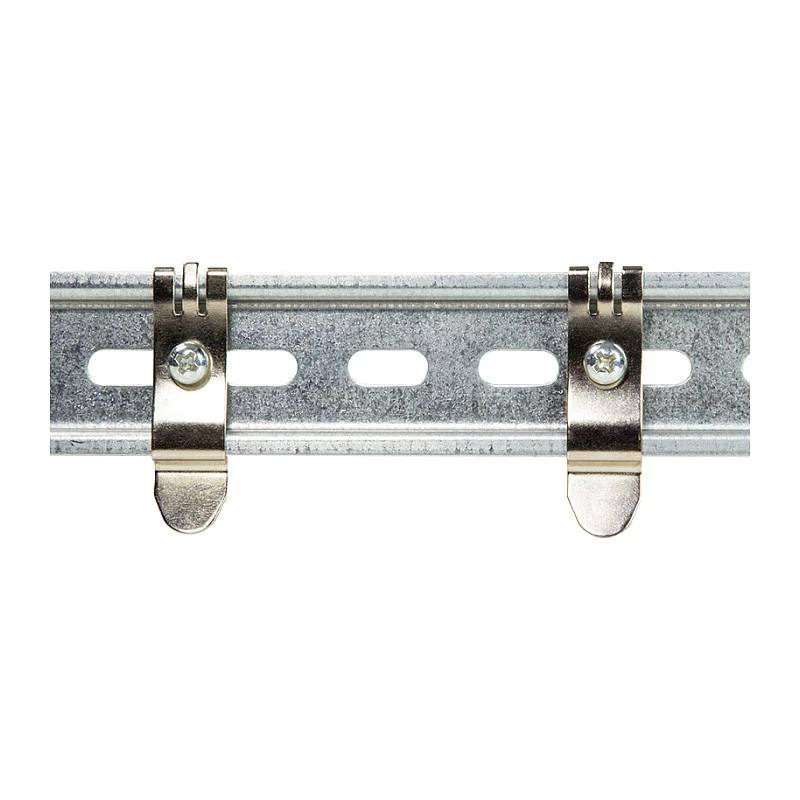

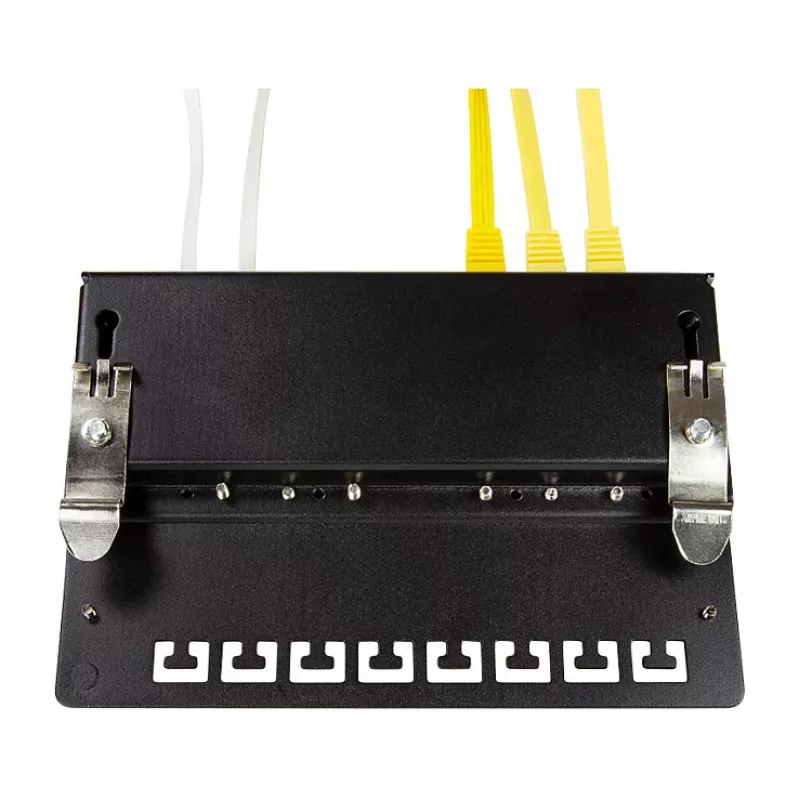

DIN rail mounting brackets crafted from stainless steel offer a robust solution for attaching non-DIN rail devices to standard TS35 rails. The snap-on design ensures quick, tool-free installation while providing a secure hold. With two brackets per pack, you can mount multiple devices or create a stable dual-point attachment for heavier equipment.

Advantages

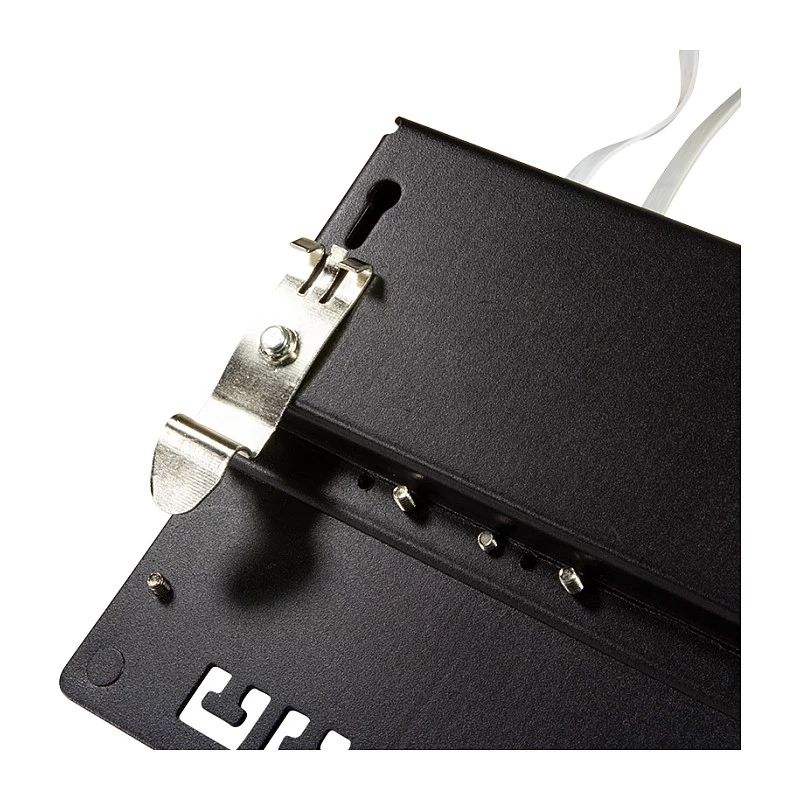

Stainless steel construction delivers excellent corrosion resistance, making these brackets suitable for harsh industrial environments. The clip-on mechanism allows for rapid mounting and repositioning without disassembling the rail. Each bracket features two screw holes (M3/M4 compatible) for firm attachment to your device. The compact size (48 x 20 x 10 mm) adds minimal bulk while supporting reliable load distribution.

Suitable for

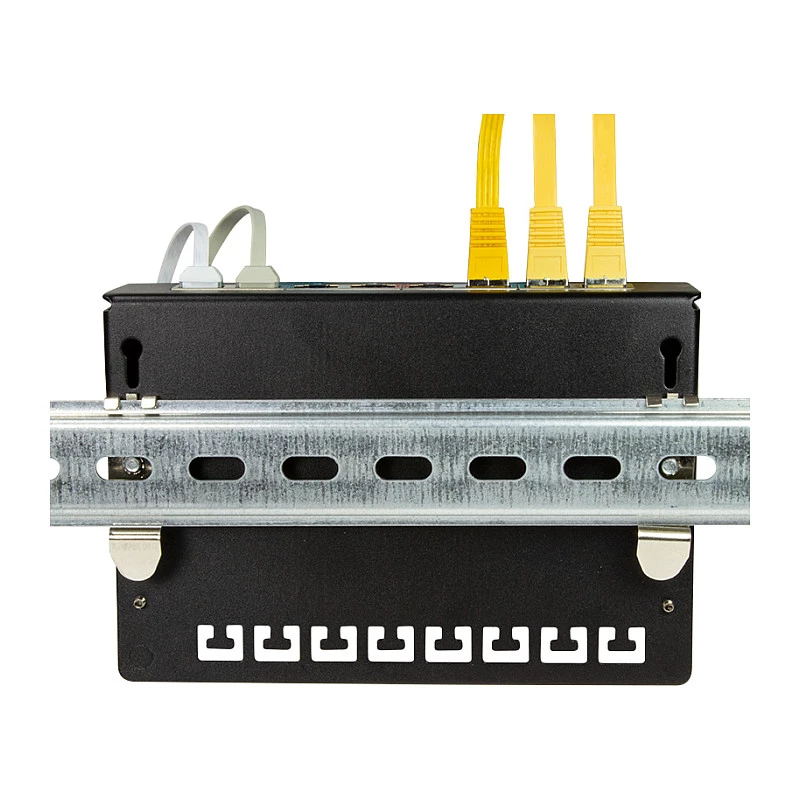

• Mounting power supplies, converters, and small controllers onto DIN rails
• Organizing network equipment, IoT gateways, and sensors in control cabinets
• Retrofitting non-DIN devices into existing rail-based installations
• Industrial automation, building management, and electrical distribution systems

Key specifications

• Material: Stainless steel
• DIN rail compatibility: TS35 (35 mm)
• Quantity: 2 brackets per pack
• Dimensions per bracket: 48 x 20 x 10 mm (L x W x H)
• Weight per bracket: approx. 10 g
• Mounting holes: 2 per bracket, diameter 3.5 mm
• Operating temperature: -20°C to 80°C
• Compliance: RoHS, REACH

Recommendations

For a clean and professional installation, pair these brackets with stainless steel M3 or M4 screws. Ensure the DIN rail is properly grounded if used in electrical panels. When mounting heavier devices, use both brackets spaced evenly to distribute weight and reduce stress on the rail.
