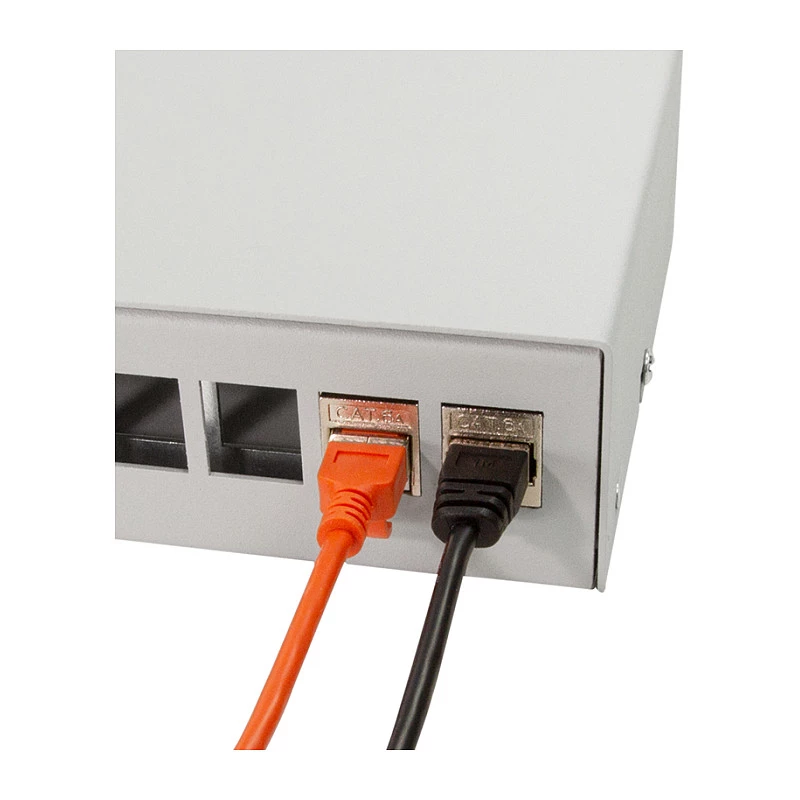

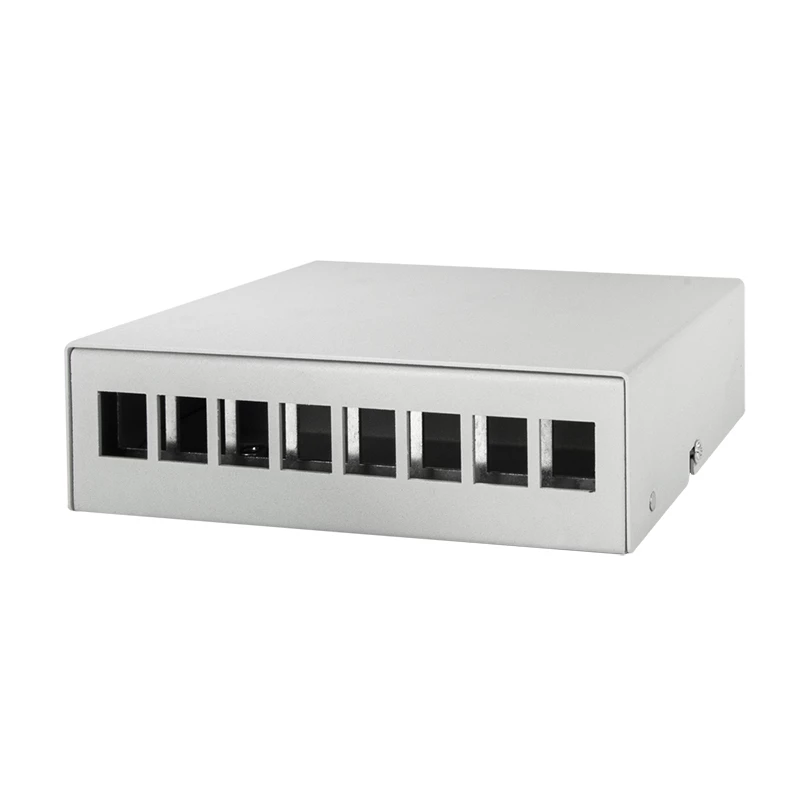

LogiLink Consolidation Point Box 8-Port, Desk/Wall/DIN Rail Mounting, Grey

In a busy open-plan office, when a team relocates to another floor, the LogiLink 8-Port Consolidation Point Box keeps the network reconfiguration quick and damage-free. It sits between the permanent horizontal cabling and the flexible equipment cords, so you only touch the short patch leads instead of the fixed infrastructure. This grey ABS box is built for structured cabling in offices, data centres, and industrial settings, providing a secure and organised point to connect horizontal cables to device cables.

Key specifications

• Ports: 8 x RJ45
• Termination: LSA+ (IDC) terminals, tool-free, accept solid and stranded conductors
• Cable support: Cat.5e, Cat.6, Cat.6A installation cables
• Mounting: Desk, wall, or DIN rail
• Housing: ABS plastic, grey (RAL 7035)
• Shielding: Unshielded (UTP)
• Cable entry: Rear, top, or bottom
• Operating temperature: -10°C to 50°C; storage: -40°C to 70°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Why choose it

This consolidation point box acts as a flexible intermediary in your network infrastructure. It separates permanent cabling from equipment cords, reducing the risk of damage to the backbone and making future reconfigurations quick and cost-effective. The durable ABS housing and versatile mounting options make it suitable for virtually any environment, from tidy office installations to demanding industrial racks.

Ideal use cases

• Open-plan office cabling where frequent desk moves are common
• Data centre zone distribution for efficient cable management
• Industrial settings requiring robust and accessible network consolidation points

Good to know

The box supports solid and stranded conductors, ensuring compatibility with a wide range of installation cables. Its tool-free LSA+ terminals simplify installation and reduce setup time. With compliance to major cabling standards, it integrates seamlessly into existing structured cabling systems.
