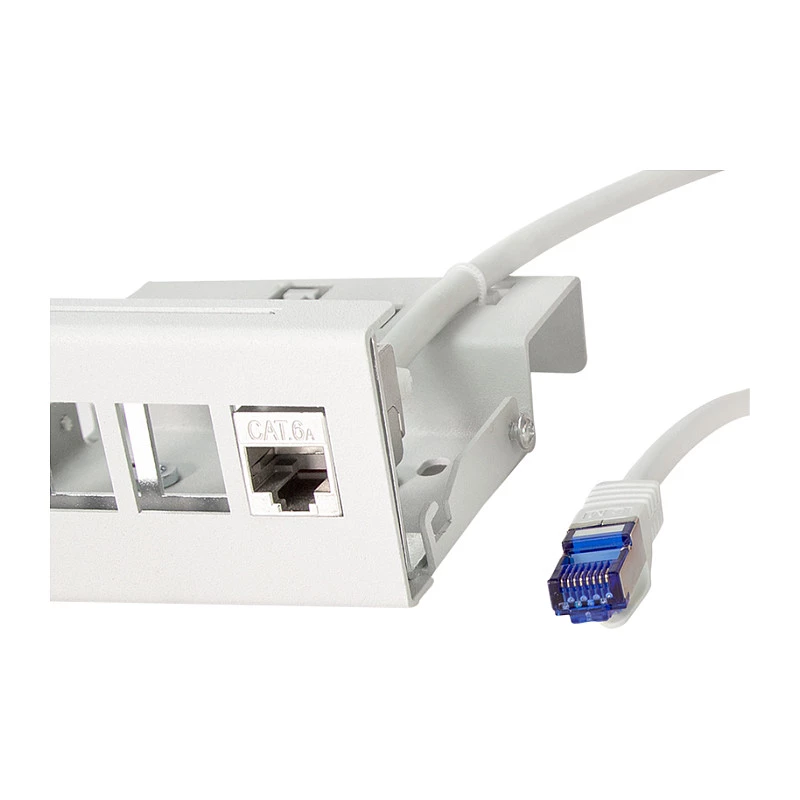

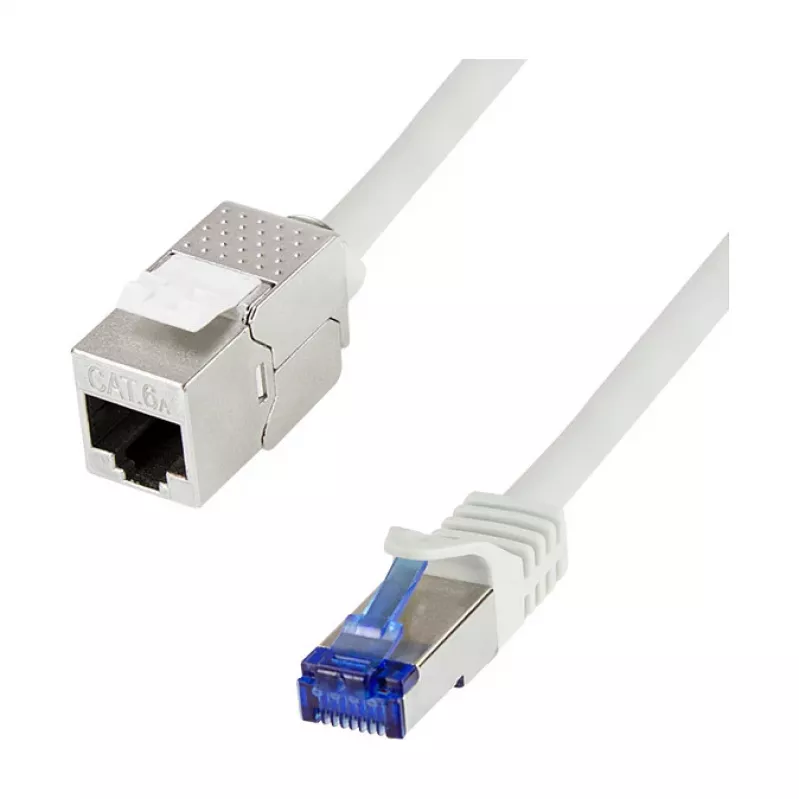

Logilink CC5152S Cat.6A S/FTP Consolidation Point Cable – 25m, Grey

500 MHz headroom means this Logilink consolidation point cable is built to handle 10-Gigabit Ethernet without breaking a sweat. Designed for structured cabling systems, the 25-metre grey Cat.6A S/FTP cable pairs excellent throughput with a low-smoke, zero-halogen jacket for safer installations in occupied spaces.

Overview

A consolidation point cable is a vital link between the horizontal cable and the outlet in a network topology, allowing for easy reconfiguration and future scalability. This Logilink CC5152S offers 4 unshielded twisted pairs individually wrapped in aluminium foil, plus a tinned copper braid covering all pairs to maintain signal integrity and reject electromagnetic interference. With an impedance of 100 Ohm and an operating temperature range of -20°C to +60°C, it is ready for demanding network environments.

What stands out

• S/FTP shielding: foil per pair plus overall braid for superior noise rejection.
• LSZH jacket: low smoke and zero halogen for improved safety.
• Supports 10GBASE-T: capable of 10-Gigabit speeds over copper.
• 25-metre length: suitable for horizontal runs in offices and data centres.

Technical details

• Cable type: Cat.6A S/FTP (PiMF)
• Conductor: 26 AWG stranded copper
• Bandwidth: 500 MHz
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Fire rating: IEC 60332-1, IEC 61034, IEC 60754-2
• Operating temperature: -20°C to +60°C
• Length: 25 m

Our verdict

If you need a reliable, high-performance consolidation point cable that doesn't compromise on safety or speed, this Logilink 25-metre Cat.6A S/FTP cable is a solid choice. It brings future-proofing and peace of mind to any network installation.
