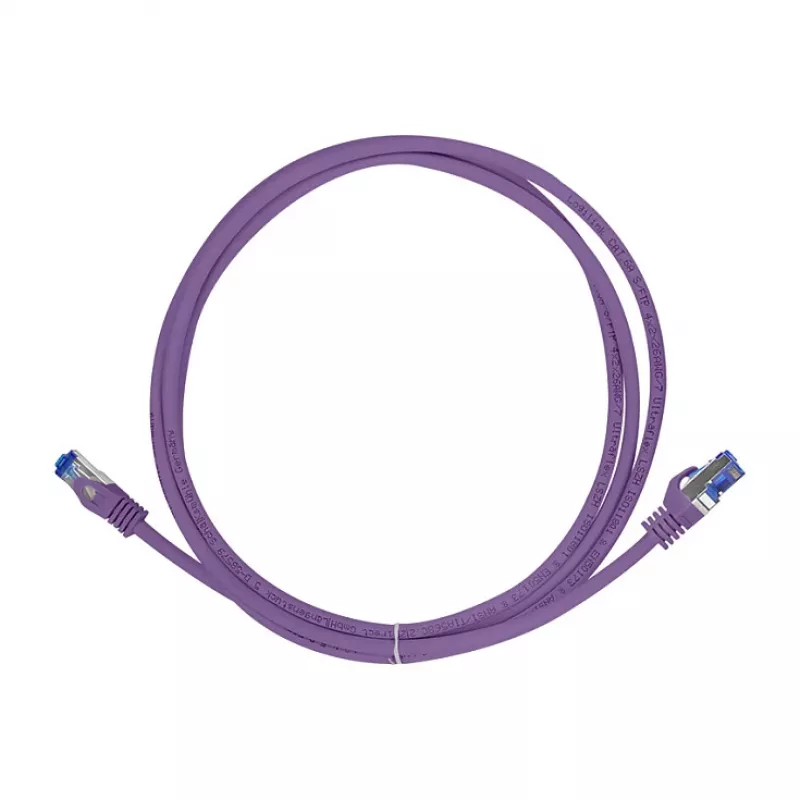

LogiLink Cat.6A S/FTP Ultraflex Patch Cable, Purple, 0.25 m, GHMT Certified

Experience 10 Gigabit Ethernet speeds with this ultra-flexible Cat.6A patch cable, engineered for high-density environments where reliability and performance are non-negotiable. The S/FTP shielding and LSZH jacket ensure signal integrity and safety, while the GHMT certification guarantees compliance with the strictest standards.

Overview

The LogiLink C6A019S is a premium Cat.6A patch cable measuring 0.25 meters, perfect for short-distance connections in server rooms, data centers, and office networks. Its purple color (RAL 4005) allows for easy identification and organization. The cable features stranded 26 AWG conductors for flexibility, gold-plated RJ45 connectors for corrosion resistance, and a snagless boot to protect the locking tab.

What stands out

• Ultraflex design: exceptional flexibility for tight bends and high-density patching.
• GHMT certified: independently tested for Cat.6A performance up to 500 MHz.
• LSZH jacket: low smoke and halogen-free for enhanced fire safety.
• Gold-plated contacts (50 µm): ensure reliable, long-lasting connections.
• Snagless boot: prevents accidental disconnection and damage.

Technical details

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Stranded, AWG 26/7
• Length: 0.25 m
• Connectors: RJ45 male to male, 8P8C, gold-plated
• Wiring: TIA/EIA 568B, 1:1
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbps (10GBASE-T)
• Outer diameter: approx. 6.0 mm
• Operating temperature: -20°C to +60°C
• Flammability: IEC 60332-1, IEC 61034, IEC 60754-2
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A top-tier Cat.6A patch cable that combines performance, safety, and flexibility. Its GHMT certification and LSZH jacket make it ideal for professional installations where compliance and reliability are critical. The short 0.25 m length is perfect for neat, high-density patching.
