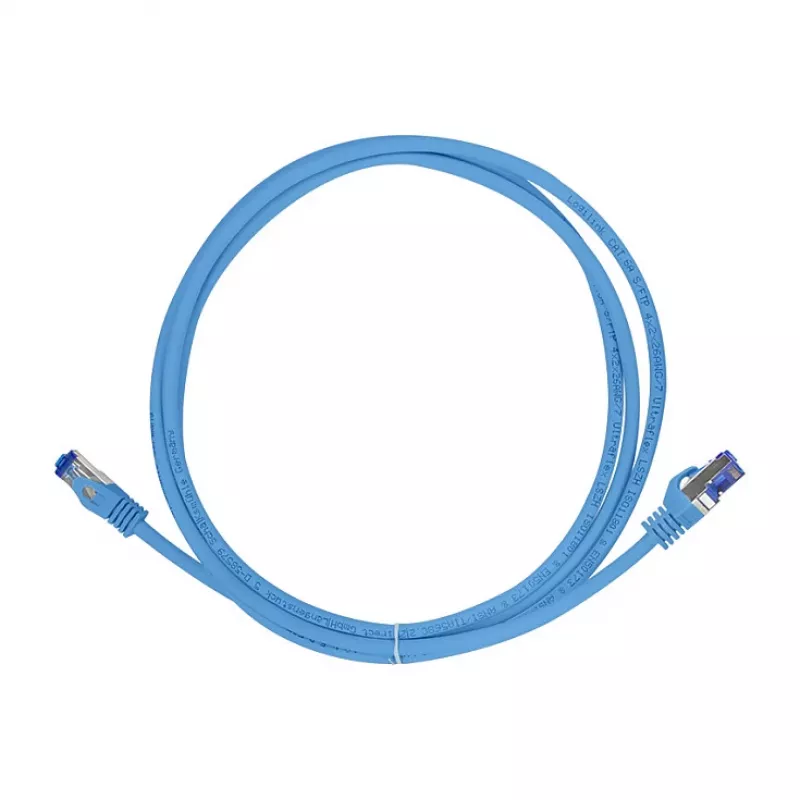

LogiLink Cat.6A S/FTP Ultraflex Patch Cable, GHMT Certified, Blue, 0.5 m

Most Cat.6A cables are stiff and difficult to route, but the LogiLink C6A026S uses Ultraflex technology to stay flexible without sacrificing 10-Gigabit performance. Its S/FTP shielding with individually foiled pairs and an overall braid virtually eliminates alien crosstalk, making it a reliable choice for dense server racks and high-speed workstations.

Highlights

• Cat.6A performance up to 500 MHz and 10 Gbps
• S/FTP shielding: PIMF (pairs in metal foil) plus overall braid
• Ultraflex LSZH jacket for easy installation in tight spaces
• Gold-plated RJ45 connectors with snagless boots
• GHMT certified and compliant with ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10

In daily use

This 0.5 m patch cable is ideal for connecting servers, switches, and patch panels in data centers or wiring closets. The stranded 26 AWG copper conductors provide excellent flexibility, while the LSZH jacket reduces toxic smoke in case of fire. The blue color helps with quick identification in structured cabling systems.

Full specifications

• Length: 0.5 m
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PIMF)
• Conductor: 100% copper, AWG 26/7 stranded
• Connector: RJ45 male to RJ45 male, 50 µm gold-plated contacts
• Jacket: LSZH (halogen-free)
• Outer diameter: approx. 6.2 mm
• Bandwidth: up to 500 MHz
• Data rate: 10GBASE-T (10 Gbps)
• Wiring: TIA/EIA 568B
• Operating temperature: -20 °C to +60 °C
• Certifications: GHMT, ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10

Final note

For professionals who need a certified, high-performance Cat.6A link in a very short distance, this LogiLink cable delivers both reliability and ease of handling.
