Load balancing module Zaptec Sense bundle, white, 150 A max, 5.5 V, Wi‑Fi 802.11b/g/n, indoor, 58.6×58.4×25.1 mm

Zaptec Sense is a compact indoor load balancing module that monitors total power consumption and automatically distributes available electrical capacity to electric vehicle charging. The white unit supports up to 150 A and a rated voltage of 5.5 V, connects via Wi‑Fi 802.11b/g/n and is designed to prevent circuit overloads while improving simultaneous charging capability in homes, shared housing and commercial properties.

Advantages

Zaptec Sense reduces the risk of tripped circuit breakers by continuously adapting EV charging to the building's overall power use. The device makes it possible to use more of the available power for charging, enabling faster charging and simultaneous charging of multiple vehicles while lowering peak electricity costs through smarter load distribution.

Suitable for (tasks / use cases)

• Single-family houses and cabins
• Multi‑unit dwellings, housing associations and apartments
• Shared parking and commercial properties with limited main supply

Key specifications

• Maximum current: 150 A
• Rated voltage: 5.5 V
• Connectivity: Wi‑Fi 802.11b/g/n
• Dimensions: 58.6 × 58.4 × 25.1 mm
• Designed for indoor installation
• Low standby consumption: 1.5 W

How to use

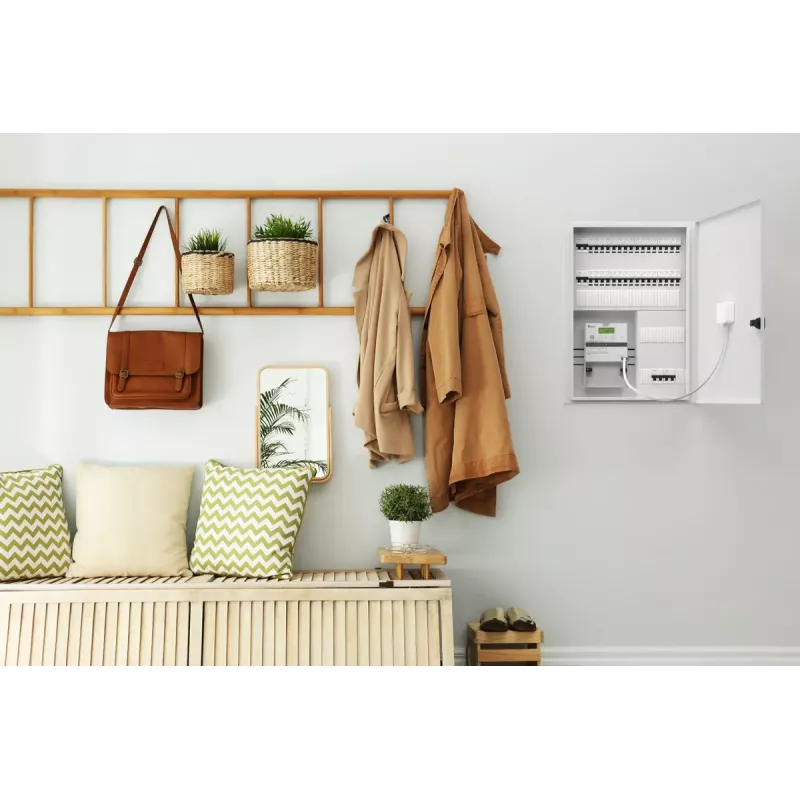

Install Zaptec Sense close to the building's fuse box and connect it to the local Wi‑Fi network. Once mounted and powered, the module continuously measures total power consumption and automatically adjusts charging output of connected electric vehicle chargers so that available capacity is used without overloading the circuit. Configuration and monitoring are carried out through the compatible Zaptec interface.

Recommendations

Place the device near the distribution board for accurate measurements and ensure stable Wi‑Fi coverage. Use Zaptec Sense where multiple chargers or high household loads risk exceeding the available supply to maximise charging speed while preventing circuit trips.
