Liquid CPU cooler DeepCool LQ240 White with 240mm aluminum radiator, 2x120mm RGB fans, 41cm tubes

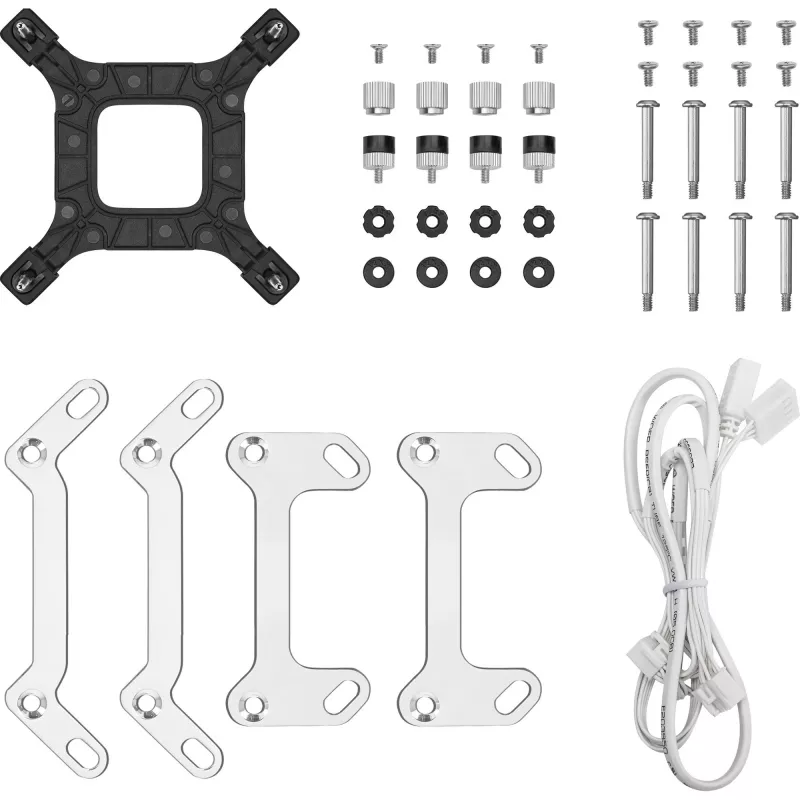

DeepCool LQ240 White is a liquid CPU cooler with a 240 mm aluminum radiator, two 120×25 mm RGB fans and a 41 cm dual-tube assembly. The cooler is intended for processor cooling and includes mounting kit, screws and CPU brackets. Total kit weight is 1.53 kg.

Advantages

The aluminum radiator and dual 120 mm fans provide increased heat dissipation for sustained CPU loads. Fans feature Fluid Dynamic Bearing for longer life and quieter operation. PWM support allows automatic fan speed control between 500 and 2150 RPM, while RGB illumination uses a 5 V LED connector for multi-colour lighting. The compact pump with 3-pin connector runs at up to 3400 RPM to maintain coolant circulation.

Suitable for

• Casing builds requiring a 240 mm radiator
• Overclocked or high‑performance CPUs needing improved cooling
• Systems where PWM fan control and RGB lighting are desired
• Standard Intel LGA 1151 socket installations

Key specifications

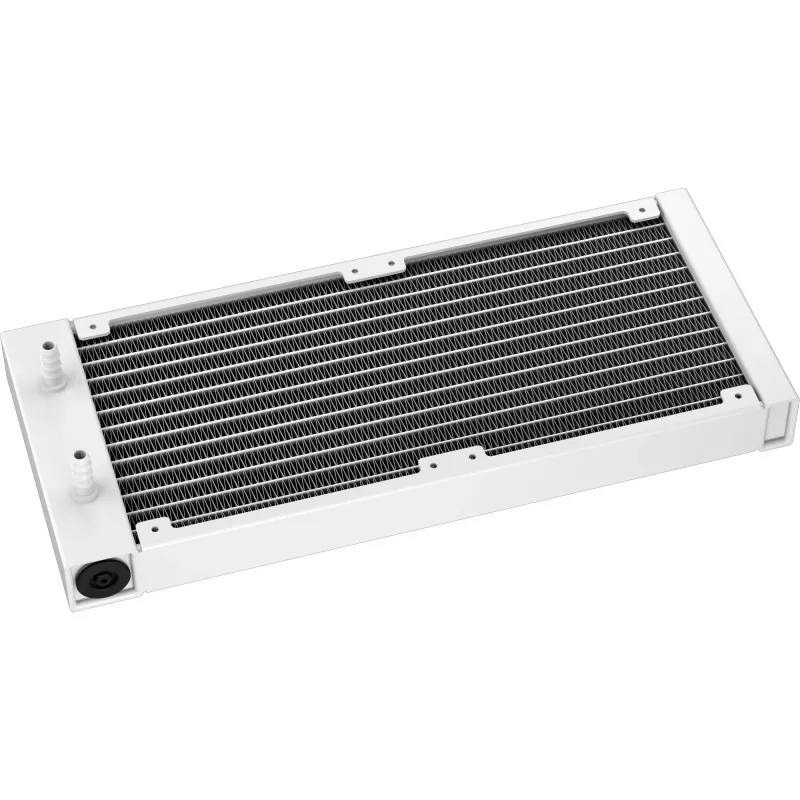

• Radiator: 240 mm, aluminum

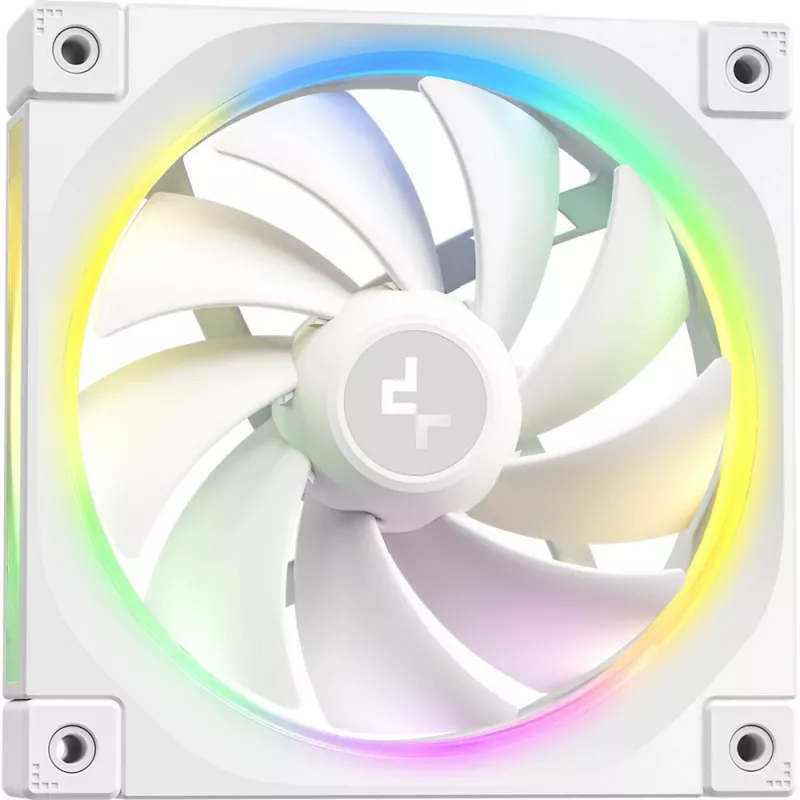

• Fans: 2 × 120 × 25 mm RGB, Fluid Dynamic Bearing
• Fan speed range: 500–2150 RPM (PWM)
• Maximum airflow: 55 CFM
• Maximum air pressure: 2.82 mmH2O
• Maximum fan noise: 32 dB
• Pump speed: 3400 RPM
• Pump and LED connectors: 3‑pin (pump), 3‑pin LED (RGB, 5 V)
• Tube length: 41 cm
• Weight: 1.53 kg
• Fan voltage/current/power: 12 V / 0.15 A / 1.8 W
• Pump voltage/current/power: (LED 5 V) pump current 350 mA, pump power 4.2 W
• LED power consumption: pump 2.4 W; fan LEDs 2.75 W

How to use

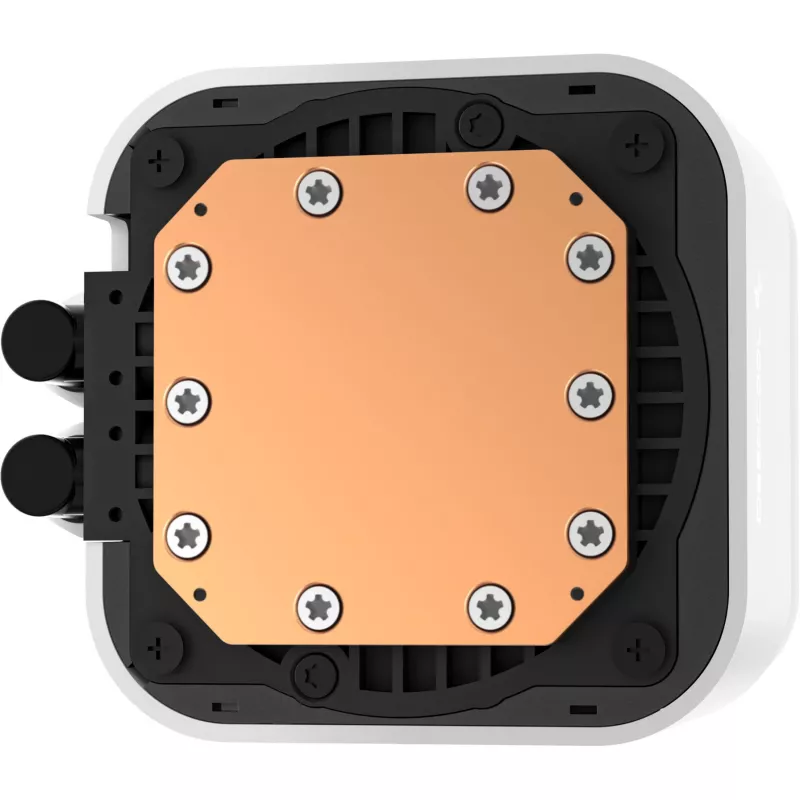

Install the radiator in a compatible 240 mm mounting location inside the PC case and attach the two 120 mm fans to the radiator in the recommended airflow orientation. Mount the pump/block assembly onto the CPU using the supplied CPU brackets and screws, following the motherboard socket alignment for LGA 1151 or other supported sockets. Connect the pump to a 3‑pin pump header and the fans to PWM fan headers; connect the 5 V LED connector to a compatible RGB header for illumination control. Verify all fittings and cable connections before powering on the system.

Recommendations

Place the radiator where it receives cool intake or exhaust airflow as appropriate for your case layout; ensure fans are set to PWM control for automatic speed adjustment. Dispose of the product and packaging according to local electronic waste regulations.
