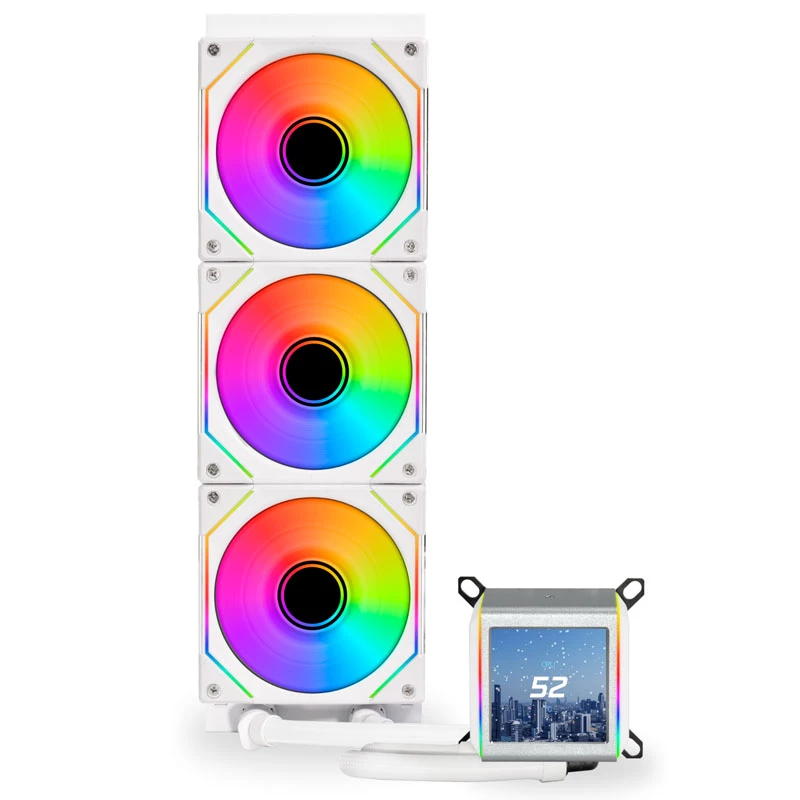

Liquid cooling kit Lian Li GALAHAD II LCD SL-INF 36 cm White

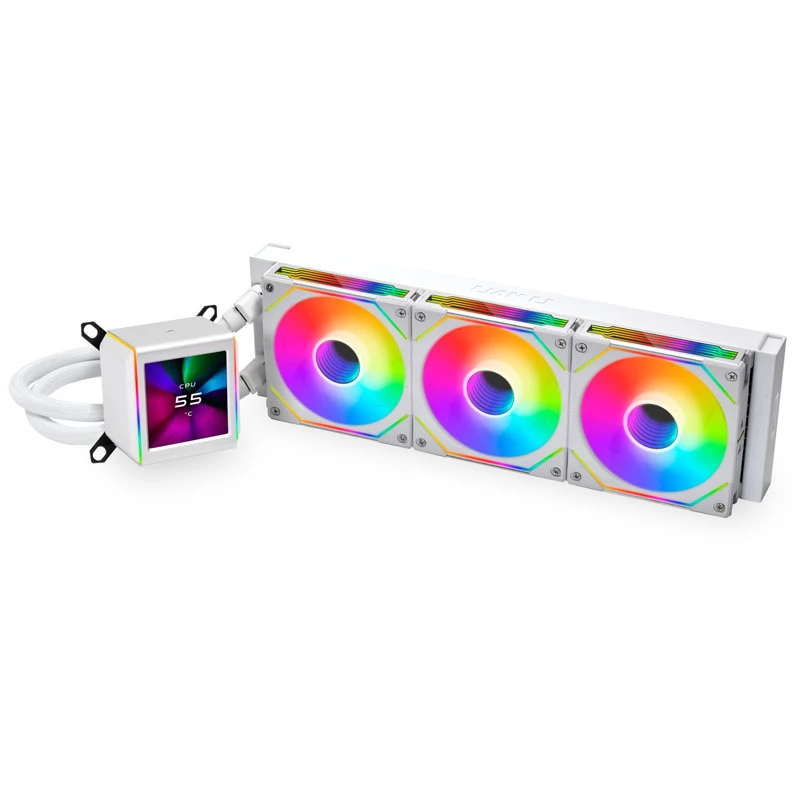

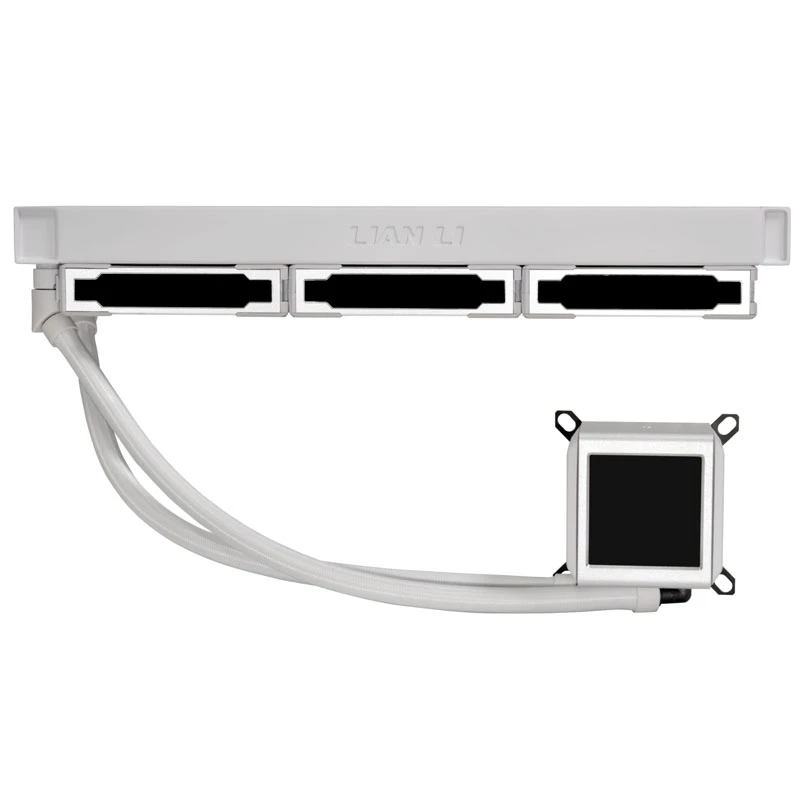

The Lian Li GALAHAD II LCD SL-INF 36 cm White is a closed-loop liquid cooling kit designed for desktop CPUs. It features a 360 mm radiator with pre-installed SL-INF fans in white, an LCD display built into the pump block, and support for a wide range of modern Intel and AMD sockets. The kit uses an 8th-generation Asetek pump with a 3-phase motor, a larger cold plate for current processors, and a high-density 30 mm aluminum radiator with 20 FPI fins to balance airflow and thermal performance.

Advantages

This kit combines a customizable LCD screen with multi-layer display options and L-Connect 3 software control, allowing text, images, videos and dynamic circular or background effects to be shown on the pump block. The pre-installed SL-INF fans use fluid dynamic bearings for quieter, durable operation, and can be daisy-chained to simplify cabling. Installation is made flexible by a 45° rotatable tubing connector and includes Velcro straps for tube management. Built-in controller connectivity (USB Type-C and PWM) enables unified control of screen, lighting and fan/pump speeds. The product is covered by a 6-year warranty, with additional leakage protection terms up to 3 years after inspection.

Suitable for

• High-performance gaming or workstation PCs requiring efficient CPU cooling
• Custom builds where an LCD pump display and synchronized ARGB lighting are desired
• Systems using modern Intel or AMD sockets (including LGA 1700 and AM5)

Key specifications

• Type: Liquid cooling kit

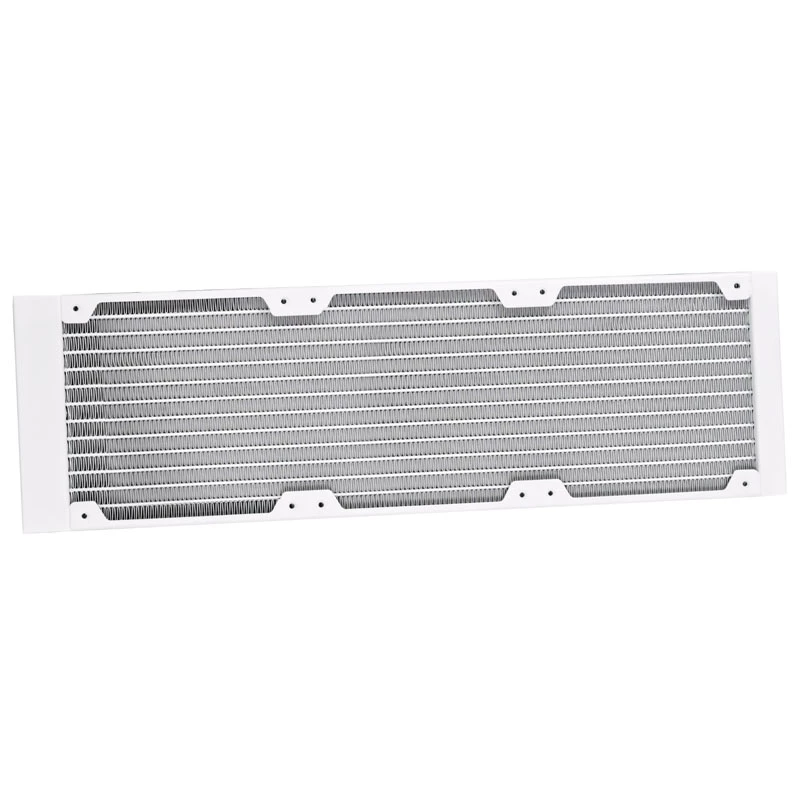

• Radiator thickness: 30 mm
• Fan size: 120/140 mm configuration on a 360 mm radiator (SL-INF fans)
• Fan bearing: Fluid Dynamic Bearing
• Radiator fins: 20 FPI (single-wave fins)
• Pump: 8th Gen Asetek, 3-phase motor, up to 3600 RPM
• Supported sockets: LGA 1150/1151/1155/1156/1200/1700, AM4, AM5
• Color: White
• Connectivity: USB Type-C (to 9-pin header), 4-pin PWM for pump, ARGB daisy-chainable fans
• Warranty: 6 years (fans and controller included); leakage damage evaluation up to 3 years

How to use

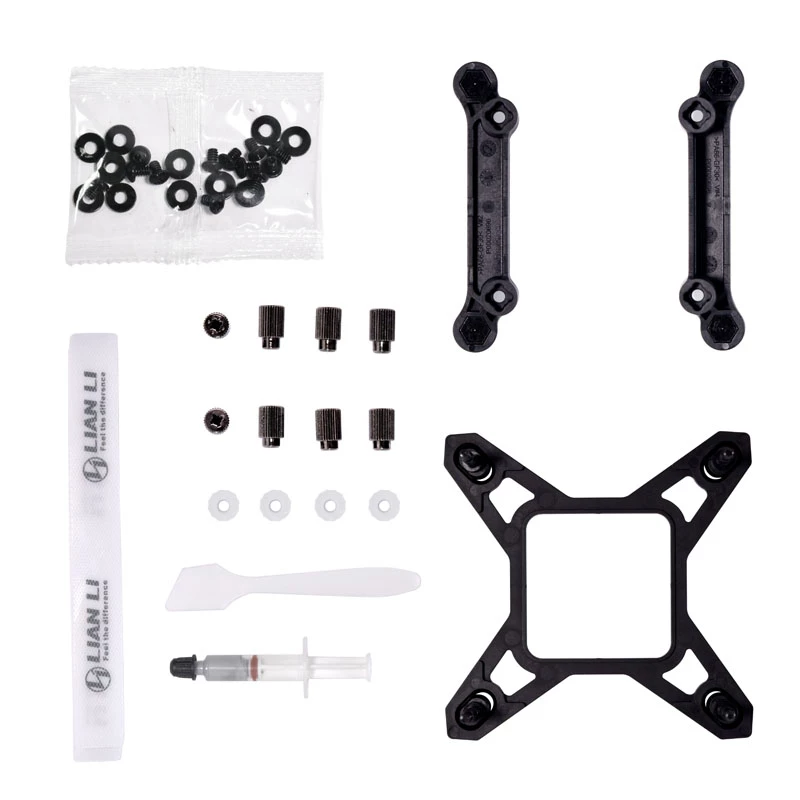

Mount the radiator and fans in your case according to available space for a 360 mm radiator. Install the pump block on the CPU using the provided sockets and fasteners for your processor socket. Orient the pump block with the tubes facing downward where possible to help achieve optimal performance. Connect the pump 4-pin PWM cable to a 12V pump header and the USB Type-C cable to a motherboard 9-pin USB header to enable the LCD and L-Connect 3 control. Connect the ARGB fans to the pump/controller using the included daisy-chain cables and route cables using the supplied Velcro straps.

Recommendations

Use L-Connect 3 to configure the LCD layers, circular and background effects, and to set fan and pump curves. For best cooling performance, ensure good case airflow and place the radiator where intake or exhaust airflow is least obstructed. Periodically check mounting and cable connections and follow the warranty procedure if any leakage is suspected.
