Liquid cooling kit Enermax LIQMAXFLO SR

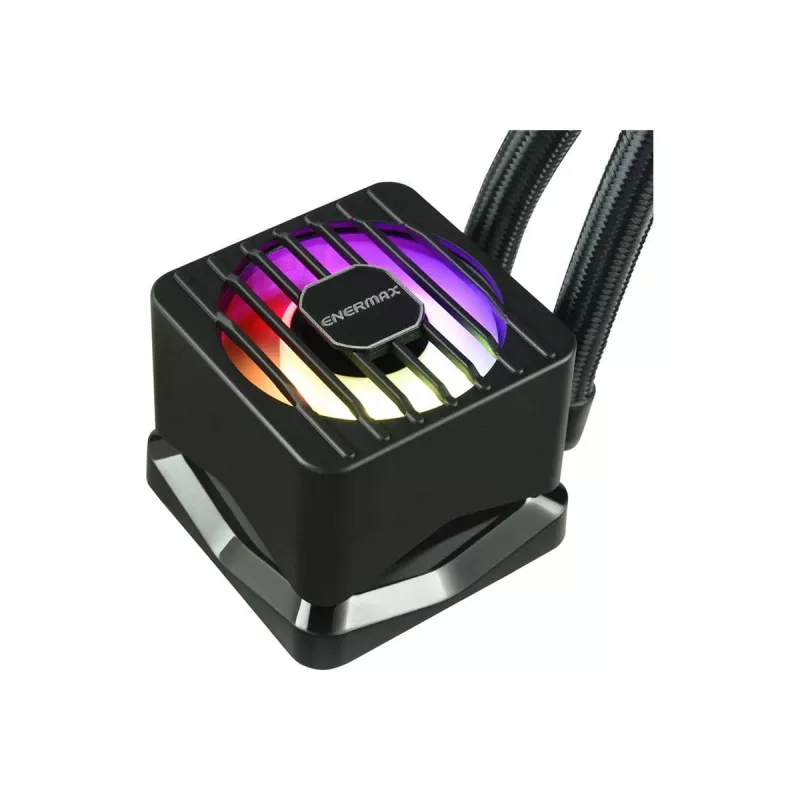

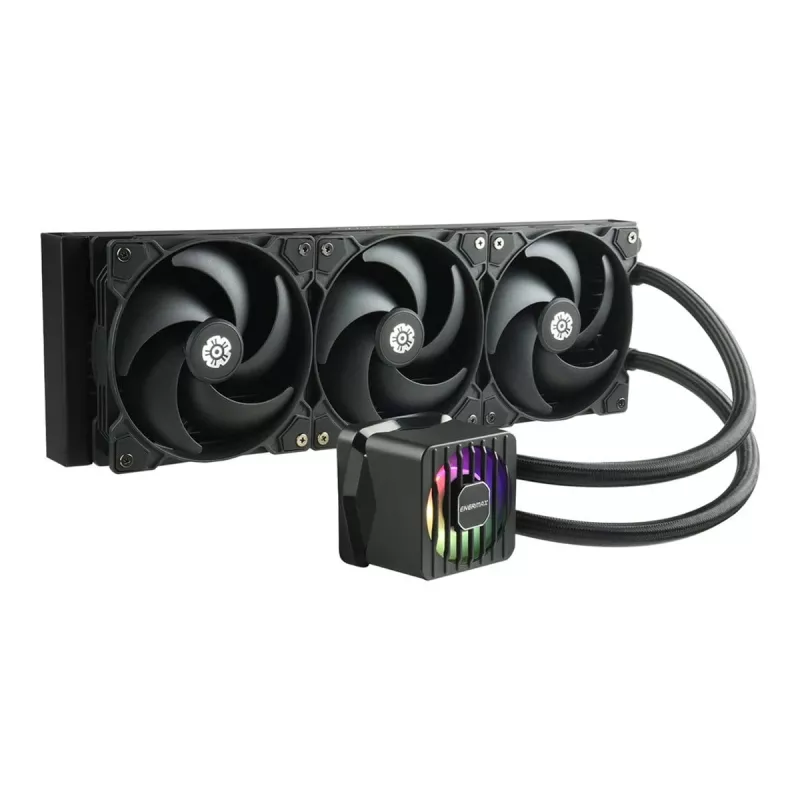

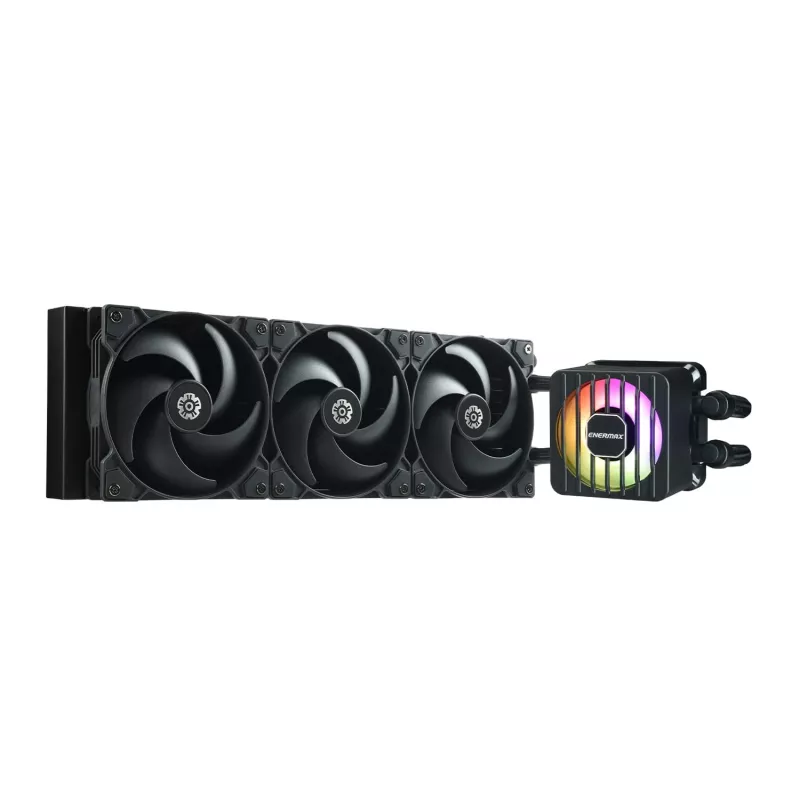

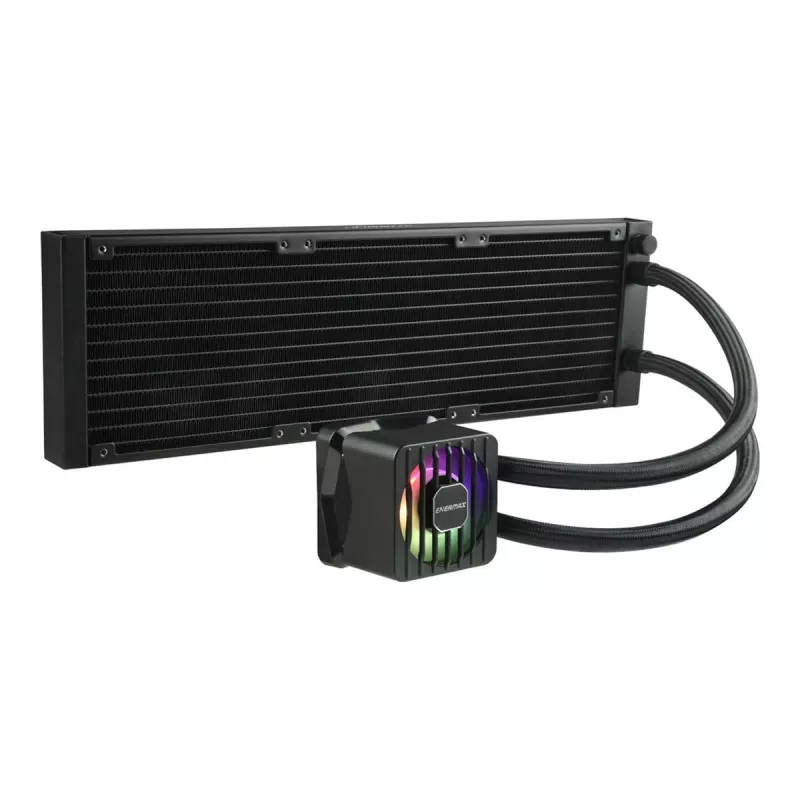

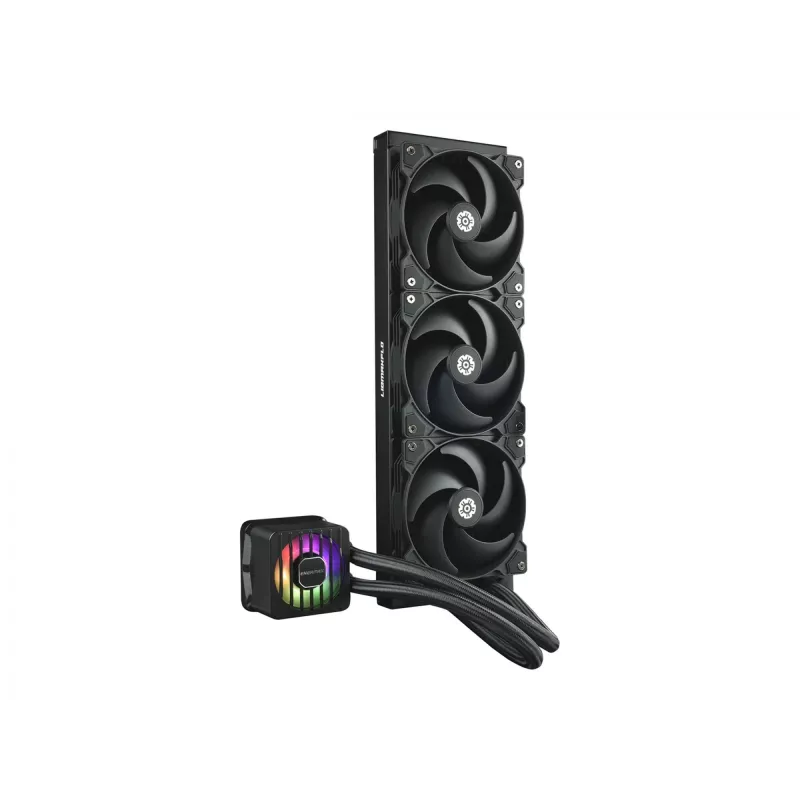

The Enermax LIQMAXFLO SR is an all-PWM liquid cooling kit designed for high-performance CPU cooling. It features ENERMAX’s Dual-Chamber Xtreme PWM pump, a 120 mm Silent Flow radiator fan, and an additional 60 mm VRM fan with ARGB lighting. The kit supports a wide range of Intel and AMD sockets and includes pre-applied Dow Corning® TC-5888 thermal grease plus an extra tube for installation.

Advantages

The Dual-Chamber Xtreme pump uses Shunt-Channel technology with an enlarged coolant inlet and optimized flow to increase pump pressure by up to 30% and flow rate by up to 20%, improving cooling efficiency. The Silent Flow radiator fan combines a reinforced 3 mm blade, a 5-blade "Angle of Attack" design, and an F.D.B. bearing to deliver high airflow and static pressure while keeping noise low (max ~25.47 dB(A)). The 60 mm VRM fan operates up to 3,000 RPM to provide targeted airflow around motherboard VRMs and features magnetic, rotatable pump cover compatibility and ARGB lighting for synchronized effects.

Suitable for

• High-performance desktop systems with Intel Core (including 14th gen) or AMD Ryzen CPUs
• Overclocked builds requiring additional VRM cooling
• Multitasking setups: gaming while streaming, recording, or 4K video conferencing

Key specifications

• Type: Liquid cooling kit (AIO)
• Fan diameter: 120 mm (radiator fans)
• Radiator fan speed: 500–1,800 RPM
• VRM fan speed: 500–3,000 RPM
• Pump speed: 1,200–3,000 RPM (PWM)
• Max listed TDP: 370 W
• Supported sockets: Intel LGA1700/1200/115x/2066/2011/2011-3/1366; AMD AM5/AM4/AM3+/FM2+/FM1
• Pre-applied thermal grease: Dow Corning® TC-5888; extra tube included
• Colour: Black

How to use

Install the radiator and fans inside your PC case according to the case and motherboard layout, mount the pump block onto the CPU socket following the supplied manual, and connect the PWM headers for pump, radiator fan(s), and VRM fan to the appropriate motherboard headers to enable automatic speed control. Remove protective film from the pre-applied thermal grease if present, align the pump block over the CPU, and secure it with the provided mounting hardware. Configure ARGB lighting through compatible motherboard software if desired.

Recommendations

For best results, ensure proper case airflow and place radiator fans to create a balanced intake/exhaust configuration. Use the motherboard’s PWM control to let pump and fans adjust based on temperature. When overclocking, monitor VRM temperatures and adjust VRM fan profile as needed; replace the thermal grease only if reuse is necessary or after long-term use.
