Line/Point level Bosch Quigo Plus Maximum range 12 m Self-levelling range ±4°

The Bosch Quigo Plus Line/Point level is a compact alignment tool designed for indoor leveling and layout tasks. With a maximum visible range of 12 m and a self-levelling range of ±4°, it projects a straight reference line and a plumb point to support precise positioning. The device offers an accuracy of 0.8 mm/m and runs on AAA batteries, providing practical runtime for routine DIY and professional jobs. A tripod thread and compact housing make placement and transport straightforward.

Advantages

The Bosch Quigo Plus combines line and point projection in a single tool, enabling both horizontal alignment and vertical plumb marking without frequent repositioning. Self-levelling within ±4° speeds setup and reduces manual adjustments, while the 0.8 mm/m accuracy supports precise alignment for fittings and installations. Its battery operation and compact size increase portability, and the integrated tripod thread allows stable mounting for extended measurements.

Suitable for

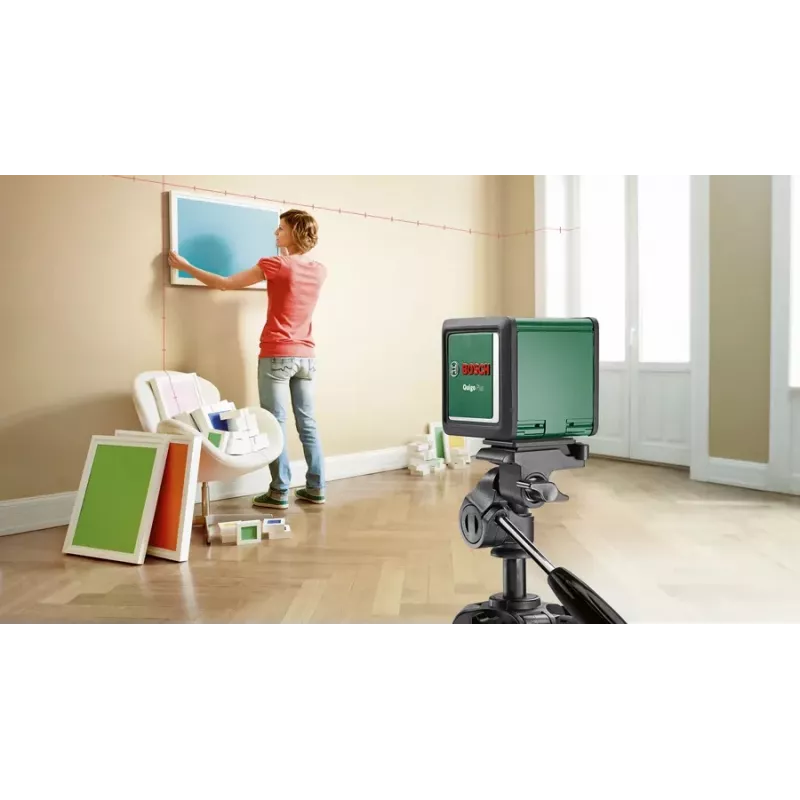

• Hanging picture frames and mirrors
• Installing shelves, cabinets and tiles
• Marking plumb and level reference lines for carpentry work
• Aligning fixtures and fittings in renovation projects

Key specifications

• Projection type: combined horizontal line and vertical plumb point
• Maximum visible range: 12 m
• Self-levelling range: ±4°
• Accuracy: 0.8 mm/m
• Power source: AAA batteries (battery runtime approximately 5 hours)
• Mounting: tripod thread for stable attachment
• Housing: compact, portable design

How to use

Place the Bosch Quigo Plus on a flat surface or attach it to a tripod using the integrated thread. Switch the device on and allow it to self-level; when the tool is within ±4° it will automatically adjust the projection to a true horizontal/vertical reference. Use the projected line and plumb point to mark positions on the wall or surface, then secure fixtures or make alignments according to your measurements. If the unit indicates it is out of level, reposition or manually adjust the mounting until the self-levelling function engages. Replace AAA batteries as needed to maintain consistent runtime.

Recommendations

For best results, use the Quigo Plus in indoor environments with moderate lighting to ensure the projected line and point remain visible. Mounting on a tripod is recommended for extended tasks to reduce movement and maintain consistent alignment. Regularly check battery level before starting critical jobs and store the device in a protective case to avoid damage to the optics and housing.
