Lindy HDMI 1.4 to DisplayPort 1.1 Converter

The Lindy HDMI to DisplayPort Converter (model 38146) converts an HDMI 1.4 signal to DisplayPort 1.1, enabling connection of HDMI-equipped sources such as PCs, laptops, Blu-ray players or gaming consoles to DisplayPort monitors. The compact, white converter provides Plug and Play installation and transmits both video and multichannel audio.

Advantages

This converter supports video resolutions up to Ultra HD 4K where supported by the connected devices and carries up to 7.1 channel surround audio. Its female HDMI Type A and DisplayPort interfaces ensure compatibility with common HDMI sources and DisplayPort displays. The small, lightweight design makes it easy to add a second monitor for extended desktop use and to carry when travelling.

Suitable for

• Connecting laptops or PCs with HDMI output to DisplayPort monitors
• Using gaming consoles or Blu‑ray players with DisplayPort displays
• Extending desktop workspace with an additional DisplayPort monitor

Key specifications

• Model: Lindy 38146
• Input connector: HDMI Type A (female)
• Output connector: DisplayPort
• HDMI version: 1.4
• DisplayPort version: 1.1
• Supported video: up to Ultra HD 4K (dependent on source and display)
• Audio: up to 7.1 channel surround
• Colour: White

How to use

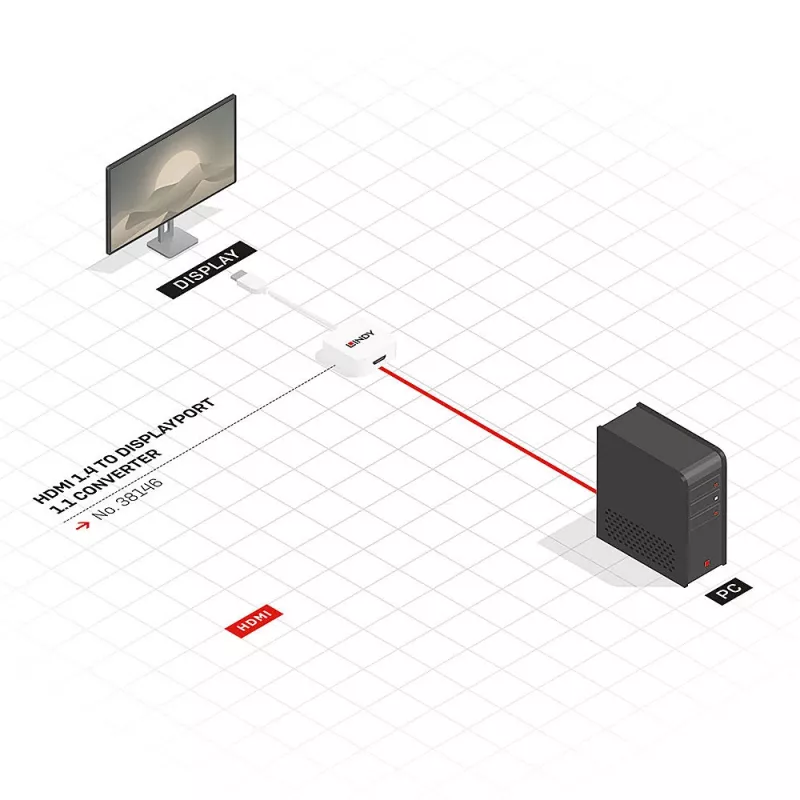

Connect the HDMI source (PC, laptop, console or player) to the converter’s HDMI Type A female port using a standard HDMI cable, then connect the converter’s DisplayPort end to the monitor. Power on the source and display; the devices should negotiate the best compatible resolution automatically. No drivers are required for basic video and audio passthrough.

Recommendations

For optimal results, use high-quality HDMI and DisplayPort cables and ensure the source device and monitor firmware support the intended resolutions and audio formats. If the display does not show an image, check cable seating and try reducing the output resolution on the source device.
