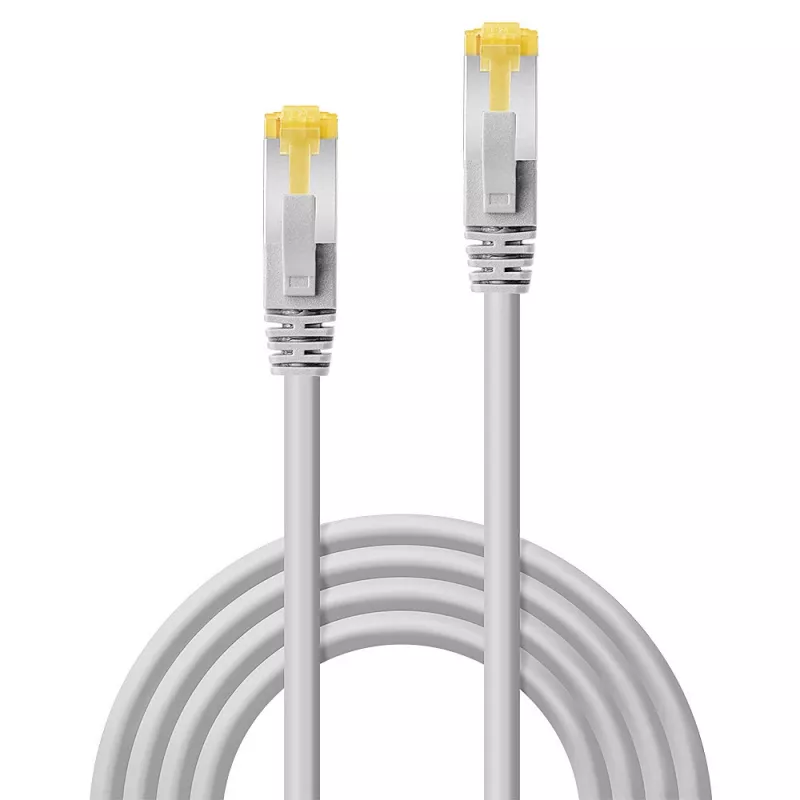

Lindy 7.5m RJ45 S/FTP LSZH Network Cable, Grey

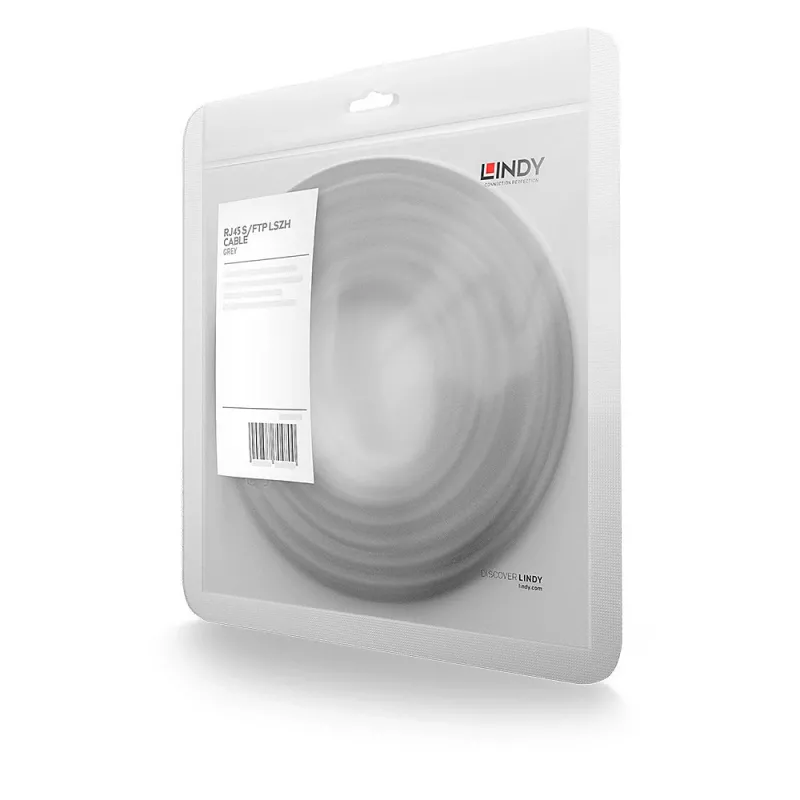

The Lindy 7.5m RJ45 S/FTP LSZH Grey network cable uses Cat.7 cable material with S/FTP (total braided shield plus individually foil‑shielded pairs) and supports operating frequencies up to 600 MHz. It is intended for data centres, server rooms and rack-mounted network or control cabinets, and is suitable for Ethernet links up to 10GBase‑T. The cable is manufactured and tested to ISO/IEC 11801 and is supplied individually in a polybag. The grey LSZH jacket is low‑smoke, halogen‑free and suitable for indoor installations.

Advantages

Gold‑plated RJ45 contacts provide corrosion resistance and reliable conductivity over long periods. The S/FTP construction minimizes crosstalk and external interference for stable high‑speed transmission. A snagless strain‑relief design protects the connector latch during installation and removal. The combination of Cat.7 cable material and RJ45 connectors enables compatibility with existing RJ45 network equipment while meeting high frequency requirements.

Suitable for

• 10GBase‑T Ethernet links in data centres and server rooms
• Rack‑mounted network and control cabinets
• High‑speed workstation and switch connections
• Indoor installations requiring low‑smoke, halogen‑free jacket

Key specifications

• Cable standard: Cat.7 cable material (marked: Cat.6A S/FTP patch cords with 600MHz raw cable)
• Shielding: S/FTP (braided overall shield + foil on each pair)
• Bandwidth / frequency: up to 600 MHz

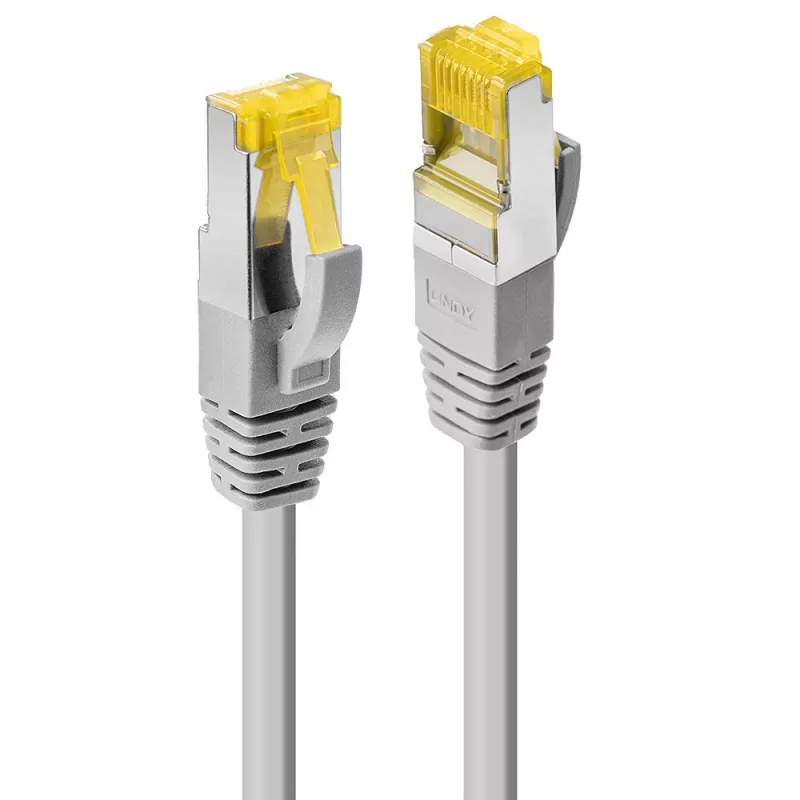

• Connectors: RJ‑45 to RJ‑45, gold‑plated contacts
• Length: 7.5 m
• Jacket: LSZH (low smoke, zero halogen), colour: grey
• Standards: manufactured and tested to ISO/IEC 11801

How to use

Connect one RJ45 plug to your network device (switch, router, server or workstation) and the other RJ45 plug to the corresponding port. Ensure both connectors are fully inserted until the latch engages. Route the cable to avoid sharp bends and areas of strong electromagnetic interference. For rack use, secure the cable with appropriate ties or cable management to prevent strain on the connectors.

Recommendations

Use this S/FTP LSZH cable for indoor high‑speed Ethernet runs where low smoke and halogen‑free materials are required; avoid exposure to direct sunlight and maintain bend radius recommendations from the equipment vendor to preserve performance.
