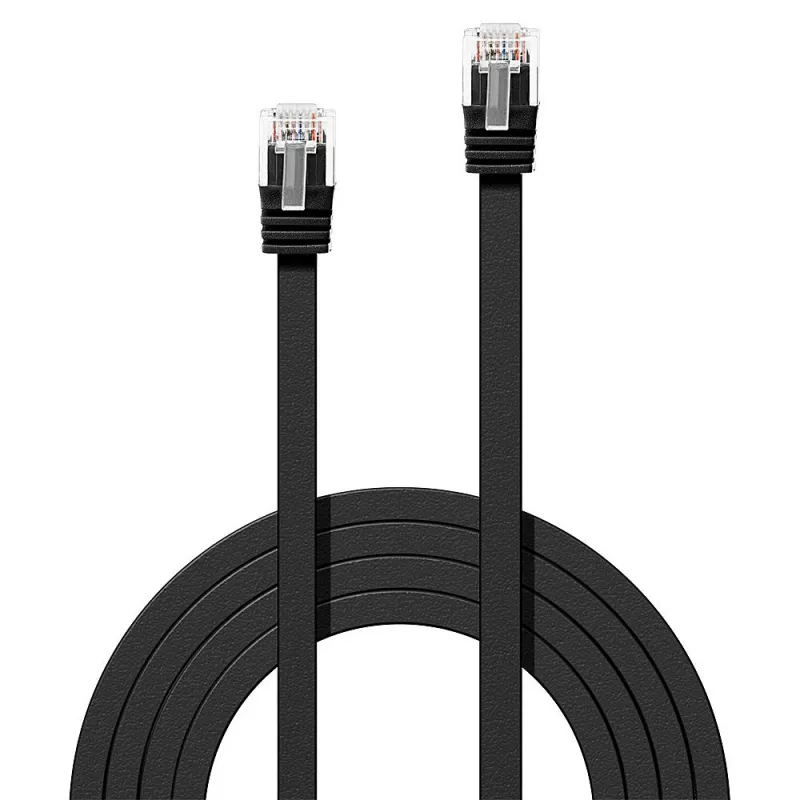

Lindy 47525 networking cable Black 10 m Cat6 U/UTP (UTP)

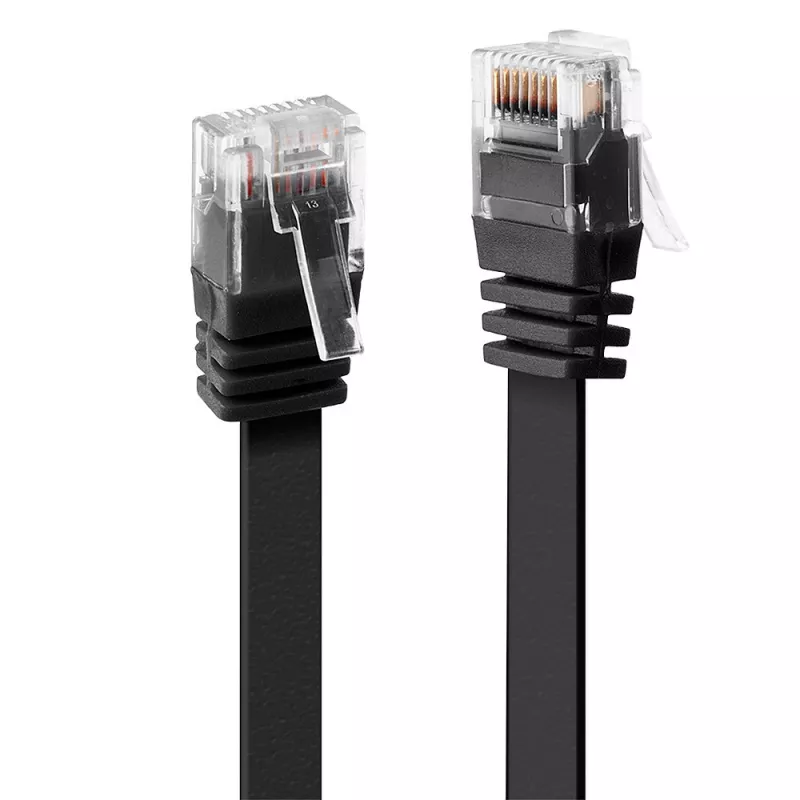

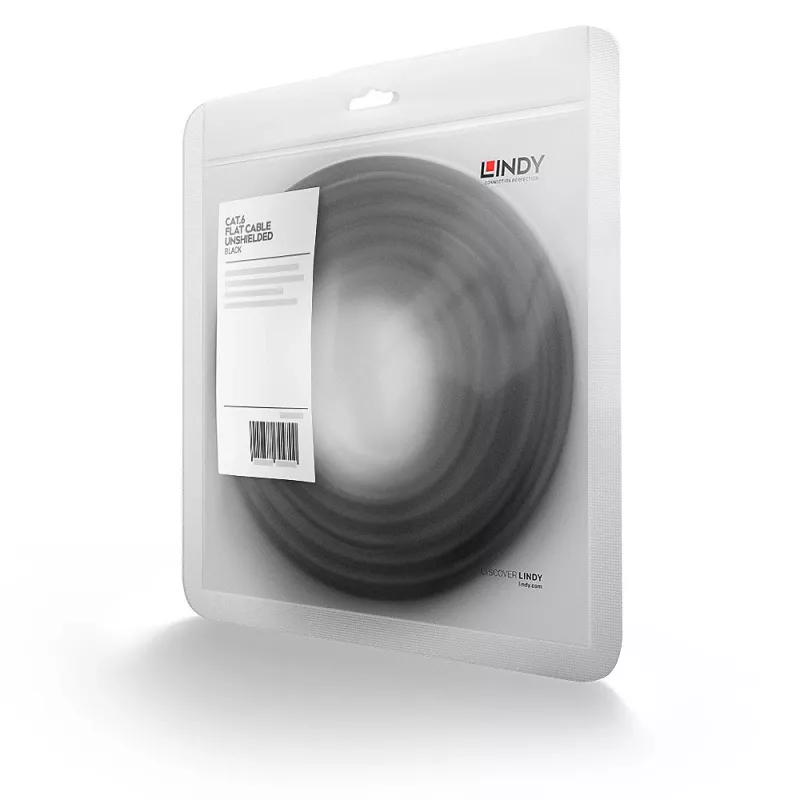

Cat.6 U/UTP flat network cable with gold-plated RJ-45 contacts, designed for operating frequencies up to 250 MHz and compatible with Ethernet standards up to 1GBase-T. The flat ribbon construction and very flexible, thin design make this Lindy cable suitable for installation in restricted or limited spaces. The product is manufactured and tested to ISO/IEC 11801 and is supplied individually in a polybag.

Advantages

The Cat6 unshielded (U/UTP) design delivers the required electrophysical performance (NExT, FExT and related parameters) to support Gigabit Ethernet while avoiding shielding. Gold-plated contacts provide corrosion-resistant, reliable connections over time, and a snagless strain-relief design protects the connector latch during installation and removal. The flat, flexible ribbon profile eases routing in tight spaces and under carpets or along skirting boards.

Suitable for

• Gigabit Ethernet (1GBase-T) connections
• Home and office networks with limited cable routing space
• Patching between switches, routers and wall sockets
• Installations under carpets, along skirting boards or inside narrow conduits

Key specifications

• Standard: Cat.6 (ISO/IEC 11801 compliant)
• Topology: U/UTP (unshielded)
• Bandwidth / frequency: up to 250 MHz
• Connector type: RJ-45 to RJ-45, gold-plated contacts
• Cable form factor: flat ribbon, very flexible
• Length: 10 m
• Data rates supported: suitable for 10/100/1000Base-T (Gigabit Ethernet)
• Colour: Black

How to use

Connect one RJ-45 end to your network device (switch, router, modem) and the other end to the target device or wall jack. Ensure both connectors are fully inserted until the latch clicks to secure the connection. Route the flat cable through available gaps, along skirting, or under carpeting as needed, avoiding sharp bends with radii smaller than the cable thickness to maintain performance. If cutting or terminating the cable, follow standard Cat6 wiring and testing procedures.

Recommendations

For optimal performance, avoid running the cable parallel to power lines for long distances and keep bends gentle. Test installs with a cable tester supporting Cat6 parameters after termination or long installations.
