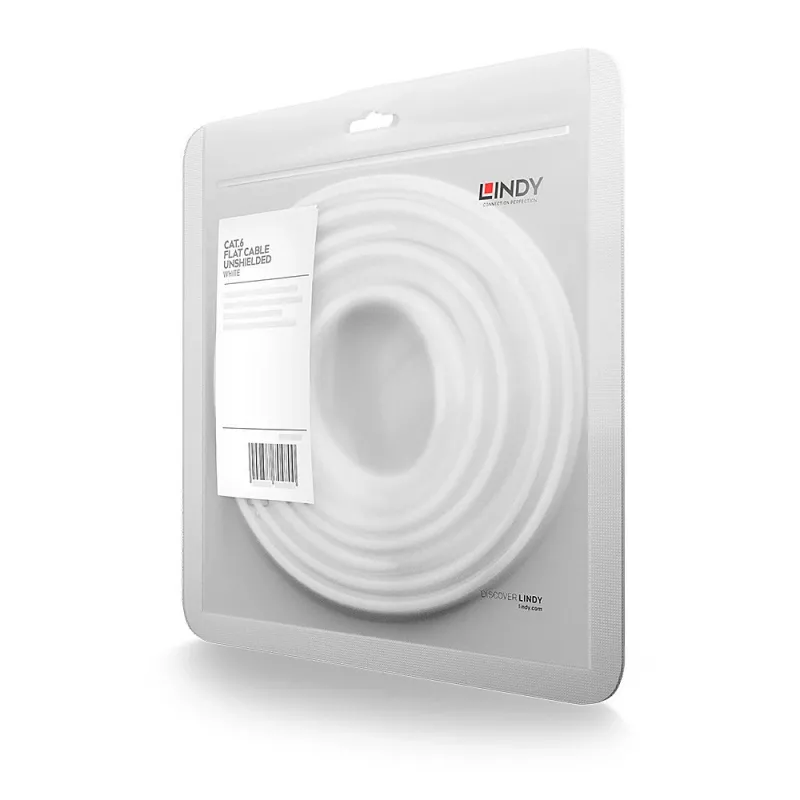

Lindy 47501 networking cable White 1 m Cat6 U/UTP (UTP)

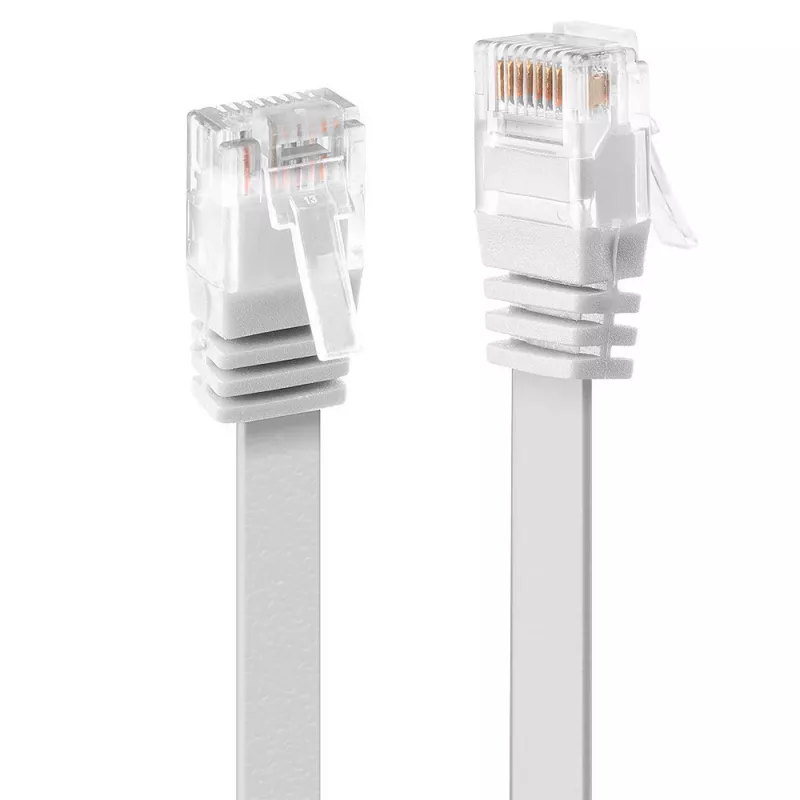

Cat.6 U/UTP flat network cable supporting bandwidths up to 250 MHz and designed for Ethernet standards up to 1GBase-T. The cable features RJ-45 connectors on both ends and is supplied in a 1 m white length appropriate for short-distance device connections. Manufactured and tested to ISO/IEC 11801, this unshielded U/UTP Cat.6 ribbon cable uses optimized electrical parameters to enable Gigabit Ethernet performance despite the lack of shielding.

Advantages

The flat ribbon construction is very thin and flexible, allowing installation in restricted or limited spaces. Gold-plated contacts provide corrosion-resistant, reliable connections over time. A snagless strain-relief design protects the connector latch during installation and removal. Each cable is individually packaged in a polybag.

Suitable for

• Short-distance connections between network devices (1 m)
• Environments with limited installation space or tight cable routes
• Gigabit Ethernet applications up to 1GBase-T
• Structured cabling compliant with ISO/IEC 11801 at frequencies up to 250 MHz

Key specifications

• Category: Cat.6 U/UTP
• Bandwidth / Frequency: up to 250 MHz
• Length: 1 m
• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Cabling technology: 10/100Base-T(X), supports 1GBase-T
• Colour: White
• Standards: ISO/IEC 11801
• Packaging: individual polybag

How to use

Connect one RJ-45 connector to the network port of a device and the other to a switch, router or wall outlet. Ensure connectors are fully inserted until the latch clicks. Route the flat cable along tight pathways or under flooring where space is limited, taking care not to bend the cable sharply at the connector entry.

Recommendations

For optimal performance, avoid running the cable parallel and close to high-power electrical lines. Do not crease or excessively twist the flat ribbon; maintain gentle bends with a radius that does not stress the connector. Store and install at room temperature and replace any cable showing visible damage.
