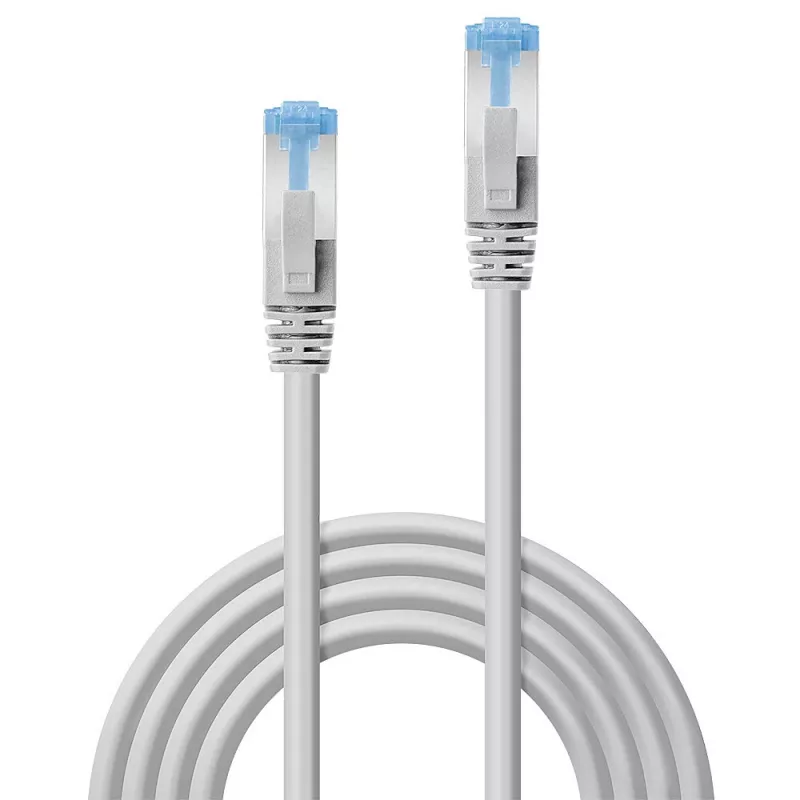

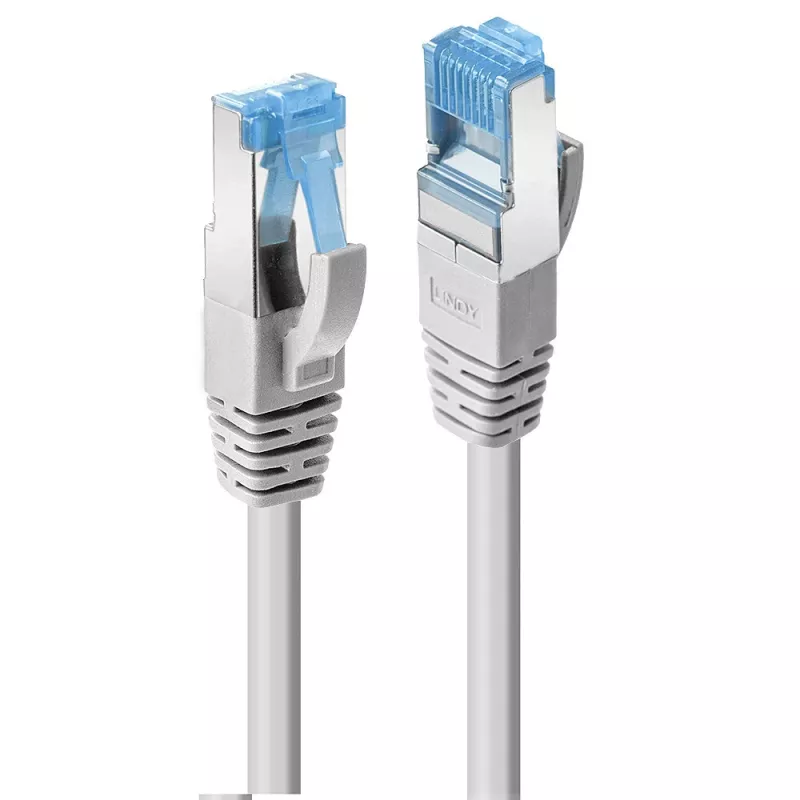

Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey

Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
60 mo.
Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
R138
Cat.6A S/FTP network cable supporting bandwidths up to 500 MHz and designed for Ethernet standards up to 10GBase-T. The cable features overall braid shielding plus foil shields for each individual pair, is manufactured and tested to ISO/IEC 11801, and is supplied individually in a polybag.Advantages... Read More
Stock 321 Code 769107 Brand LINDY Model 47132 Warranty 5 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Cat.6A S/FTP network cable supporting bandwidths up to 500 MHz and designed for Ethernet standards up to 10GBase-T. The cable features overall braid shielding plus foil shields for each individual pair, is manufactured and tested to ISO/IEC 11801, and is supplied individually in a polybag.

Advantages

The gold-plated contacts provide reliable, corrosion-resistant connections over long periods. A snagless strain-relief design protects the connector latch during installation and removal. The LSZH halogen-free sheath reduces smoke and eliminates toxic halogen emissions, making the cable suitable for use in public spaces.

Key specifications

  • Category: Cat.6A (S/FTP)
  • Bandwidth: up to 500 MHz
  • Ethernet support: up to 10GBase-T (10 Gigabit Ethernet)
  • Shielding: braid overall shield + foil for individual pairs (S/FTP)
  • Standard: manufactured and tested to ISO/IEC 11801
  • Contacts: gold-plated
  • Sheath: LSZH (halogen-free)
  • Packaging: individually polybagged

How to use

Install the cable following standard structured cabling practices and compatible connector terminations for Cat.6A. Ensure proper handling of the braid and pair foils during termination to maintain shielding continuity. Use the snagless connector design to avoid damaging the latch while plugging and unplugging. Verify performance with appropriate testing equipment to confirm 10GBase-T operation up to 500 MHz.

Key Highlights
  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A S/FTP PIMF, LSZH
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 1 m
  • RJ-45 Male
  • RJ-45 Male
  • Cat6a S/FTP (S-STP)
  • 1000 Mbit/s
  • Plug and Play
  • Grey
Specifications
AWG wire size
27
Bend radius (min)
7.2 cm
Cable class
Ea
Cable length
1 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6a
Cabling technology
10/100/1000Base-T(X)
Certification
RoHS, REACH, UL
Conductor material
Copper
Connector 1
RJ-45
Connector 1 dimensions (WxDxH)
11.6 x 21.5 x 8.3 mm
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 dimensions (WxDxH)
11.6 x 21.5 x 8.3 mm
Connector 2 gender
Male
Connector contacts plating
Nickel/Gold
Connector shield material
Aluminium
Connector shielding
Yes
Data transfer rate
1000 Mbit/s
Frequency
500 MHz
Harmonized System (HS) code
84733080
Jacket material
Low smoke zero halogen (LSZH)
Nominal attenuation
49.3dB/100m @ 500MHz
Operating temperature (T-T)
-10 - 60 °C
Outer diameter
6 mm
Package type
Polybag
Plug and Play
Yes
Product colour
Grey
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 75 °C

Leaflet

Open Leaflet
