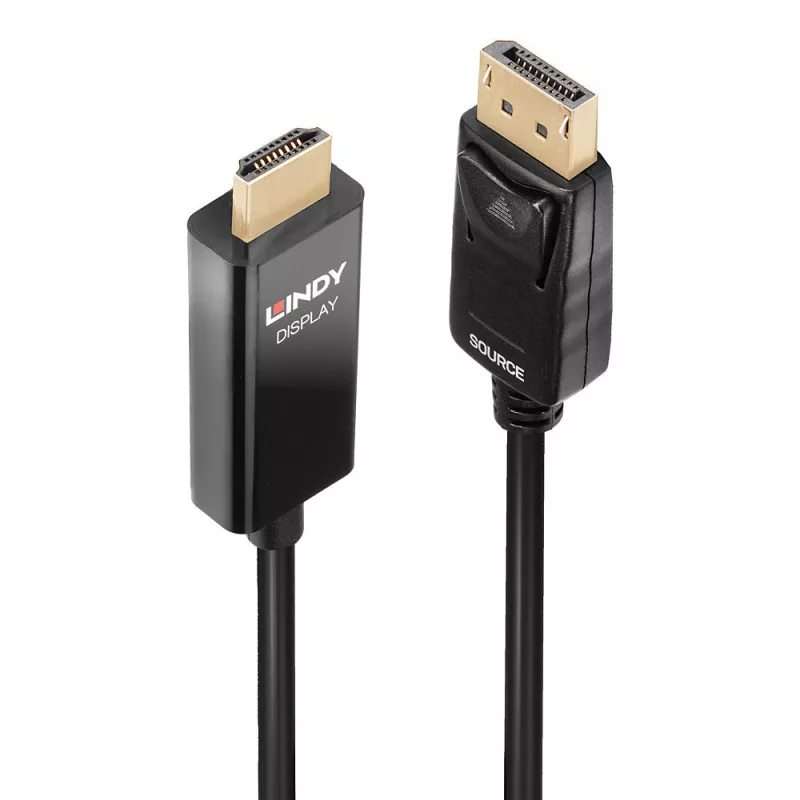

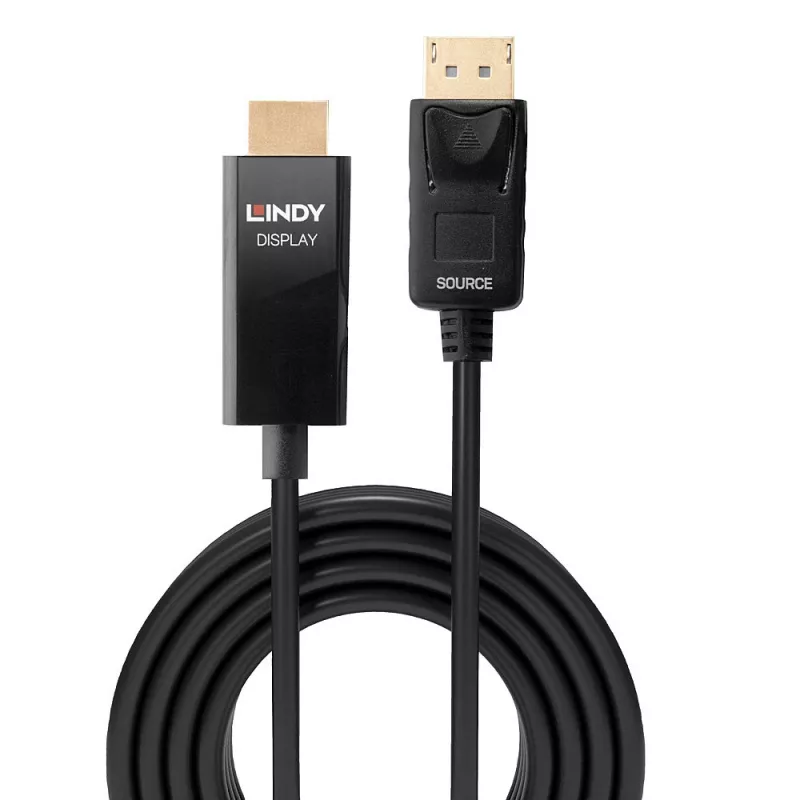

Lindy 1m Active DisplayPort to HDMI Cable with HDR

The Lindy Active DisplayPort to HDMI Cable (1 m) provides active conversion of DisplayPort video signals to HDMI for use with monitors, TVs and projectors. The cable contains an integrated chipset to improve compatibility with both dual-mode and non-dual-mode graphics sources and supports resolutions up to 4096x2160 at 60 Hz with High Dynamic Range (HDR). It features a DisplayPort connector on one end and an HDMI connector on the other and is intended for connecting DP-equipped desktops, laptops and graphics cards to HDMI displays without separate adapters.

Advantages

This active 1 m cable ensures reliable signal conversion through a built-in chipset that broadens device compatibility and avoids the need for additional adapters. It supports 4K@60Hz and HDR for improved contrast and colour fidelity and carries uncompressed multi-channel audio when the source device outputs audio over DisplayPort. The cable’s support for AMD Eyefinity enables multi-monitor and ultra-wide display setups when used with compatible graphics cards.

Suitable for

• Connecting a desktop or laptop DisplayPort output to an HDMI monitor or TV
• 4K@60Hz video playback with HDR-capable displays
• Retail displays, meeting rooms, home cinema and sports-bar video systems
• Multi-monitor setups using AMD Eyefinity-compatible graphics cards

Key specifications

• Cable length: 1 m
• Connector 1: DisplayPort
• Connector 2: HDMI
• Maximum resolution: up to 4096 x 2160 @ 60 Hz
• HDR support: Yes
• Audio: Supports uncompressed multi-channel audio if source outputs audio over DisplayPort
• Colour: Black
• Brand / MPN / EAN: Lindy / 40925 / 4002888409254

How to use

Connect the DisplayPort end to the DP output on your laptop, desktop or graphics card and connect the HDMI end to the target HDMI display or projector. Ensure the source device is set to output video (and audio if required) over DisplayPort. If the display does not automatically select the HDMI input, choose the correct HDMI input using the display’s input/source menu. For multi-monitor configurations, configure display arrangement and resolution in your operating system or graphics driver settings.

Recommendations

Audio over HDMI is available only when the source graphics adapter supports audio output over DisplayPort. Some integrated graphics adapters (for example certain Mobile Intel chipsets) do not support audio over DisplayPort even if HDMI audio drivers are present; in those cases use a separate audio connection. Also note that some NVIDIA drivers may not provide full 4:4:4 chroma at 4K@60Hz when converting from DP/mDP to HDMI and may fall back to 4:2:2.
