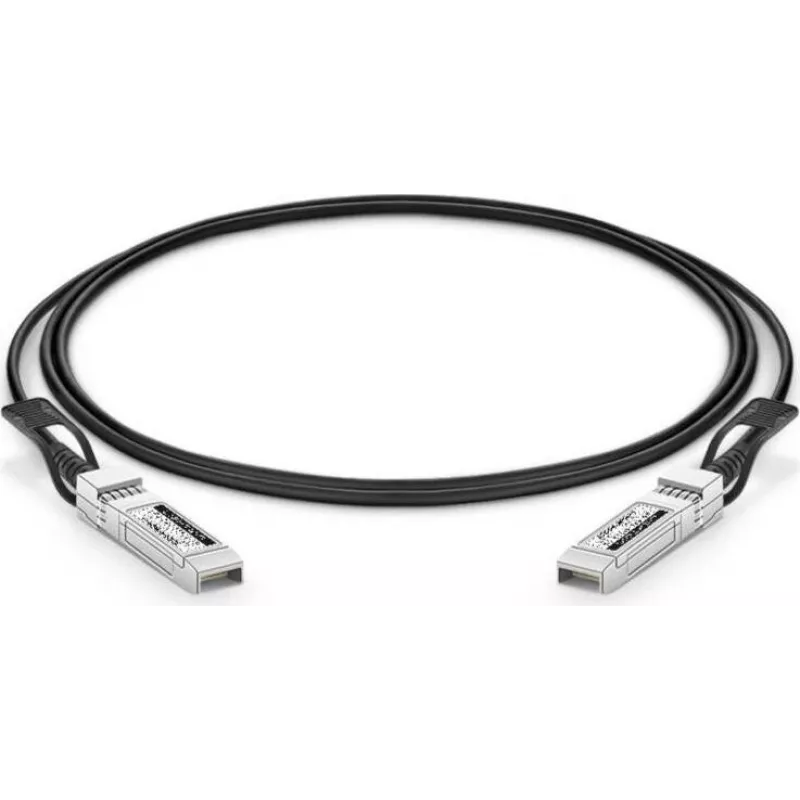

Lightwin 25G SFP28 to SFP28 Direct Attach Copper Cable, 3m, Passive, 30AWG, LSZH LWO-DAC-SFP28-3M

Experience 25 Gigabit Ethernet connectivity with this Lightwin SFP28 Direct Attach Copper (DAC) cable, delivering a full 25 Gbps data rate over a 3-meter passive copper link. Engineered for data centers, server-to-switch uplinks, and SAN environments, it offers a cost-effective, low-latency alternative to optical transceivers while maintaining full MSA compliance and multi-vendor compatibility.

Overview

The Lightwin LWO-DAC-SFP28-3M is a passive Direct Attach Copper cable terminated with SFP28 connectors on both ends. It supports 25GbE per IEEE 802.3by, with a characteristic impedance of 100 Ohm and minimal power consumption below 0.5W. The 30AWG copper conductors ensure signal integrity over the 3-meter length, while the LSZH jacket provides safety in high-density installations. Hot-pluggable and built to operate in temperatures from 0°C to 70°C, this cable is ready for demanding network environments.

What stands out

• 25 Gbps data rate for high-bandwidth applications
• Passive design: no external power required, ultra-low latency
• LSZH jacket for low smoke and zero halogen emissions
• Hot-pluggable SFP28 connectors for easy installation
• Multi-vendor compatible with MSA-compliant equipment

Technical details

• Cable Type: Direct Attach Copper (DAC)
• Connectors: SFP28 to SFP28
• Data Rate: 25 Gbps (25 Gigabit Ethernet)
• Length: 3 meters
• Transceiver Type: Passive
• Conductor Material: Copper, 30AWG
• Protocol: IEEE 802.3by (25GbE)
• Impedance: 100 Ohm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W
• Compliance: SFP28 MSA, multi-vendor compatible

Our verdict

A reliable and efficient 25G DAC cable that combines performance, safety, and value for high-speed short-reach connections.
