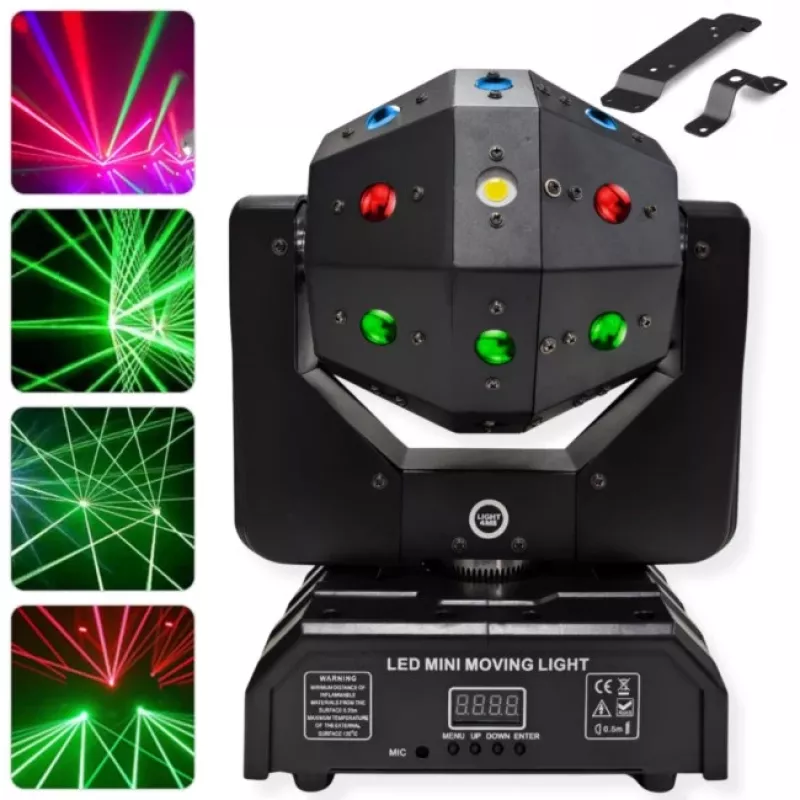

LIGHT4ME ATLAS Moving Multi-Effect Light 4-in-1 LED

Lighting designers and mobile entertainers often struggle with bulky rigs that demand multiple fixtures to achieve a full light show. The LIGHT4ME ATLAS solves this by combining beam, wash, laser, and strobe effects into one compact moving head, delivering professional versatility without the complexity of separate units.

Who is it for

This multi-effect moving head is ideal for DJs, bands, clubs, event production companies, and rental houses that need a powerful, all-in-one lighting solution. Whether you're creating dynamic aerial effects, vibrant colour washes, sharp laser patterns, or high-energy strobe bursts, the ATLAS covers it all from a single fixture.

Main features

• 4-in-1 design: 30W white LED beam with gobo wheel, 6x 8W RGBW wash LEDs, red/green laser, and 12x 0.5W white SMD strobe LEDs
• Wide coverage: 540° pan and 270° tilt for full room movement
• Flexible control: DMX512 (16/18 channels), auto, sound active, and master/slave modes
• Gobo wheel with 7 fixed gobos plus open, with gobo shake for dynamic textures
• Colour wheel with 7 colours plus open, including rainbow effect for smooth transitions
• Linear electronic dimming 0-100% and variable speed strobe for precise effects
• LED display with 4-button menu for easy configuration
• IEC power in/out and 3-pin XLR in/out for simple daisy-chaining

Specifications

• Light source 1 (beam/gobo): 1x 30W white LED
• Light source 2 (wash): 6x 8W RGBW 4-in-1 LEDs
• Light source 3 (laser): red 100mW, green 30mW
• Light source 4 (strobe): 12x 0.5W white SMD LEDs
• DMX channels: 16/18 selectable
• Control modes: DMX512, auto, sound active, master/slave
• Pan: 540°, Tilt: 270°
• Gobo wheel: 7 fixed gobos + open, gobo shake
• Colour wheel: 7 colours + open, rainbow effect
• Dimmer: 0-100% linear electronic
• Strobe: variable speed electronic
• Power consumption: max 100W
• Power supply: AC 100-240V, 50/60Hz
• DMX connectors: 3-pin XLR in/out
• Power connectors: IEC in/out
• Display: LED with 4 buttons

Tips

For best coverage, mount the ATLAS on a truss or stand at a height that allows its full pan and tilt range. Use the sound active mode for quick, beat-synced shows without a DMX controller, or integrate it into a larger DMX setup using the 16-channel mode for simplified control. Always secure the fixture with a safety cable when rigging overhead.
