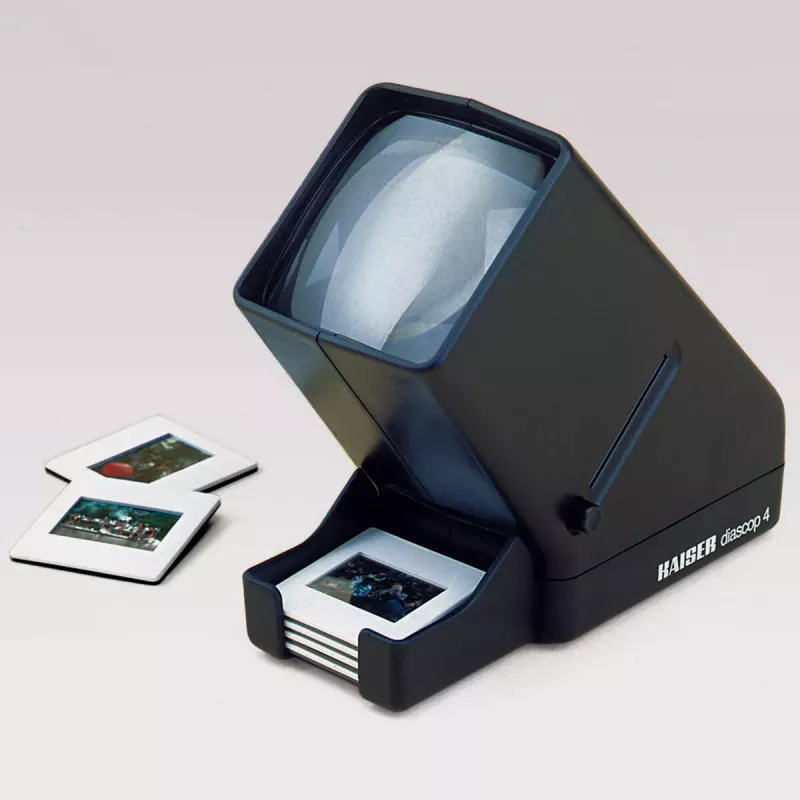

Light table KAISER diascop 4 — plastic, black, max operating distance 1.6 m, 80×160×170 mm

KAISER diascop 4 is a compact light table designed for viewing slides, transparencies and small film originals. Constructed from black plastic with dimensions of 80×160×170 mm, this slide viewer provides a stable illuminated surface and a maximum operating distance of 1.6 m for convenient screening and inspection. The unit includes an integrated lamp and a three-position magnifying double lens to accommodate framed slides, 5×5 cm (2×2 in.) mounts and uncut film strips in protective sleeves, as well as a drop chute with a collecting tray for processed material.

Advantages

The device combines a built-in 15 W E14 pear-shaped lamp and a 76×76 mm (3×3 in) lens area to deliver even illumination and sufficient viewing area for small originals. Its compact plastic housing keeps the unit lightweight and portable while the included cord of approximately 1.8 m (6 ft) provides flexible placement on a desk or worktable. The three magnifying double lens positions permit comfortable inspection of framed slides and film strips without additional accessories.

Suitable for

• Inspection and selection of photographic slides and mounted transparencies
• Screening of uncut film strips in protective sleeves
• Archival sorting and quality control of small originals
• Educational use for demonstrating slide content and detail

Key specifications

• Material: black plastic housing
• Dimensions (W×H×D): 80 × 160 × 170 mm (3.1 × 6.3 × 6.7 in)
• Maximum operating distance: 1.6 m
• Lamp: 15 W, E14 pear-shaped bulb
• Lens viewing area: 76 × 76 mm (3 × 3 in)
• Magnification: three-position magnifying double lens for framed slides and 5×5 cm (2×2 in) mounts
• Cord length: approx. 1.8 m (6 ft)
• Features: drop chute with collecting tray for processed items

How to use

Place the KAISER diascop 4 on a stable, horizontal surface and connect the cord to a compatible mains socket. Install a 15 W E14 pear-shaped bulb if not preinstalled, and allow a short warm-up time for even illumination. Position the slide or film strip over the 76×76 mm viewing lens and select the appropriate magnifying lens position for framed slides, 5×5 cm mounts or uncut strips. Use the drop chute to feed items for collection in the tray as required. Always handle originals by their edges and avoid placing wet or dirty items directly on the viewing surface.

Recommendations

For consistent viewing results, use a correctly rated 15 W E14 pear-shaped bulb and allow the lamp to reach stable brightness before evaluating colour and detail. Keep the viewing lens and surrounding surface clean and free of dust; use a soft, lint-free cloth for maintenance. When storing film strips or slides, use protective sleeves or mounts to prevent scratches while using the drop chute and collecting tray for organised handling.
